SAP ABAP Table UPF_YS_TECHF (Planning: Technical Error)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷ BW-PLA-BPS (Application Component) Business Planning and Simulation
⤷ UPF (Package) SEM-BPS: Planning Functions
⤷ BW-PLA-BPS (Application Component) Business Planning and Simulation
⤷ UPF (Package) SEM-BPS: Planning Functions
Basic Data
Table Category | INTTAB | Structure |

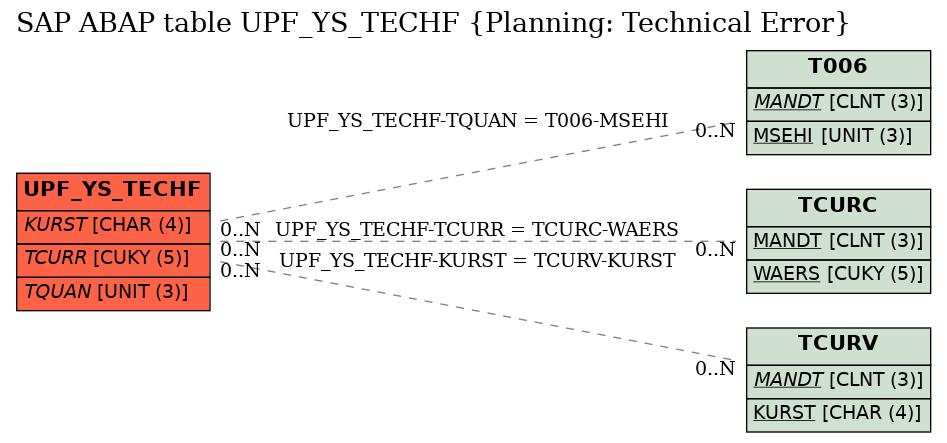

Structure | UPF_YS_TECHF | Table Relationship Diagram |
Short Description | Planning: Technical Error |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | RATIO | UPF_Y_RATIO | FDNAME | CHAR | 30 | 0 | Planning: Key figure | * | |
2 | REVAL | UPF_Y_REVAL | DEC | 7 | 3 | Planning: Revaluation Percentage Rate | |||
3 | DSTRB | UPF_Y_DSTRB | DEC | 6 | 3 | Planning: Distribution Factor | |||
4 | PRSTR | UPF_Y_PRSTR | UPF_D_PRSTR | CHAR | 2 | 0 | Forecast Strategy | ||
5 | ALPHX | ALPHA | GLATT | DEC | 3 | 2 | Basic value smoothing using alpha factor | ||
6 | BETAX | BETA1 | GLATT | DEC | 3 | 2 | Trend value smoothing using the beta factor | ||
7 | GAMMX | GAMMA | GLATT | DEC | 3 | 2 | Seasonal index smoothing using gamma factor | ||
8 | PERAN | PERAN | PERAN | DEC | 3 | 0 | Number of historical periods | ||
9 | GEWGR | GEWGR | GEWGR | CHAR | 2 | 0 | Weighting group | * | |
10 | PERIO | PERIO | PERAN | DEC | 3 | 0 | Number of periods per seasonal cycle | ||
11 | KURST | KURST_CURR | KURST | CHAR | 4 | 0 | Exchange rate type | TCURV | |
12 | TRATIO | UPF_Y_TRATIO | FDNAME | CHAR | 30 | 0 | Planning: Target Key Figure | * | |
13 | FRATIO | UPF_Y_FRATIO | FDNAME | CHAR | 30 | 0 | Planning: Source Key Figure | * | |
14 | TCURR | UPF_Y_TCURR | WAERS | CUKY | 5 | 0 | Planning: Target Currency | TCURC | |
15 | TCDIM | UPF_Y_TCDIM | FDNAME | CHAR | 30 | 0 | Planning: Characteristic Target Currency | * | |
16 | CDATE | UPF_Y_CDATE | DATS | DATS | 8 | 0 | Planning: Conversion Date | ||
17 | ACTDT | UPF_Y_ACTDT | XFELD | CHAR | 1 | 0 | Planning: Currency Translation with Current Date | ||
18 | TIMRF | UPC_Y_TIMEREF | UPC_TIMEREF | CHAR | 1 | 0 | Time Reference Field for Currency Translation | ||
19 | TQUAN | UPF_Y_TQUAN | MEINS | UNIT | 3 | 0 | Planning: Target Unit | T006 | |
20 | TQDIM | UPF_Y_TQDIM | FDNAME | CHAR | 30 | 0 | Planning: Characteristic Target Unit | * | |
21 | VAR_NUMBER | UPC_Y_VAR_NUMBER | UPC_VAR_NUMBER | DEC | 31 | 9 | Numeric Value for Variables | ||
22 | STRAT | UPF_Y_FC_STR | UPF_D_FC_STR | CHAR | 2 | 0 | Forecast Strategy | ||
23 | TDAMP | UPF_Y_FC_TDAMP | UPF_D_BOOL | CHAR | 1 | 0 | Trand Dampening is Active | ||
24 | TDAMPFAC | UPF_Y_TREND_DAMPENING | DEC | 4 | 3 | Trend Dampening Factor | |||
25 | OUTL | UPF_Y_OUTLIER_CORRECTION | UPF_D_BOOL | CHAR | 1 | 0 | Outlier Correction | ||
26 | SIGFAC | UPF_Y_SIGMA_FACTOR | DEC | 4 | 3 | Sigma Factor for Outlier Correction | |||
27 | MAORD | UPF_Y_MA_ORDER | DEC | 2 | 0 | Order of Moving Average (Time Frame Length) | |||
28 | NONNEGATIVE | UPF_Y_FC_NONNEGATIVE | UPF_D_BOOL | CHAR | 1 | 0 | Set Negative Forecast Values to Zero | ||
29 | DISREG | UPF_Y_DISREG | XFELD | CHAR | 1 | 0 | Ignore Initial Zeros | ||
30 | STAT | UPF_Y_FC_STATISTICS | UPF_D_BOOL | CHAR | 1 | 0 | Log Statistical Key Figures | ||
31 | ALPHA | UPF_E_ALPHA | UPF_D_SMOOTH | DEC | 4 | 3 | Smoothing Factor Alpha (Basic Value) | ||
32 | BETA | UPF_E_BETA | UPF_D_SMOOTH | DEC | 4 | 3 | Smoothing Factor Beta (Trend Value) | ||
33 | GAMMA | UPF_E_GAMMA | UPF_D_SMOOTH | DEC | 4 | 3 | Smoothing Factor Gamma (Seasonal Component) | ||
34 | NO_OPT | UPF_Y_FC_NO_OPT | UPF_D_BOOL | CHAR | 1 | 0 | Manual Entry of Smoothing Factors | ||
35 | OPT | UPF_Y_FC_OPT | UPF_D_BOOL | CHAR | 1 | 0 | Optimization of Smoothing Factors | ||
36 | OPTVAR | UPF_Y_FC_OPT_VARIABLE | UPF_D_FC_OPT_VARIABLE | CHAR | 5 | 0 | Optimization Variable | ||
37 | ALPHA_F | UPF_Y_ALPHA_FROM | UPF_D_SMOOTH | DEC | 4 | 3 | Lower Limit Alpha for Optimization | ||
38 | ALPHA_T | UPF_Y_ALPHA_TO | UPF_D_SMOOTH | DEC | 4 | 3 | Upper Limit Alpha for Optimization | ||
39 | ALPHA_S | UPF_Y_ALPHA_STEPSIZE | UPF_D_SMOOTH | DEC | 4 | 3 | Stepsize Alpha for Optimization | ||
40 | BETA_F | UPF_Y_BETA_FROM | UPF_D_SMOOTH | DEC | 4 | 3 | Lower Limit Beta for Optimization | ||
41 | BETA_T | UPF_Y_BETA_TO | UPF_D_SMOOTH | DEC | 4 | 3 | Upper Limit Beta for Optimization | ||
42 | BETA_S | UPF_Y_BETA_STEPSIZE | UPF_D_SMOOTH | DEC | 4 | 3 | Stepsize Beta for Optimization | ||
43 | GAMMA_F | UPF_Y_GAMMA_FROM | UPF_D_SMOOTH | DEC | 4 | 3 | Lower Limit Gamma for Optimization | ||
44 | GAMMA_T | UPF_Y_GAMMA_TO | UPF_D_SMOOTH | DEC | 4 | 3 | Upper Limit Gamma for Optimization | ||
45 | GAMMA_S | UPF_Y_GAMMA_STEPSIZE | UPF_D_SMOOTH | DEC | 4 | 3 | Stepsize Gamma for Optimization |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | UPF_YS_TECHF | KURST | TCURV | KURST | |||
2 | UPF_YS_TECHF | TCURR | TCURC | WAERS | |||
3 | UPF_YS_TECHF | TQUAN | T006 | MSEHI |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in |
