SAP ABAP Table RPLM_MEASUREM_DOC_UI (Structure for Measurement Document UI)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EP-PCT-MAN-MT (Application Component) Business Package for Maintenance Technician
     ⤷ RPLM_MT_BE (Package) Maintenance Technician Backend

Basic Data

Table Category	INTTAB	Structure

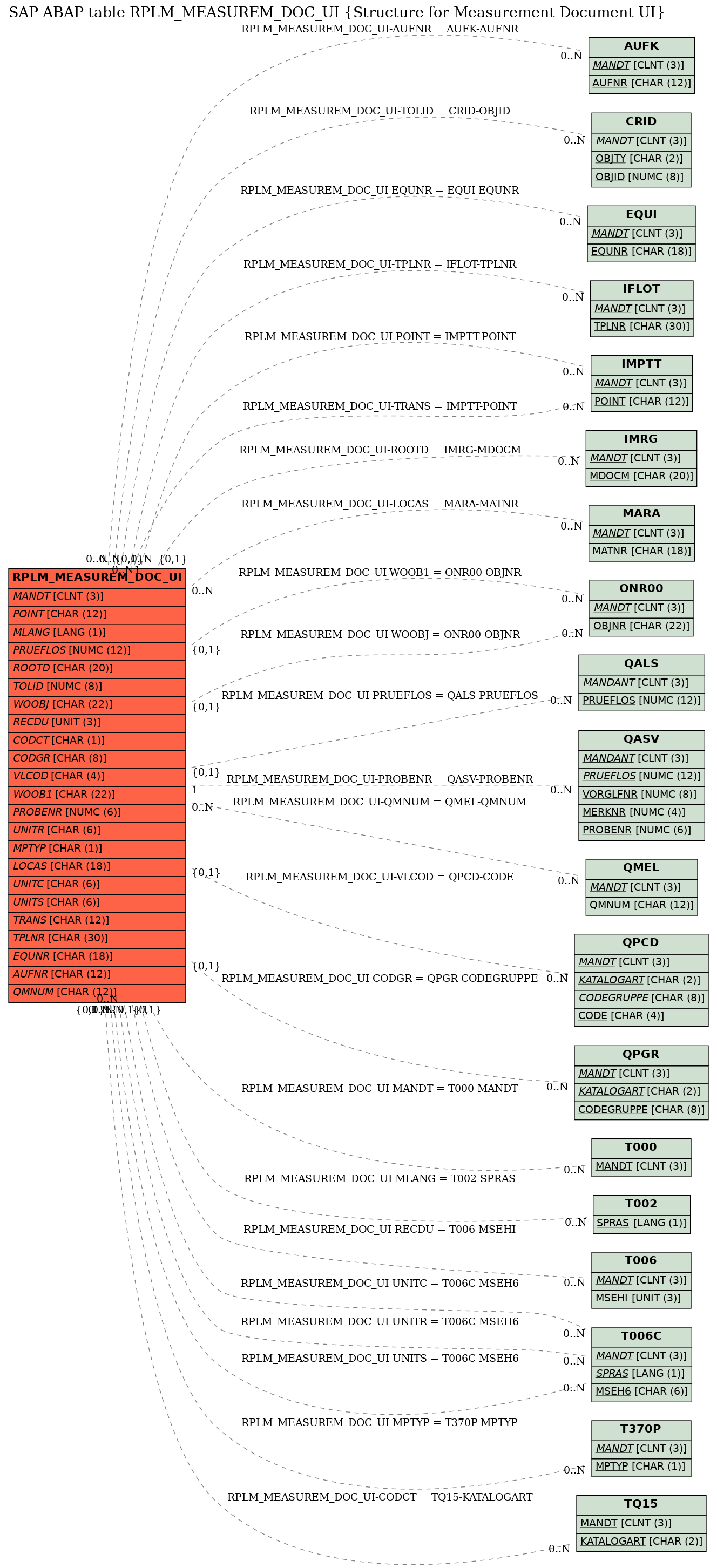

Structure	RPLM_MEASUREM_DOC_UI	Table Relationship Diagram
Short Description	Structure for Measurement Document UI

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Measurement Document: Output Structure for ABAP Lists
2	.INCLUDE	☐				0	0	Measurement Document
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	MDOCM	☐	IMRC_MDOCM	IMRC_MDOCM	CHAR	20	0	Measurement Document	*
5	POINT	☐	IMRC_POINT	IMRC_POINT	CHAR	12	0	Measuring Point	IMPTT
6	IDATE	☐	IMRC_IDATE	DATUM	DATS	8	0	Date of the Measurement
7	ITIME	☐	IMRC_ITIME	UZEIT	TIMS	6	0	Time of Measurement
8	INVTS	☐	IMRC_INVTS	NUMC11	NUMC	11	0	Inverted Time Stamp: 99.999.999.999 - Seconds AD
9	CNTRG	☐	IMRC_CNTRG	X	CHAR	1	0	Indicator: Counter Reading Document
10	MDTXT	☐	IMRC_MDTXT	TEXT40	CHAR	40	0	Measurement Document Text
11	MLANG	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
12	KZLTX	☐	ILOM_KZLTX	X	CHAR	1	0	Indicator: Long text exists
13	READR	☐	IMRC_READR	USNAM	CHAR	12	0	Person who Took the Measurement Reading
14	ERDAT	☐	ICRDT	DATUM	DATS	8	0	Date on Which Object Was Created
15	ERUHR	☐	ICRTM	UZEIT	TIMS	6	0	Time at which the object was created
16	ERNAM	☐	ICRNA	USNAM	CHAR	12	0	Name of User Who Created the Object
17	AEDAT	☐	IUPDT	DATUM	DATS	8	0	Date on which the object was last changed
18	AENAM	☐	IUPNA	USNAM	CHAR	12	0	Name of the User Who Last Changed the Object
19	LVORM	☐	IMRC_DEL1	IMRC_DEL1	CHAR	1	0	Deletion Flag for 1-Level Deletion Logic
20	GENER	☐	IMRC_GENER	IMRC_GENER	CHAR	1	0	Origin Indicator
21	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
22	VORGLFNR	☐	QLFNKN	KNTNR	NUMC	8	0	Current Node Number from Order Counter APLZL
23	MERKNR	☐	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
24	DETAILERG	☐	RESERVE_NUMC_008	NUMC8	NUMC	8	0	Development reserve: Format NUMC, length 8
25	ROOTD	☐	IMRC_ROOTD	IMRC_MDOCM	CHAR	20	0	Source Document for Measurement Reading Transfer	IMRG
26	TOLTY	☐	IMRC_TOLTY	CR_OBJTY	CHAR	2	0	CIM Resource Object Type for Production Resources/Tools
27	TOLID	☐	IMRC_TOLID	CR_OBJID	NUMC	8	0	Production Resource/Tool Object ID	CRID
28	WOOBJ	☐	IMRC_WOOBJ	J_OBJNR	CHAR	22	0	Object Number of Order	ONR00
29	DOCAF	☐	IMRC_DOCAF	X	CHAR	1	0	Indicator: MeasDoc. Created After Associated Task
30	READG	☐	IMRC_READG	IMRC_FLTPS	FLTP	16	16	Measurement Reading/Total Counter Reading in SI Unit
31	READGI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
32	RECDV	☐	IMRC_RECDV	IMRC_FLTPS	FLTP	16	16	Measurement Reading in Unit of Entry
33	RECDVI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
34	RECDU	☐	IMRC_RECDU	MEINS	UNIT	3	0	Unit of Measurement for Document Entry	T006
35	CNTRR	☐	IMRC_CNTRR	IMRC_FLTPS	FLTP	16	16	Counter Reading in SI Unit
36	CNTRRI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
37	CDIFF	☐	IMRC_CDIFF	IMRC_FLTPS	FLTP	16	16	Counter Reading Difference in SI Unit
38	CDIFFI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
39	IDIFF	☐	IMRC_IDIFF	X	CHAR	1	0	Indicator: Counter Reading Entered as Difference
40	EXCHG	☐	IMRC_EXCHG	X	CHAR	1	0	Indicator: Counter Replaced
41	TOTEX	☐	IMRC_TOTEX	X	CHAR	1	0	Indicator: Total Counter Reading Set Externally
42	CODCT	☐	IMRC_CODCT	QKATART	CHAR	1	0	Catalog Type - Measurement Reading Valuation Code	TQ15
43	CODGR	☐	IMRC_CODGR	QCODEGRP	CHAR	8	0	Code Group - Measurement Reading Valuation Code	QPGR
44	VLCOD	☐	IMRC_VLCOD	QCODE	CHAR	4	0	Valuation Code	QPCD
45	CVERS	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
46	PREST	☐	IMRC_PREST	IMRC_PREST	CHAR	1	0	Processing Status
47	CANCL	☐	IMRC_CANCL	X	CHAR	1	0	Reversal Indicator
48	WOOB1	☐	IMRC_WOOB1	J_OBJNR	CHAR	22	0	Object Number of Order Operation/Confirmation Counter etc.	ONR00
49	PROBENR	☐	QSTIPRONR	QPROBENR	NUMC	6	0	Number of the Partial Sample	QASV
50	MBEWERTG	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
51	INTVL	☐	IMRC_INTVL	IMRC_INTVL	CHAR	1	0	Indicator that Document Refers to Time Interval
52	IDAT1	☐	IMRC_IDAT1	DATUM	DATS	8	0	Date of Interval Start
53	ITIM1	☐	IMRC_ITIM1	UZEIT	TIMS	6	0	Time of Interval Start
54	TMSTP_BW	☐	TSTMP_BW_EXTRACT	RKE_TSTMP	DEC	16	0	Time Stamp for BW Delta Extraction
55	.INCLUDE	☐				0	0
56	.INCLU--AP	☐				0	0	Fields for /ISDFPS/ Enhancements
57	LOGSYSTEM	☐	LOGSYSTEM	LOGSYS	CHAR	10	0	Logical System	*
58	RECDC	☐	IMRC_RECDC	FLTP_INOUT	CHAR	22	0	Measurement Reading in Unit of Entry
59	UNITR	☐	IMRC_UNITR	MSEC6	CHAR	6	0	Unit of Measurement for Document Entry	T006C
60	RDTOT	☐	IMRC_RDTOT	FLTP_INOUT	CHAR	22	0	Measurement Reading/Total Counter Reading
61	CNTRC	☐	IMRC_CNTRC	FLTP_INOUT	CHAR	22	0	Counter Reading
62	CDIFC	☐	IMRC_CDIFC	FLTP_INOUT	CHAR	22	0	Counter Reading Difference
63	PSORT	☐	IMRC_PSORT	CHAR20	CHAR	20	0	Position Number of the Object Measuring Point (Sort Field)
64	PTTXT	☐	IMRC_PTTXT	TEXT40	CHAR	40	0	Description of Measuring Point
65	MPTYP	☐	IMRC_MPTYP	IMRC_MPTYP	CHAR	1	0	Measuring Point Category	T370P
66	LOCAS	☐	IMRC_LOCAS	MATNR	CHAR	18	0	Assembly for Localization of Measuring Point	MARA
67	DSTXT	☐	IMRC_DSTXT	TEXT40	CHAR	40	0	Aditional Short Text for Measuring Point
68	DESIC	☐	IMRC_DESIC	FLTP_INOUT	CHAR	22	0	Measuring Point Target Value
69	CJUMC	☐	IMRC_CJUMC	FLTP_INOUT	CHAR	22	0	Counter Overflow Reading
70	PYEAC	☐	IMRC_PYEAC	FLTP_INOUT	CHAR	22	0	Annual Estimate
71	UNITC	☐	IMRC_UNITC	MSEC6	CHAR	6	0	Unit of Measurement for Measuring Point Characteristic	T006C
72	UNITS	☐	IMRC_UNITS	MSEC6	CHAR	6	0	SI Unit of Characteristic Unit	T006C
73	TRANS	☐	IMRC_TRANS	IMRC_POINT	CHAR	12	0	Measuring Point from Which Meas. Reading Was Transferred	IMPTT
74	TPLNR	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	IFLOT
75	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
76	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
77	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
78	QMNUM	☐	QMNUM	QMNUM	CHAR	12	0	Message Number	QMEL
79	ATNAM	☐	ATNAM	ATNAM	CHAR	30	0	Characteristic Name
80	MSEHL	☐	MSEHL	TEXT30	CHAR	30	0	Unit of Measurement Text (Maximum 30 Characters)
81	ATBEZ	☐	ATBEZ	TEXT30	CHAR	30	0	Characteristic description
82	MSEHT	☐	MSEHT	TEXT10	CHAR	10	0	Unit of Measurement Text (Maximum 10 Characters)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RPLM_MEASUREM_DOC_UI	AUFNR	AUFK	AUFNR
2	RPLM_MEASUREM_DOC_UI	CODCT	TQ15	KATALOGART	REF	C	CN
3	RPLM_MEASUREM_DOC_UI	CODGR	QPGR	CODEGRUPPE	REF	C	CN
4	RPLM_MEASUREM_DOC_UI	EQUNR	EQUI	EQUNR
5	RPLM_MEASUREM_DOC_UI	LOCAS	MARA	MATNR
6	RPLM_MEASUREM_DOC_UI	MANDT	T000	MANDT	KEY	1	CN
7	RPLM_MEASUREM_DOC_UI	MLANG	T002	SPRAS	REF	C	CN
8	RPLM_MEASUREM_DOC_UI	MPTYP	T370P	MPTYP
9	RPLM_MEASUREM_DOC_UI	POINT	IMPTT	POINT	KEY	1	CN
10	RPLM_MEASUREM_DOC_UI	PROBENR	QASV	PROBENR	REF	1	CN
11	RPLM_MEASUREM_DOC_UI	PRUEFLOS	QALS	PRUEFLOS	REF	C	CN
12	RPLM_MEASUREM_DOC_UI	QMNUM	QMEL	QMNUM
13	RPLM_MEASUREM_DOC_UI	RECDU	T006	MSEHI	REF	C	CN
14	RPLM_MEASUREM_DOC_UI	ROOTD	IMRG	MDOCM	REF	C	CN
15	RPLM_MEASUREM_DOC_UI	TOLID	CRID	OBJID	REF	C	CN
16	RPLM_MEASUREM_DOC_UI	TPLNR	IFLOT	TPLNR
17	RPLM_MEASUREM_DOC_UI	TRANS	IMPTT	POINT
18	RPLM_MEASUREM_DOC_UI	UNITC	T006C	MSEH6
19	RPLM_MEASUREM_DOC_UI	UNITR	T006C	MSEH6
20	RPLM_MEASUREM_DOC_UI	UNITS	T006C	MSEH6
21	RPLM_MEASUREM_DOC_UI	VLCOD	QPCD	CODE	REF	C	CN
22	RPLM_MEASUREM_DOC_UI	WOOB1	ONR00	OBJNR	REF	C	CN
23	RPLM_MEASUREM_DOC_UI	WOOBJ	ONR00	OBJNR	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	700
