SAP ABAP Table RCBDUPACKBUF (EHS: Buffer for Packing Requirement)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ EHS-DGP (Application Component) Dangerous Goods Management
     ⤷ CBDG (Package) PI-EH&S Dangerous Goods Management

Basic Data

Table Category	INTTAB	Structure

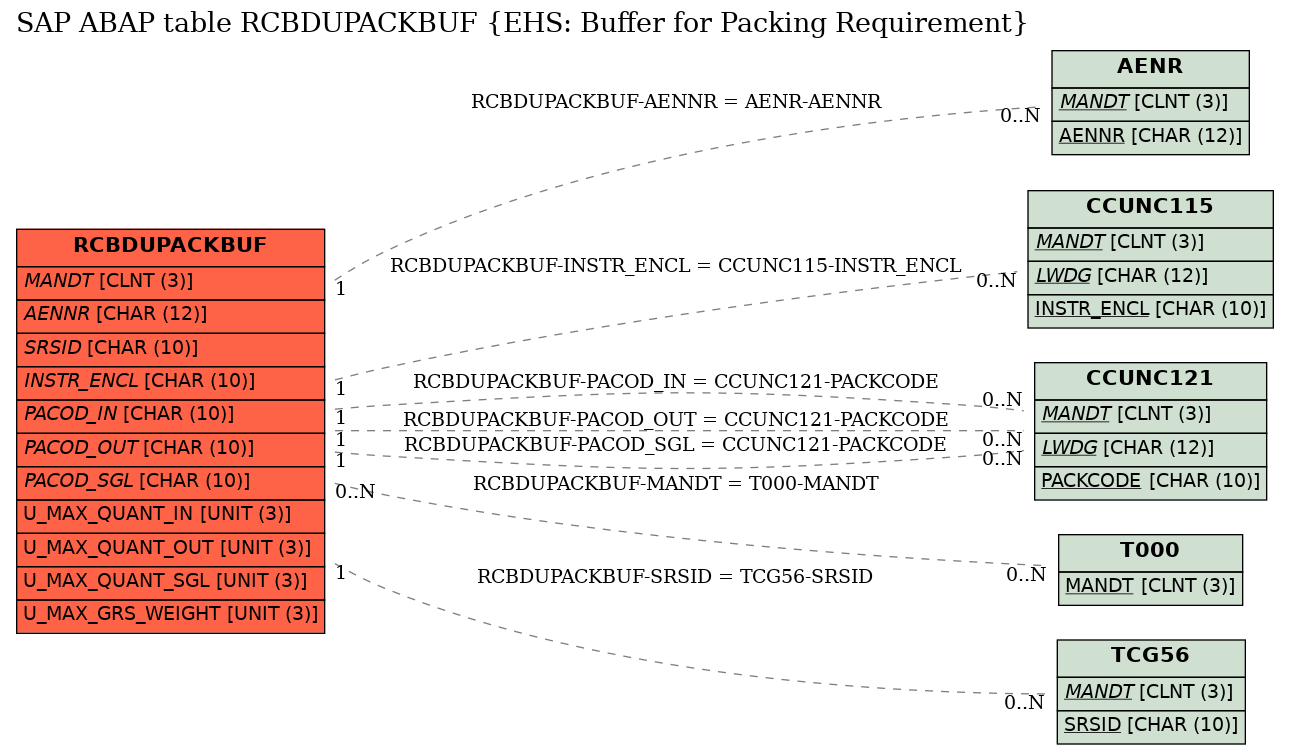

Structure	RCBDUPACKBUF	Table Relationship Diagram
Short Description	EHS: Buffer for Packing Requirement

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Standard fields for buffer table
2	VALFLG	☐	ESEVALFLG	ESDFLAG	CHAR	1	0	Indicator: Data record is currently valid
3	CHCOFLG	☐	ESECHCOFLG	ESDFLAG	CHAR	1	0	Indicator: Change number collision
4	LOCKMOD	☐	ESELOCKMOD	CHAR1	CHAR	1	0	Lock Mode (Shared, Exclusive)
5	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
6	SAVEMOD	☐	ESESAVEMOD	CHAR1	CHAR	1	0	Processing type when saving: INSERT, UPDATE, DELETE
7	SPLIT	☐	ESESPLIT	ESDSPLIT	CHAR	1	0	Record Split Indicator of a Buffer Record
8	BUF_ORIG_INDEX	☐	SYTABIX	SYST_LONG	INT4	10	0	Row Index of Internal Tables
9	CHANGENO	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	*
10	KEYDATE	☐	ESEDIAGVD	DATUM	DATS	8	0	Key Date
11	.INCLUDE	☐				0	0	Packaging Code Approvals
12	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
13	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
14	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
15	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
16	.INCLUDE	☐				0	0	DG: Structure for General Administration Information
17	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
18	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
19	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
20	DELFLG	☐	ADGE_DELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
21	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
22	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
23	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
24	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
25	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
26	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
27	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
28	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
29	.INCLUDE	☐				0	0	EHS: Application Data for Table CCDUTPACK
30	INSTR_ENCL	☐	CBUNE_INSTR_ENCL	CBUND_INSTR_ENCL	CHAR	10	0	Instruction for Enclosure	CCUNC115
31	PACOD_IN	☐	CBDUE_PACOD_IN	CBUND_PACOD	CHAR	10	0	Packaging Code Inner Packaging	CCUNC121
32	PACOD_OUT	☐	CBDUE_PACOD_OUT	CBUND_PACOD	CHAR	10	0	Packaging Code Outer Packaging	CCUNC121
33	PACOD_SGL	☐	CBDUE_PACOD_SGL	CBUND_PACOD	CHAR	10	0	Packaging Code Single Packaging	CCUNC121
34	MAX_QUANT_IN	☐	THME_IPMQU	HMD_QUAN	QUAN	8	2	Inner Packaging: Maximum Quantity / Volume
35	U_MAX_QUANT_IN	☐	THME_UIPMQ	MEINS	UNIT	3	0	Unit of measure for inner packaging: max. quantity/volume	*
36	FLG_MAX_QU_IN	☐	CBDUE_FLG_MAX_QU_IN	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Inner Packaging
37	MAX_QUANT_OUT	☐	THME_OPMQU	HMD_QUAN	QUAN	8	2	Outer Packaging: Maximum Quantity / Volume
38	U_MAX_QUANT_OUT	☐	THME_UOPMQ	MEINS	UNIT	3	0	Unit for maximum quantity / volume of outer package	*
39	FLG_MAX_QU_OUT	☐	CBDUE_FLG_MAX_QU_OUT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Outer Packaging
40	MAX_QUANT_SGL	☐	THME_SPAQU	HMD_QUAN	QUAN	8	2	Single Packaging: Maximum Quantity / Volume
41	U_MAX_QUANT_SGL	☐	THME_USPAQ	MEINS	UNIT	3	0	Unit for single packaging: max. quantity / volume	*
42	FLG_MAX_QU_SGL	☐	CBDUE_FLG_MAX_QU_SGL	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Quantity Single Packaging
43	MAX_GROSS_WEIGHT	☐	THME_TOGWE	HMD_QUAN	QUAN	8	2	Maximum Gross Weight
44	U_MAX_GRS_WEIGHT	☐	THME_UTOGW	MEINS	UNIT	3	0	Unit for packaging gross weight	*
45	FLG_MAX_GRS_WGHT	☐	CBDUE_FLG_MAX_GRS_WGHT	CBUND_FLG	CHAR	1	0	Value Entered for Maximum Gross Weight
46	IPALL	☐	THME_IPALL	X	CHAR	1	0	Pallet / Skeleton Container
47	AGAUN	☐	THME_AGAUN	X	CHAR	1	0	Agreement of Authorities Required
48	REGNO	☐	ADGE_REGNO	CHAR30	CHAR	30	0	Approval no.
49	AGRNO	☐	ADGE_AGRNO	CHAR30	CHAR	30	0	Exception and Agreement Number
50	DAOR	☐	ADGE_DAOR	ADGD_DAOR	CHAR	1	0	Data Origin (Filling and Distribution)
51	INSTR_ENCL_CAT	☐	CBUNE_INSTR_ENCL_CAT	CBUND_INSTR_ENCL_CAT	CHAR	15	0	Category of Instruction for Enclosure	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCBDUPACKBUF	AENNR	AENR	AENNR	REF	1	CN
2	RCBDUPACKBUF	INSTR_ENCL	CCUNC115	INSTR_ENCL		1	CN
3	RCBDUPACKBUF	MANDT	T000	MANDT
4	RCBDUPACKBUF	PACOD_IN	CCUNC121	PACKCODE		1	CN
5	RCBDUPACKBUF	PACOD_OUT	CCUNC121	PACKCODE		1	CN
6	RCBDUPACKBUF	PACOD_SGL	CCUNC121	PACKCODE		1	CN
7	RCBDUPACKBUF	SRSID	TCG56	SRSID	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	0207B0406C
