SAP ABAP Table QAIPP_O1 (Confirmation of Inspection Point Results from a QM Subsystem)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QEIF (Package) QM interfaces inspection processing

Basic Data

Table Category	INTTAB	Structure

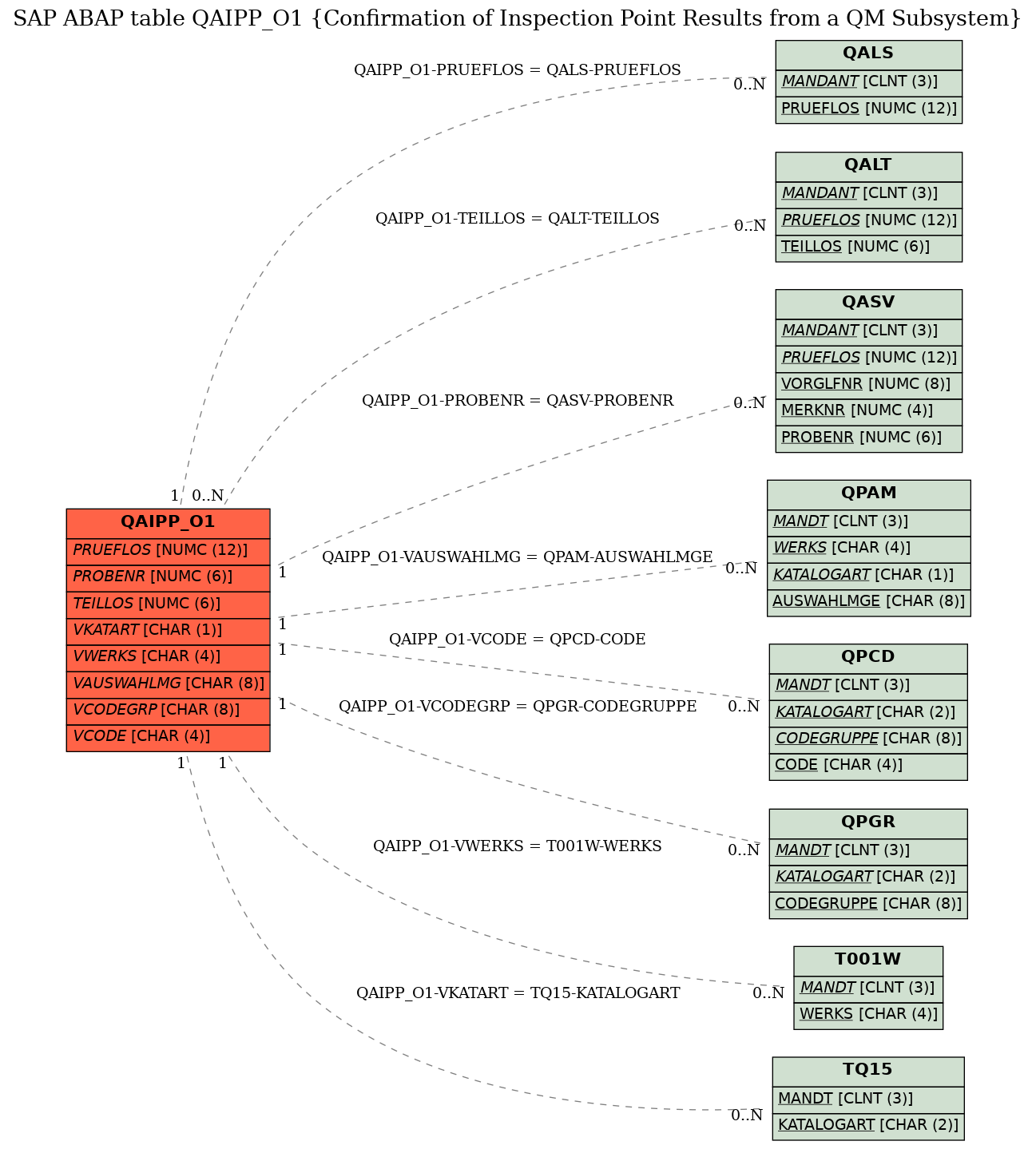

Structure	QAIPP_O1	Table Relationship Diagram
Short Description	Confirmation of Inspection Point Results from a QM Subsystem

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SATZART	☐	QEIFART	QEIFART	CHAR	3	0	Record Types for QM Interface - Subsystems
2	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
3	PLNFL	☐	PLNFOLGE	PLNFOLGE	CHAR	6	0	Sequence
4	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
5	PROBENR	☐	QPROBENRPP	QPROBENR	NUMC	6	0	Sample Number (Based on an Inspection Point)	QASV
6	TEILLOS	☐	QTLOS	QTLOS	NUMC	6	0	Partial lot number	QALT
7	MENGE	☐	QEIFMENGPP	CHAR17	CHAR	17	0	Inspection Point Quantity
8	EINHPR	☐	QEIFEINHPR	MEINS	UNIT	3	0	Inspection Point Unit of Measure	*
9	USERC1	☐	QUSRCHAR18	QUSRCHAR18	CHAR	18	0	User Field for 18 Characters
10	USERC2	☐	QUSRCHAR10	QUSRCHAR10	CHAR	10	0	User Field for 10 Characters
11	USERN1	☐	QUSRNUMC10	QUSRNUMC10	NUMC	10	0	User Field for 10 Digits
12	USERN2	☐	QUSRNUMC3	QUSRNUMC3	NUMC	3	0	User Field for 3 Digits
13	USERD1	☐	QEIFUSRDAT	DATUM	DATS	8	0	User Field for Date
14	USERT1	☐	QEIFUSRTIM	QZEIT	TIMS	6	0	User Field for Time
15	VKATART	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
16	VWERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
17	VAUSWAHLMG	☐	QVMENGE	QAUSWAHLMG	CHAR	8	0	Selected Set of the Usage Decision	QPAM
18	VCODEGRP	☐	QVGRUPPE	QCODEGRP	CHAR	8	0	Code Group of the Usage Decision	QPGR
19	VCODE	☐	QVCODE	QCODE	CHAR	4	0	Usage Decision Code	QPCD
20	VTEXT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
21	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
22	CHARG	☐	CHARG_D	CHARG	CHAR	10	0	Batch Number	*
23	PRUEFDATUM	☐	QEIFPRDATV	DATUM	DATS	8	0	Inspection Start Date (QM Subsystem Interface)
24	PRUEFZEIT	☐	QEIFPRZTV	QZEIT	TIMS	6	0	Inspection Start Time (QM Subsystem Interface)
25	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
26	KZRMART	☐	QEIFRMART	QKZ	CHAR	1	0	Confirmation Type Not Used Currently
27	URSACHEAS	☐	QGRUND	CO_AGRND	CHAR	4	0	Reason for Deviation	*
28	MENGEAS	☐	QEIFASMG	CHAR17	CHAR	17	0	Scrap Quantity

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAIPP_O1	PROBENR	QASV	PROBENR	KEY	1	CN
2	QAIPP_O1	PRUEFLOS	QALS	PRUEFLOS	KEY	1	CN
3	QAIPP_O1	TEILLOS	QALT	TEILLOS
4	QAIPP_O1	VAUSWAHLMG	QPAM	AUSWAHLMGE	KEY	1	CN
5	QAIPP_O1	VCODE	QPCD	CODE	KEY	1	CN
6	QAIPP_O1	VCODEGRP	QPGR	CODEGRUPPE	KEY	1	CN
7	QAIPP_O1	VKATART	TQ15	KATALOGART	KEY	1	CN
8	QAIPP_O1	VWERKS	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	19991110
SAP Release Created in
