SAP ABAP Table PVFRMHD (RMS-FRM: Historical Status of a PVS-FRM Variant)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration

Basic Data

Table Category	INTTAB	Structure
Structure	PVFRMHD	Table Relationship Diagram
Short Description	RMS-FRM: Historical Status of a PVS-FRM Variant

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	RMS-FRM: Historical Status of a PVS-FRM Variant
2	PVGUID	☐	FRMLE_PVGUID	SYSUUID	RAW	16	0	PVS Variant Identifier
3	PVNAME	☐	PVS_POSVAR	PVS_POSVAR	CHAR	8	0	Variant
4	NAMEID	☐	PVS_PNGUID	SYSUUID	RAW	16	0	Internal Number of iPPE Node
5	PNGUID	☐	PVS_PNGUID	SYSUUID	RAW	16	0	Internal Number of iPPE Node
6	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
7	DELFLG	☐	PVS_DELFLG	XFELD	CHAR	1	0	Deletion Indicator
8	.INCLUDE	☐				0	0	RMS-FRM: Basic Data of PVS Item Variant
9	.INCLUDE	☐				0	0	RMS-FRM: General Data for List Item (for Subst.and Material)
10	POSNR	☐	FRMLE_POSNR	FRMLD_POSNR	NUMC	4	0	Number of a Material or Substance Item
11	ROLE	☐	FRMLE_ROLE	ESDCOMPCAT	CHAR	10	0	Component Type (Material, Substance, or Stream Item)	*
12	STD_ALT_FLG	☐	FRMLE_STDALT_FLG	FRMLD_FLAG	CHAR	1	0	Standard Item
13	FLG_ALT_EXIST	☐	FRMLE_ALT_EXIST	XFELD	CHAR	1	0	Alternative Items Exist
14	ALT_POSNR	☐	FRMLE_ALT_POSNR	FRMLD_POSNR	NUMC	4	0	Sort Number of an Alternative Item
15	PO_FLG	☐	FRMLE_PO_FLG	FRMLD_FLAG	CHAR	1	0	Primary Output
16	PGUID_FRML	☐	FRMLE_PGUID_FRML	SYSUUID	RAW	16	0	Identifier of Formula Access Node in PVS
17	PGUID_COMP	☐	FRMLE_PGUID_COMP	SYSUUID	RAW	16	0	Identifier of Composition Access Node in PVS
18	PAGUID_COMP	☐	FRMLE_PAGUID_COMP	SYSUUID	RAW	16	0	Identifier of Composition Alternative in PVS
19	PVGUID_ALGRP	☐	FRMLE_PVGUID_ALGRP	SYSUUID	RAW	16	0	PVS Identifier of Variant of Alt. Grp with Common Attributes
20	POS_DELFLG	☐	FRMLE_DEL_FLG	XFELD	CHAR	1	0	Deletion Indicator
21	.INCLUDE	☐				0	0	RMS-FRM: Substance Data of PVS Item Variant
22	DEF_EXPL_FLG	☐	FRMLE_DEFEXPL_FLG	FRMLD_DEFEXPL_FLG	CHAR	1	0	Standard Explosion
23	.INCLUDE	☐				0	0	RMS-FRM: Value Range for a Substance
24	SUBRECN	☐	FRMLE_SUBRECN	ESDRECN	NUMC	20	0	Substance Key
25	.INCLUDE	☐				0	0	RMS-FRM: Value Range of a Component
26	COMPTGT	☐	FRMLE_COMPTGT	EHSBD_QUAN6_6	QUAN	12	6	Quantity of a Material or Substance Item
27	COMPTGT_ERR_FLG	☐	FRMLE_ERR_FLG	FLAG	CHAR	1	0	Error When Converting Units
28	OPLOW	☐	FRMLE_OPLOW	FRMLD_OPLOW	CHAR	2	0	Operator for Lower Limit
29	COMPLOW	☐	FRMLE_COMPLOW	FRMLD_QUAN6_6	QUAN	12	6	Value of Lower Limit of Item Quantity
30	OPUP	☐	FRMLE_OPUP	FRMLD_OPUP	CHAR	2	0	Operator for Upper Limit
31	COMPUPP	☐	FRMLE_COMPUPP	FRMLD_QUAN6_6	QUAN	12	6	Value of Upper Limit of Item Quantity
32	UNIT	☐	FRMLE_COMPUNIT	MEINS	UNIT	3	0	Unit of Measure of a Material or Substance Item	*
33	EXCVAL	☐	FRMLE_EXCVAL	ESDCOMPEXCVAL	CHAR	2	0	Exception Value	TCG78
34	ADDVAL	☐	FRMLE_ADDVAL	CHAR030	CHAR	30	0	Freely Available Field of Type Character String w.30 Characs
35	COMPTGT_FLT	☐	FRMLE_FLT	FLTP	FLTP	16	16	Floating-Point Value
36	COMPLOW_FLT	☐	FRMLE_COMPLOW_FLT	FLTP	FLTP	16	16	Lower Limit Value of Item Quantity (Floating Point Value)
37	COMPUPP_FLT	☐	FRMLE_COMPUPP_FLT	FLTP	FLTP	16	16	Upper Limit Value of Item Quantity (Floating Point Value)
38	OVR_FACTOR	☐	FRMLE_OVR_FACTOR	FRMLD_OVR	NUMC	3	0	Overrun Factor
39	SUB_DELFLG	☐	FRMLE_DEL_FLG	XFELD	CHAR	1	0	Deletion Indicator
40	SUB_RECN	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
41	PVFRMMD_TAB	☐	FRMLTY_PVFRMMD_TAB		TTYP	0	0

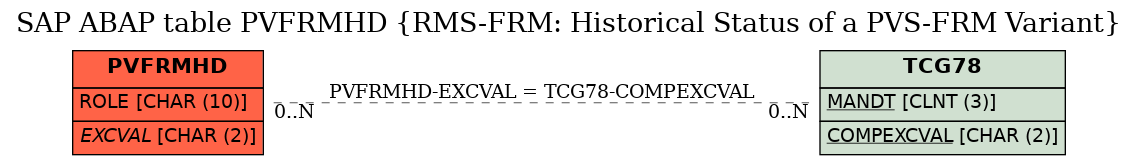

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PVFRMHD	EXCVAL	TCG78	COMPEXCVAL

History

Last changed by/on	SAP	20130529
SAP Release Created in	46C
