SAP ABAP Table PSHLP_AFAB_ST (Relationship buffer structure AFAB)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PS-ST (Application Component) Structures
     ⤷ PSB_API (Package) PS API Package

Basic Data

Table Category	INTTAB	Structure

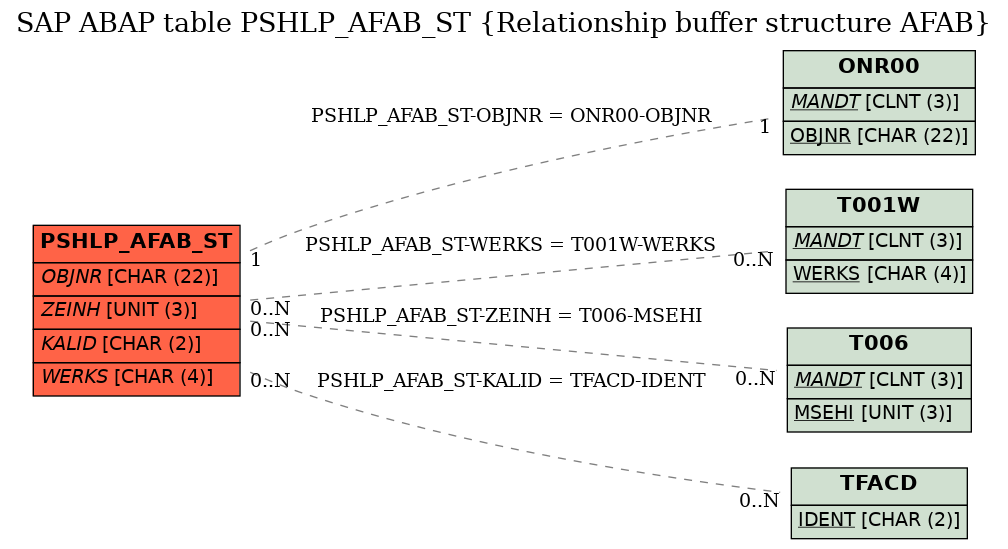

Structure	PSHLP_AFAB_ST	Table Relationship Diagram
Short Description	Relationship buffer structure AFAB

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Network: Document Table for Relationships
2	.INCLUDE	☐				0	0	Network - Relationships
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	AUFPL_VOR	☐	AUFPL_VOR	MDNUM	NUMC	10	0	No. identifying the network to which the predecessor belongs
5	APLZL_VOR	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
6	AUFPL_NCH	☐	AUFPL_NCH	MDNUM	NUMC	10	0	No. identifying the network to which the successor belongs
7	APLZL_NCH	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
8	AOBAR	☐	AOBAR	AOBAR	CHAR	2	0	Type of relationship
9	MIMAX	☐	DAUMIMAX	XFELD	CHAR	1	0	Indicates whether maximum time interval will be considered
10	.INCLUDE	☐				0	0	Network relationships (Include structure)
11	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
12	ZEINH	☐	AOBDAUEH	MEINS	UNIT	3	0	Unit for the time interval between relationships	T006
13	DAUER	☐	AOBDAUER	AOBDAUER	QUAN	5	1	Time interval between relationships
14	DAUKZ	☐	AOBDAUKZ	AOBDAUKZ	CHAR	1	0	Indicator for the duration of the relationship
15	VORNC	☐	VORG_NACH	XFELD	CHAR	1	0	Indicator: maintained after successor
16	NCVOR	☐	NACH_VORG	XFELD	CHAR	1	0	Indicates whether data after predecessor is maintained
17	LOEKZ	☐	LOLOE	XFELD	CHAR	1	0	Indicates whether an object is logically deleted.
18	KALID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	TFACD
19	PRZNT	☐	AOB_PRZNT	AOB_PRZNT	NUMC	3	0	% used to calc. time interval between predecessor/successor
20	PROVG	☐	AOB_PROVG	AOB_PROVG	CHAR	1	0	Key for defining time intervals in a relationship
21	ARBID	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
22	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
23	FSABD	☐	FSABD	DATUM	DATS	8	0	Earliest start date for the relationship
24	FSABZ	☐	FSABZ	ATIME	TIMS	6	0	Earliest start time for the relationship
25	SSABD	☐	SSABD	DATUM	DATS	8	0	Latest start date of the relationship
26	SSABZ	☐	SSABZ	ATIME	TIMS	6	0	Latest start time of the relationship
27	FEABD	☐	FEABD	DATUM	DATS	8	0	Earliest finish date for the relationship
28	FEABZ	☐	FEABZ	ATIME	TIMS	6	0	Earliest finish time for the relationship
29	SEABD	☐	SEABD	DATUM	DATS	8	0	Latest finish date of the relationship
30	SEABZ	☐	SEABZ	ATIME	TIMS	6	0	Latest finish time of the relationship
31	DAUTM	☐	DAUTM	CX_DAUERS	INT4	10	0	Relationship duration (in seconds) as result of scheduling
32	AUCRE	☐	CN_AUCRE	XFELD	CHAR	1	0	Ind.: Relationship automatically generated
33	DAUERMAX	☐	AOBDAUERM	AOBDAUER	QUAN	5	1	Maximum time interval for relationship
34	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
35	.INCLUDE	☐				0	0	Additional Document Table Fields in the Network for Rel.
36	VBKZ	☐	VBKZ	VERBUCHER	CHAR	1	0	Update indicator
37	AUFNR_TVOR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
38	AUFNR_TNCH	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
39	FLG_LOCK	☐	FLG_LOCK	XFELD	CHAR	1	0	Indicates whether this relationship is locked in data base
40	FLG_SEL	☐	FLG_SEL	XFELD	CHAR	1	0	Selection indicator
41	VORN1	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
42	VORN2	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
43	INDBT_VOR1	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
44	INDBT_VOR2	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
45	.INCLUDE	☐				0	0	Versions-include for AOB
46	VSNMR	☐	VSNMR	VSNMR	CHAR	12	0	Number or description of a version
47	INACT	☐	VSINACT	XFELD	CHAR	1	0	Version inactive indicator

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PSHLP_AFAB_ST	KALID	TFACD	IDENT
2	PSHLP_AFAB_ST	OBJNR	ONR00	OBJNR	REF	1	1
3	PSHLP_AFAB_ST	WERKS	T001W	WERKS
4	PSHLP_AFAB_ST	ZEINH	T006	MSEHI

History

Last changed by/on	SAP	20110901
SAP Release Created in	606
