SAP ABAP Table PLAPPLDATA (Dialog Fields for Packing Transaction Screen Container)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ LO-HU-MD (Application Component) Master data
     ⤷ ISAUTO_VHU_PACKOBJ (Package) Packing Instructions and Packing Dialog (Core)

Basic Data

Table Category	INTTAB	Structure

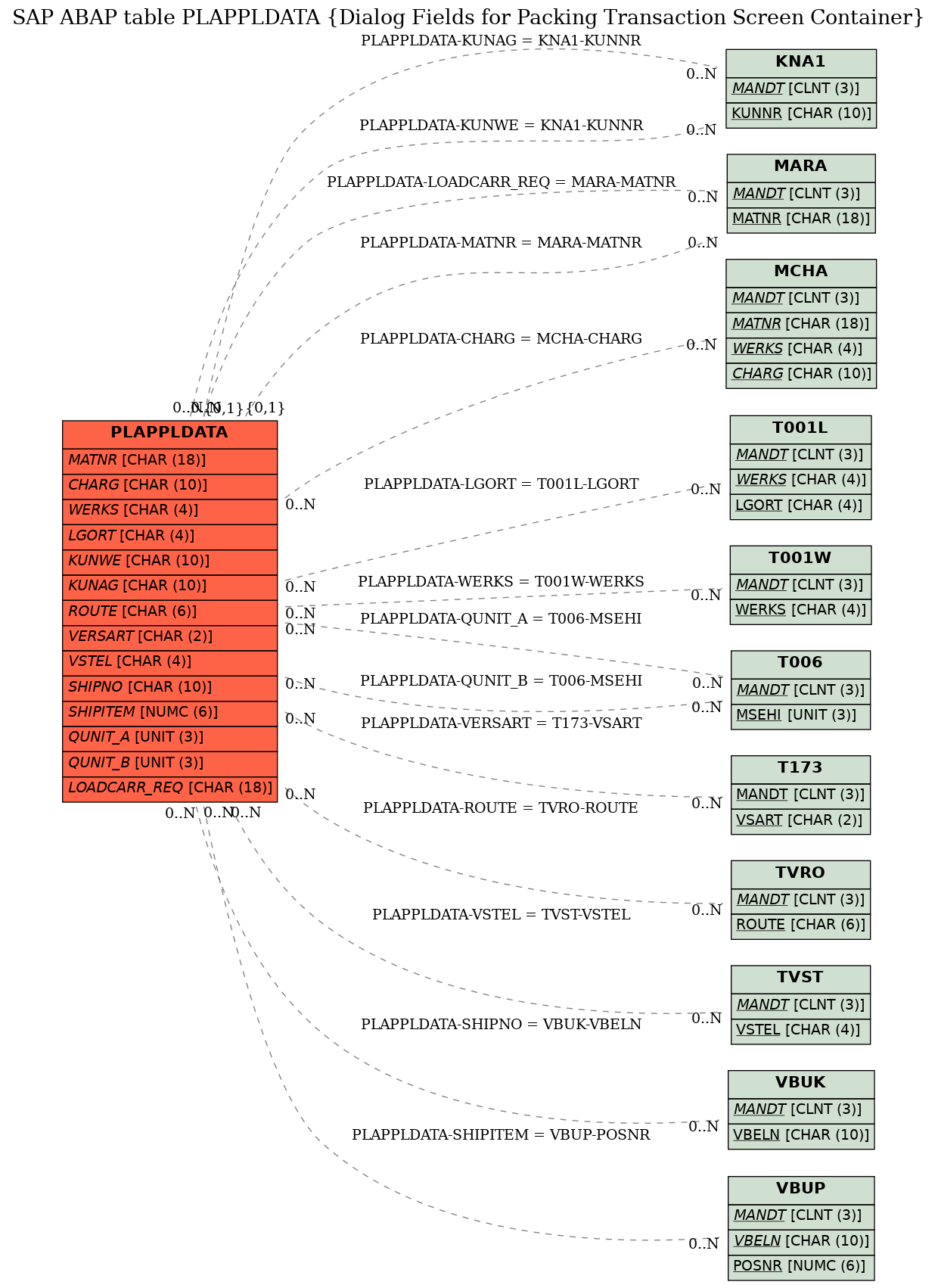

Structure	PLAPPLDATA	Table Relationship Diagram
Short Description	Dialog Fields for Packing Transaction Screen Container

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	AUFNR	☐	CO_AUFNR	AUFNR	CHAR	12	0	Order number	*
2	MATNR	☐	PL_PGOOD	MATNR	CHAR	18	0	Mat.number mat.to be packed	MARA
3	RMATP	☐	PL_RMATP	MATNR	CHAR	18	0	Reference material for materials packed in same way	*
4	CHARG	☐	CHARG_D	CHARG	CHAR	10	0	Batch Number	MCHA
5	XCHAR	☐	XCHAR	XFELD	CHAR	1	0	Batch management indicator (internal)
6	XCHPF	☐	XCHPF	XFELD	CHAR	1	0	Batch management requirement indicator
7	AUTOBATCH	☐	AUTBN_CUS	CHAR1	CHAR	1	0	Automatic batch number allocation active/inactive
8	REVLEV	☐	REVLV	REVLV	CHAR	2	0	Revision level
9	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
10	LGORT	☐	LGORT_D	LGORT	CHAR	4	0	Storage location	T001L
11	BESTQ	☐	BESTQ	BESTQ	CHAR	1	0	Stock Category in the Warehouse Management System
12	MAKTX	☐	MAKTX	TEXT40	CHAR	40	0	Material description
13	ABRVW	☐	ABRVW	ABRVW	CHAR	3	0	Usage Indicator	*
14	KUNWE	☐	PL_KUNWE	KUNNR	CHAR	10	0	Ship-to party for packing instruction determination	KNA1
15	KUNWE_NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
16	KUNWE_CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
17	KUNAG	☐	PL_KUNAG	KUNNR	CHAR	10	0	Sold-to party for packing instruction determination	KNA1
18	KUNAG_NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
19	KUNAG_CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
20	ABLAD	☐	ABLAD	TEXT25	CHAR	25	0	Unloading Point
21	ROUTE	☐	ROUTE	ROUTE	CHAR	6	0	Route	TVRO
22	VERSART	☐	VERSART	VERSART	CHAR	2	0	Shipping type	T173
23	VSTEL	☐	VSTEL	VSTEL	CHAR	4	0	Shipping Point/Receiving Point	TVST
24	LIFNR	☐	LIFNR	LIFNR	CHAR	10	0	Account Number of Vendor or Creditor	*
25	SHIPNO	☐	PL_SHIPNO	VBELN	CHAR	10	0	Delivery for which packing is to be done	VBUK
26	SHIPITEM	☐	PL_SHIPITEM	POSNR	NUMC	6	0	Delivery item	VBUP
27	PRODQUA	☐	PL_PRODQTY	MENG15	QUAN	15	3	Production quantity to be packed
28	MAXQUA	☐	PL_MAXQUA	MENG15	QUAN	15	3	Quantity to Be Packed
29	ACQUA	☐	PL_ACQUA	MENG15	QUAN	15	3	Packed Quantity
30	OPQUA	☐	PL_OPQUA	MENG15	QUAN	15	3	Unpacked quantity
31	QUNIT_A	☐	PL_UNITQTY	MEINS	UNIT	3	0	Unit of measure	T006
32	QUNIT_B	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
33	VALDAT_REQ	☐	PL_VALDAT_REQUIRED	DATUM	DATS	8	0	Required validity date
34	LOADCARR_REQ	☐	PL_LOADCARR_REQUIRED	MATNR	CHAR	18	0	Load carrier required	MARA

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PLAPPLDATA	CHARG	MCHA	CHARG
2	PLAPPLDATA	KUNAG	KNA1	KUNNR
3	PLAPPLDATA	KUNWE	KNA1	KUNNR
4	PLAPPLDATA	LGORT	T001L	LGORT
5	PLAPPLDATA	LOADCARR_REQ	MARA	MATNR	REF	C	CN
6	PLAPPLDATA	MATNR	MARA	MATNR	REF	C	CN
7	PLAPPLDATA	QUNIT_A	T006	MSEHI
8	PLAPPLDATA	QUNIT_B	T006	MSEHI
9	PLAPPLDATA	ROUTE	TVRO	ROUTE
10	PLAPPLDATA	SHIPITEM	VBUP	POSNR
11	PLAPPLDATA	SHIPNO	VBUK	VBELN
12	PLAPPLDATA	VERSART	T173	VSART
13	PLAPPLDATA	VSTEL	TVST	VSTEL
14	PLAPPLDATA	WERKS	T001W	WERKS

History

Last changed by/on	SAP	20110901
SAP Release Created in
