SAP ABAP Table N1TPM (IS-H*MED: Medical Enhancements for the Service Catalog Items)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ NORD (Package) R/3MED: Services processing EDV-G

Basic Data

Table Category	TRANSP	Transparent table

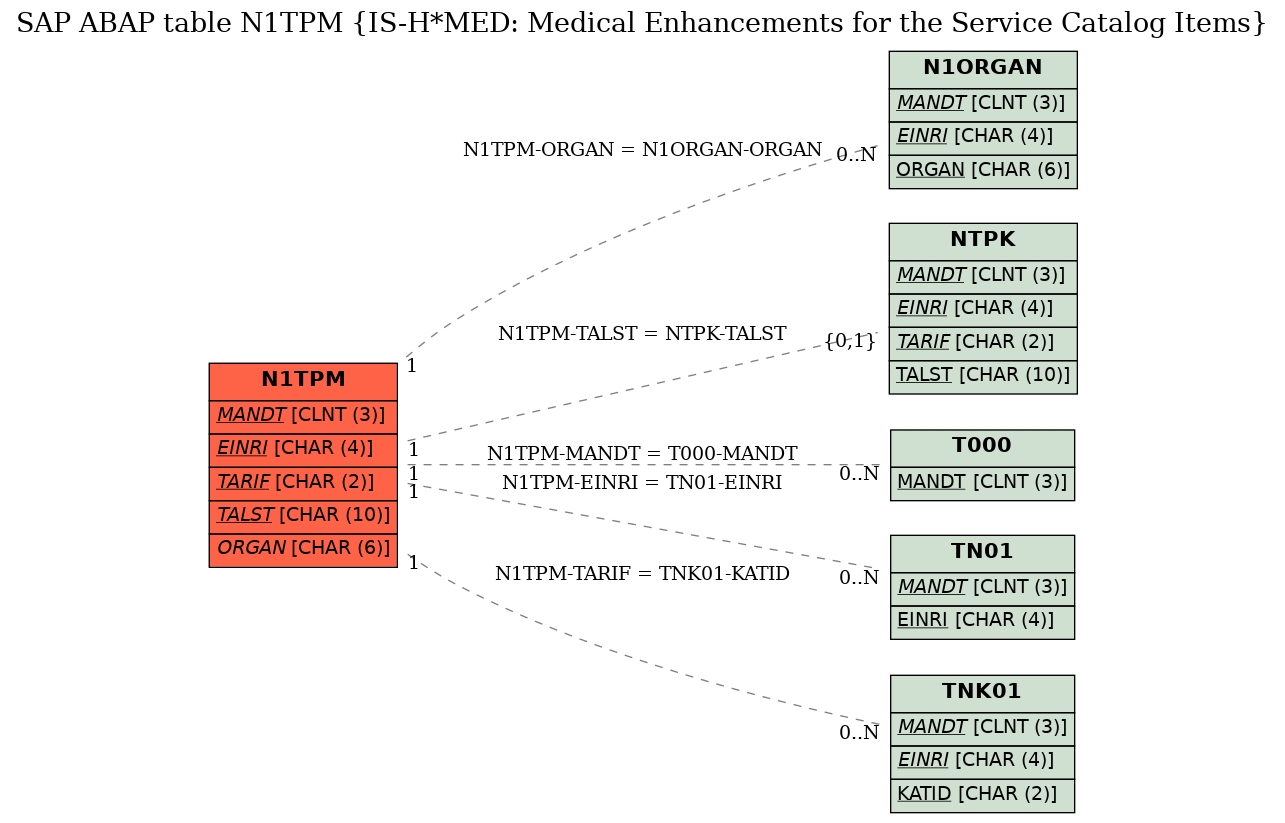

Transparent table	N1TPM	Table Relationship Diagram
Short Description	IS-H*MED: Medical Enhancements for the Service Catalog Items

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	EINRI	☑	EINRI	EINRI	CHAR	4	0	IS-H: Institution	TN01
3	TARIF	☑	TARID	TARID	CHAR	2	0	IS-H: Service Catalog Identification Key	TNK01
4	TALST	☑	TARLS	TARLS	CHAR	10	0	IS-H: Service in Service Catalog	NTPK
5	APRI	☐	N1APRI_D	N1APRI	NUMC	3	0	Prioritization for Request/Movement (Internal)
6	DAUER	☐	N1DAUER_MIN	N1DAUER_MIN	NUMC	4	0	IS-H*MED: Duration in Minutes
7	IFG	☐	N1IFG_INT	NUMC2	NUMC	2	0	Degree of Infection - Internal Format
8	ANERF	☐	N1ANERFORD	N1ANERF	CHAR	1	0	Anesthetist Required (Master Data)
9	PATEIN	☐	N1PATEIN2	N1PATEIN2	CHAR	1	0	Consent of Patient (for Master Data)
10	PATNUE	☐	N1PATNUE	XFELD	CHAR	1	0	Patient Fasting Indicator
11	LIDI	☐	N1LID_INT	NUM3	NUMC	3	0	Position ID Internal
12	VORBZEIT	☐	N1VORBZEIT	ISH_DZEIT	NUMC	4	0	Preparation Time for a Service
13	NACHBZEIT	☐	N1NACHBZEIT	ISH_DZEIT	NUMC	4	0	Clean-Up Time for a Service
14	WLTYP	☐	N1WLTYP	CHAR6	CHAR	6	0	Waiting List Type
15	AZVKG	☐	N1AZVKG	NUMC2	NUMC	2	0	Number of Preregistrations Displayed
16	APCH	☐	N1APCH	N1C001	CHAR	1	0	Request Profile Changeable
17	.INCLUDE	☐				0	0	IS-H*MED: Radiology Fields of the Table N1TPM
18	KM	☐	N1KM	N1KM	CHAR	1	0	Contrast Medium Application
19	SM	☐	N1SM	XFELD	CHAR	1	0	Pacemaker
20	MI	☐	N1METIMP	XFELD	CHAR	1	0	Metal Implants
21	LOK	☐	N1LOKINP	N1LOKIMP	CHAR	1	0	Entry of Localization in the Request
22	TDRAD	☐	N1TDRAD	XFELD	CHAR	1	0	Techn. Examination Data of the Radiology Obligat.
23	MTRAD	☐	N1MTRAD	XFELD	CHAR	1	0	Material Must Be Filled In
24	ORGAN	☐	N1ORGAN_DE	N1ORGAN_DE	CHAR	6	0	Description of an Organ	N1ORGAN
25	BILD	☐	N1BILD	XFELD	CHAR	1	0	Image-Producing Process
26	WLRELEVANT	☐	N1RELEVANT	XFELD	CHAR	1	0	Not Relevant to Worklist
27	REQ_SER	☐	N1REQ_SER	XFELD	CHAR	1	0	Contains No Requestable Services

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	N1TPM	EINRI	TN01	EINRI	KEY	1	CN
2	N1TPM	MANDT	T000	MANDT	KEY	1	CN
3	N1TPM	ORGAN	N1ORGAN	ORGAN	REF	1	CN
4	N1TPM	TALST	NTPK	TALST	KEY	1	C
5	N1TPM	TARIF	TNK01	KATID	KEY	1	CN

History

Last changed by/on	SAP	20050224
SAP Release Created in
