SAP ABAP Table LDLBTD (Dialog structure LDLBT)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ PP (Application Component) Production Planning and Control
     ⤷ LALD (Package) Logistics Automotive Line Design

Basic Data

Table Category	INTTAB	Structure

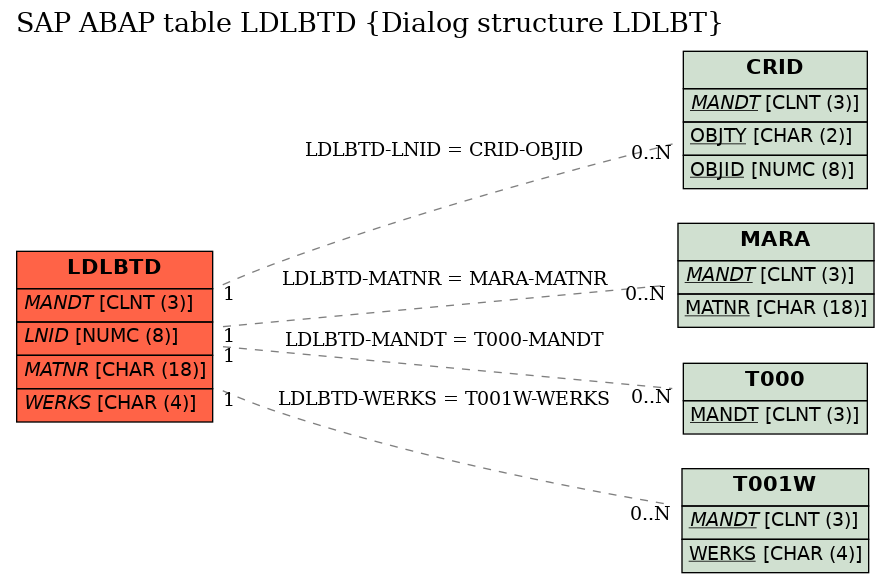

Structure	LDLBTD	Table Relationship Diagram
Short Description	Dialog structure LDLBT

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Line hierarchy entry and exit takts
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	LNID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	CRID
4	ZAEHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
5	POSID	☐	NUM06	NUM06	NUMC	6	0	Numeric field: Length 6
6	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
7	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
8	TLINE	☐	LD_TLINE	NUMC2	NUMC	2	0	Buffered section
9	SLNSID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	*
10	STAKT	☐	LD_STAKT	LD_TAKT	NUMC	4	0	Entry takt
11	ELNSID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	*
12	ETAKT	☐	LD_ETAKT	LD_TAKT	NUMC	4	0	Exit takt
13	POSNR	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
14	SLINE_SEG	☐	LD_LINE_SEG	ARBPL	CHAR	8	0	Line segment
15	SWERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
16	SLTAKT	☐	LD_LTAKT	LD_TAKTS	NUMC	6	0	Takt within a production line
17	ELINE_SEG	☐	LD_LINE_SEG	ARBPL	CHAR	8	0	Line segment
18	EWERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
19	ELTAKT	☐	LD_LTAKT	LD_TAKTS	NUMC	6	0	Takt within a production line
20	MAKTX	☐	MAKTX	TEXT40	CHAR	40	0	Material description
21	SELKZ	☐	SELKZ	SELKZ	CHAR	1	0	Selection flag
22	EXIST	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
23	VBKZ	☐	VBKZ	VERBUCHER	CHAR	1	0	Update indicator

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	LDLBTD	LNID	CRID	OBJID	KEY	1	CN
2	LDLBTD	MANDT	T000	MANDT	KEY	1	CN
3	LDLBTD	MATNR	MARA	MATNR	REF	1	CN
4	LDLBTD	WERKS	T001W	WERKS	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
