SAP ABAP Table EHCSMS_SPC_VAL_COMP (Valuation composition)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-SAF (Application Component) Product Safety
     ⤷ CBUI_BO (Package) Specification Management Web UI Enabling API

Basic Data

Table Category	INTTAB	Structure
Structure	EHCSMS_SPC_VAL_COMP	Table Relationship Diagram
Short Description	Valuation composition

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Transient data for specification related admin data
2	CREATED_BY	☐	EHCSM_SPC_USER_CREATE	EHCSM_SPC_NAME	CHAR	60	0	User Name That Created the Data
3	CHANGED_BY	☐	EHCSM_SPC_USER_CHANGE	EHCSM_SPC_NAME	CHAR	60	0	User Name That Last Changed the Data
4	CHANGE_NR_DESC	☐	CC_AETXT	CC_TEXT40	CHAR	40	0	Change number description
5	.INCLUDE	☐				0	0	EHS: Standard Fields for EHS API Structures
6	ERRORMODE	☐	ESEERRMODE	CHAR1	CHAR	1	0	Indicator: Error or warning in an API function
7	ERRORINFO	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
8	ERRORCLASS	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
9	ERRORPARAM	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
10	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
11	EXTINFO	☐	ESEEXTINFO	CHAR10	CHAR	10	0	External Information
12	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
13	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
14	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
15	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
16	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
17	.INCLUDE	☐				0	0	EHS: Structure for General Administration Information
18	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
19	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
20	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
21	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
22	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
23	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
24	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
25	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
26	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
27	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
28	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
29	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
30	RECNTVA	☐	ESERECNTVA	ESDRECN	NUMC	20	0	Reference to RECN for Tables ESTVA, ESTRH and ESTRI
31	COMPCAT	☐	ESECOMPCAT	ESDCOMPCAT	CHAR	10	0	Component Type	TCG76
32	COMPNAM	☐	ESECOMPNAM	TEXT40	CHAR	40	0	Desc. for the Component Type
33	RECNCMP	☐	ESERECNCMP	ESDRECN	NUMC	20	0	Reference to Specification Header of a Component
34	PRECL	☐	ESEPRECL	ESDPREC	CHAR	5	0	Operator for Lower Limit
35	COMPLOW	☐	ESECOMPLOW	ESDDEC6_4	DEC	10	4	Lower Limit of a Component Proportion
36	PRECU	☐	ESEPRECU	ESDPRECU	CHAR	5	0	Operator for Upper Limit
37	COMPUPP	☐	ESECOMPUPP	ESDDEC6_4	DEC	10	4	Upper limit of a component proportion
38	COMPAVG	☐	ESECOMPAVG	ESDDEC6_4	DEC	10	4	Target Value or Actual Value of a Component
39	COMPEXP	☐	ESECOMPEXP	MEINS	UNIT	3	0	Unit for Quantity Specification	*
40	ORD	☐	ESEORD	NUMC4	NUMC	4	0	Sort Sequence
41	COMPLOWDEC	☐	ESECOMPNUMDEC	INT4	INT4	10	0	Decimal Places for the Concentration of a Component
42	COMPUPPDEC	☐	ESECOMPNUMDEC	INT4	INT4	10	0	Decimal Places for the Concentration of a Component
43	COMPAVGDEC	☐	ESECOMPNUMDEC	INT4	INT4	10	0	Decimal Places for the Concentration of a Component
44	COMPEXCVAL	☐	ESECOMPEXCVAL	ESDCOMPEXCVAL	CHAR	2	0	Exception Value of a Component	TCG78
45	COMPEXCVALNAM	☐	ESECOMPEXCVALNAM	TEXT40	CHAR	40	0	Description of Exception Value of a Component
46	UPD_CMP	☐	ESEUPD_CMP	DATUM	DATS	8	0	Date of Last Change to Component
47	RECN_REFRH	☐	ESERECNREF	ESDRECN	NUMC	20	0	Reference to Reference Specification Header
48	OBJTYPE	☐	ESEOBJTYPE	CHAR10	CHAR	10	0	Specification Category	TCGOBJ
49	OBJTYPE_NAME	☐	ESEOBJTYPENAM	TEXT40	CHAR	40	0	Short Description of Specification Category
50	COMPAVGTXT	☐	ESECOMPAVGTXT	TEXT12	CHAR	12	0	Target Value or Actual Value of a Component
51	COMPLOWTXT	☐	ESECOMPLOWTXT	TEXT12	CHAR	12	0	Lower Limit of a Component Proportion
52	COMPUPPTXT	☐	ESECOMPUPPTXT	TEXT12	CHAR	12	0	Upper limit of a component proportion
53	SUBID	☐	ESESUBID	ESDSUBID	CHAR	12	0	Specification
54	IDENT1	☐	ESEIDENT	TEXT132	CHAR	132	0	Identifier
55	IDENT2	☐	ESEIDENT	TEXT132	CHAR	132	0	Identifier
56	ESTCAT	☐	ESEESTCAT	ESDESTCAT	CHAR	30	0	Value Assignment Type	*

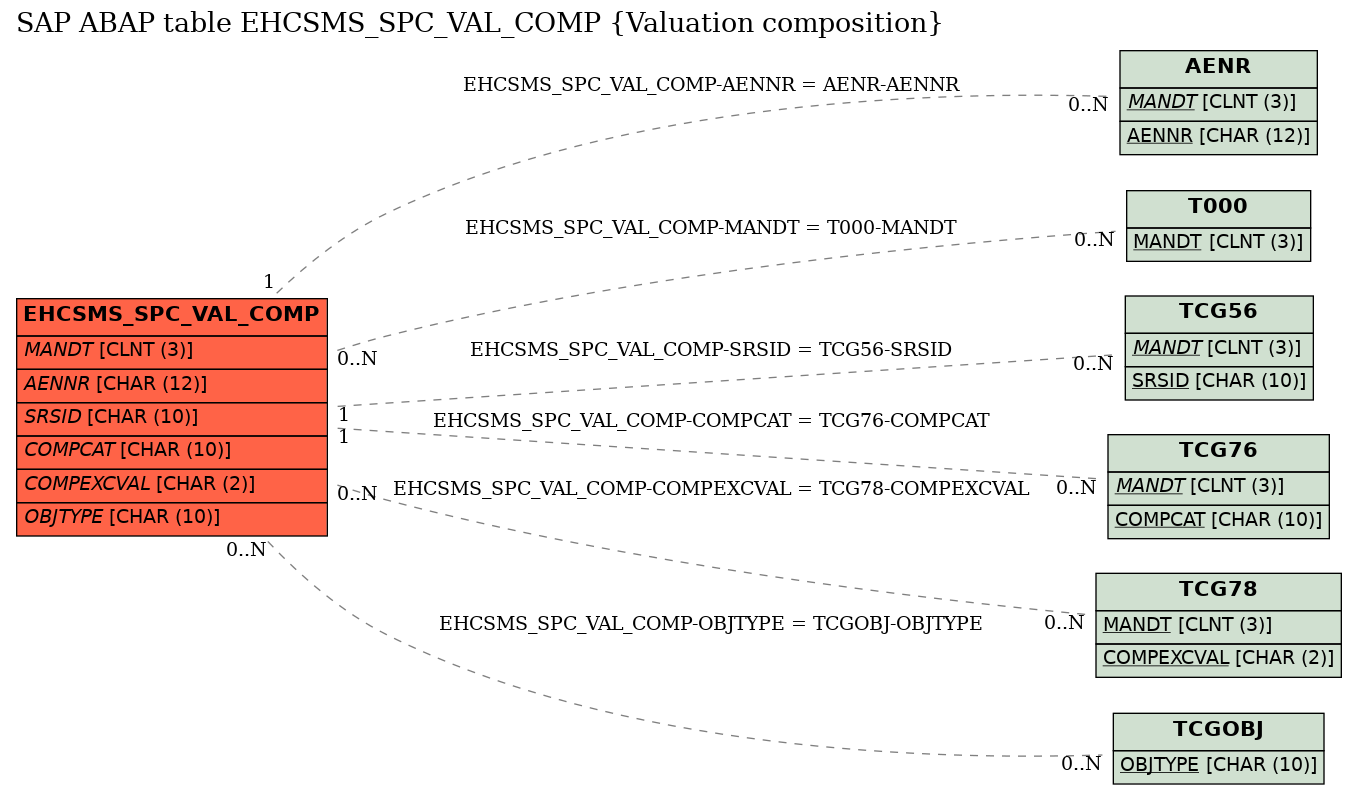

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EHCSMS_SPC_VAL_COMP	AENNR	AENR	AENNR	REF	1	CN
2	EHCSMS_SPC_VAL_COMP	COMPCAT	TCG76	COMPCAT	REF	1	CN
3	EHCSMS_SPC_VAL_COMP	COMPEXCVAL	TCG78	COMPEXCVAL
4	EHCSMS_SPC_VAL_COMP	MANDT	T000	MANDT
5	EHCSMS_SPC_VAL_COMP	OBJTYPE	TCGOBJ	OBJTYPE	REF
6	EHCSMS_SPC_VAL_COMP	SRSID	TCG56	SRSID	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	605
