SAP ABAP Table EHCSMS_SPC_MAT_ASSIGNMENT (Specification - Material Assignment)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-SAF (Application Component) Product Safety
     ⤷ CBUI_BO (Package) Specification Management Web UI Enabling API

Basic Data

Table Category	INTTAB	Structure
Structure	EHCSMS_SPC_MAT_ASSIGNMENT	Table Relationship Diagram
Short Description	Specification - Material Assignment

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Transient data for specification related admin data
2	CREATED_BY	☐	EHCSM_SPC_USER_CREATE	EHCSM_SPC_NAME	CHAR	60	0	User Name That Created the Data
3	CHANGED_BY	☐	EHCSM_SPC_USER_CHANGE	EHCSM_SPC_NAME	CHAR	60	0	User Name That Last Changed the Data
4	CHANGE_NR_DESC	☐	CC_AETXT	CC_TEXT40	CHAR	40	0	Change number description
5	.INCLUDE	☐				0	0	EHS: API Structure Substance-Material Assignment
6	.INCLUDE	☐				0	0	EHS: Standard Fields for EHS API Structures
7	ERRORMODE	☐	ESEERRMODE	CHAR1	CHAR	1	0	Indicator: Error or warning in an API function
8	ERRORINFO	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
9	ERRORCLASS	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
10	ERRORPARAM	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
11	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
12	EXTINFO	☐	ESEEXTINFO	CHAR10	CHAR	10	0	External Information
13	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
14	.INCLUDE	☐				0	0	EHS: Specification-Material Assignment
15	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
16	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
17	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
18	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
19	.INCLUDE	☐				0	0	EHS: Structure for General Administration Information
20	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
21	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
22	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
23	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
24	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
25	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
26	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
27	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
28	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
29	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
30	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
31	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
32	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
33	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
34	MAT_DESC	☐	MAKTX	TEXT40	CHAR	40	0	Material description
35	PLANT_NAME	☐	NAME1	TEXT30	CHAR	30	0	Name

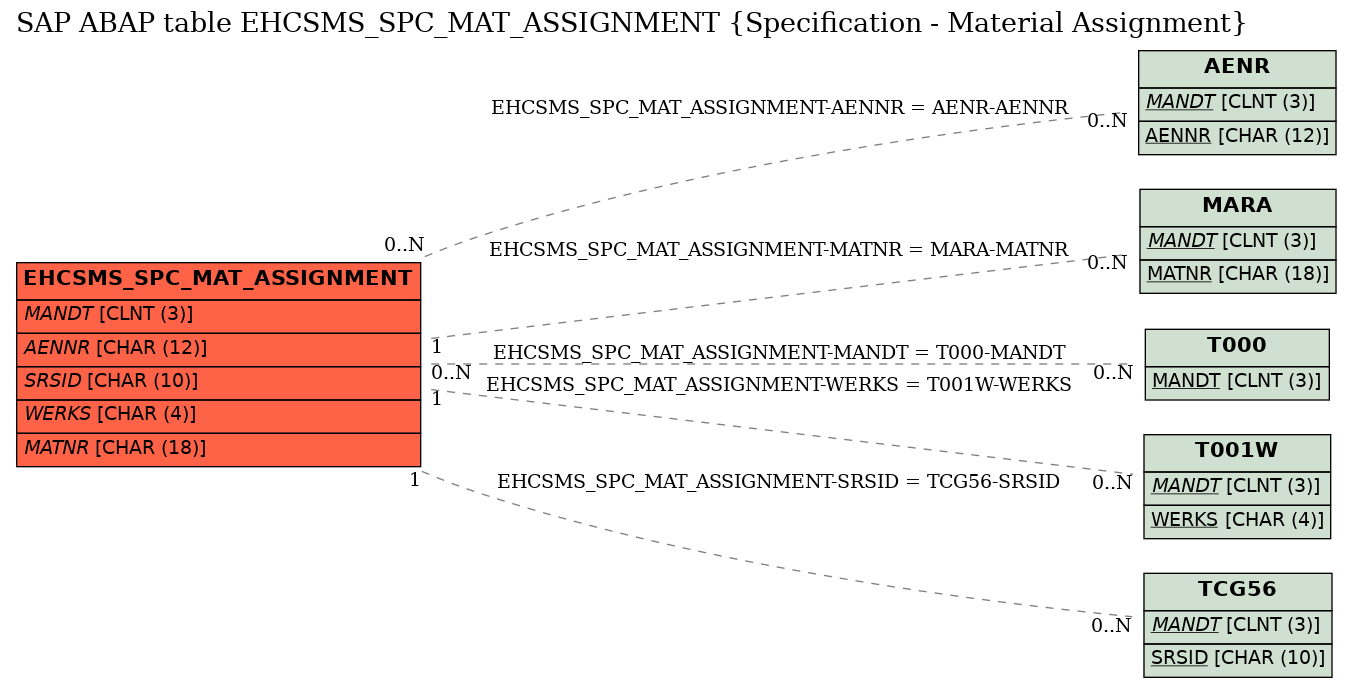

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EHCSMS_SPC_MAT_ASSIGNMENT	AENNR	AENR	AENNR
2	EHCSMS_SPC_MAT_ASSIGNMENT	MANDT	T000	MANDT
3	EHCSMS_SPC_MAT_ASSIGNMENT	MATNR	MARA	MATNR	REF	1	CN
4	EHCSMS_SPC_MAT_ASSIGNMENT	SRSID	TCG56	SRSID	REF	1	CN
5	EHCSMS_SPC_MAT_ASSIGNMENT	WERKS	T001W	WERKS	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	605
