SAP ABAP Table ECRM_ISU_BAPI_EXTENTED_RETURN (Enhanced Error Structure for BAPI ECRMISUTO)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IU (Application Component) Utilities Industry
     ⤷ IBSSI_CRMTO (Package) Technical Objects for IBS Service Industries
Basic Data
Table Category INTTAB    Structure
Structure ECRM_ISU_BAPI_EXTENTED_RETURN   Table Relationship Diagram
Short Description Enhanced Error Structure for BAPI ECRMISUTO
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Return Parameter
2 TYPE BAPI_MTYPE SYCHAR01 CHAR 1   0   Message type: S Success, E Error, W Warning, I Info, A Abort
3 ID SYMSGID ARBGB CHAR 20   0   Message Class T100A
4 NUMBER SYMSGNO SYMSGNO NUMC 3   0   Message Number
5 MESSAGE BAPI_MSG TEXT220 CHAR 220   0   Message Text
6 LOG_NO BALOGNR BALOGNR CHAR 20   0   Application log: log number BALHDR
7 LOG_MSG_NO BALMNR BALMNR NUMC 6   0   Application log: Internal message serial number BALM
8 MESSAGE_V1 SYMSGV SYCHAR50 CHAR 50   0   Message Variable
9 MESSAGE_V2 SYMSGV SYCHAR50 CHAR 50   0   Message Variable
10 MESSAGE_V3 SYMSGV SYCHAR50 CHAR 50   0   Message Variable
11 MESSAGE_V4 SYMSGV SYCHAR50 CHAR 50   0   Message Variable
12 PARAMETER BAPI_PARAM SWC_ELEM CHAR 32   0   Parameter Name
13 ROW BAPI_LINE INT4 INT4 10   0   Lines in parameter
14 FIELD BAPI_FLD FDNAME CHAR 30   0   Field in parameter *
15 SYSTEM BAPILOGSYS LOGSYS CHAR 10   0   Logical system from which message originates *
16 .INCLUDE       0   0   BAPI Structure of IS-U Technical Objects
17 OBJECTTYPE ECRM_BAPI_OBJECTTYPE ECRM_BAPI_OBJECTTYPE CHAR 10   0   BADI ECRMISUTO: Object Types
18 SEQ_NUMBER ECRM_BAPI_LFNDNUMBER CHAR7 CHAR 7   0   BAPI ECRMISUTO: Consecutive Number
19 CO_NAME_CO AD_NAME_CO TEXT40 CHAR 40   0   c/o name
20 CO_CITY1 AD_CITY1 TEXT40 CHAR 40   0   City
21 CO_CITY2 AD_CITY2 TEXT40 CHAR 40   0   District
22 CO_CITY_CODE AD_CITYNUM CITY_CODE CHAR 12   0   City code for city/street file *
23 CO_CITYP_CODE AD_CITYPNM CITYP_CODE CHAR 8   0   District code for City and Street file *
24 CO_HOME_CITY AD_CITY3 TEXT40 CHAR 40   0   City (different from postal city)
25 CO_CITYH_CODE AD_CITYHNM CITY_CODE CHAR 12   0   Different city for city/street file *
26 CO_CHCKSTATUS AD_CHECKST AD_CHECKST CHAR 1   0   City file test status
27 CO_REGIOGROUP REGIOGROUP REGIOGROUP CHAR 8   0   Regional structure grouping *
28 CO_POST_CODE1 AD_PSTCD1 CHAR10 CHAR 10   0   City postal code
29 CO_POST_CODE2 AD_PSTCD2 CHAR10 CHAR 10   0   PO Box postal code
30 CO_POST_CODE3 AD_PSTCD3 CHAR10 CHAR 10   0   Company postal code (for large customers)
31 CO_PCODE1_EXT AD_PST1XT CHAR10 CHAR 10   0   (Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
32 CO_PCODE2_EXT AD_PST2XT CHAR10 CHAR 10   0   (Not Supported) PO Box Postal Code Extension
33 CO_PCODE3_EXT AD_PST3XT CHAR10 CHAR 10   0   (Not Supported) Major Customer Postal Code Extension
34 CO_PO_BOX AD_POBX CHAR10 CHAR 10   0   PO Box
35 CO_DONT_USE_P AD_NO_USEP AD_NO_USE CHAR 4   0   PO Box Address Undeliverable Flag *
36 CO_PO_BOX_NUM AD_POBXNUM XFELD CHAR 1   0   Flag: PO Box without number
37 CO_PO_BOX_LOC AD_POBXLOC TEXT40 CHAR 40   0   PO Box city
38 CO_CITY_CODE2 AD_CIT2NUM CITY_CODE CHAR 12   0   City PO box code (City file) *
39 CO_PO_BOX_REG AD_POBXREG REGIO CHAR 3   0   Region for PO Box (Country, State, Province, ...) *
40 CO_PO_BOX_CTY AD_POBXCTY LAND1 CHAR 3   0   PO box country *
41 CO_POSTALAREA AD_PSTLAR TEXT15 CHAR 15   0   (Not Supported) Post Delivery District
42 CO_TRANSPZONE LZONE ZONE CHAR 10   0   Transportation zone to or from which the goods are delivered *
43 CO_STREET AD_STREET TEXT60 CHAR 60   0   Street
44 CO_DONT_USE_S AD_NO_USES AD_NO_USE CHAR 4   0   Street Address Undeliverable Flag *
45 CO_STREETCODE AD_STRNUM STRT_CODE CHAR 12   0   Street Number for City/Street File *
46 CO_STREETABBR AD_STRABBR STRTYPEAB CHAR 2   0   (Not Supported) Abbreviation of Street Name *
47 CO_HOUSE_NUM1 AD_HSNM1 TEXT10 CHAR 10   0   House Number
48 CO_HOUSE_NUM2 AD_HSNM2 TEXT10 CHAR 10   0   House number supplement
49 CO_HOUSE_NUM3 AD_HSNM3 TEXT10 CHAR 10   0   (Not supported) House Number Range
50 CO_STR_SUPPL1 AD_STRSPP1 TEXT40 CHAR 40   0   Street 2
51 CO_STR_SUPPL2 AD_STRSPP2 TEXT40 CHAR 40   0   Street 3
52 CO_STR_SUPPL3 AD_STRSPP3 TEXT40 CHAR 40   0   Street 4
53 CO_LOCATION AD_LCTN TEXT40 CHAR 40   0   Street 5
54 CO_BUILDING AD_BLDNG TEXT20 CHAR 20   0   Building (Number or Code)
55 CO_FLOOR AD_FLOOR TEXT10 CHAR 10   0   Floor in building
56 CO_ROOMNUMBER AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
57 CO_COUNTRY LAND1 LAND1 CHAR 3   0   Country Key *
58 CO_LANGU SPRAS SPRAS LANG 1   0   Language Key *
59 CO_REGION REGIO REGIO CHAR 3   0   Region (State, Province, County) *
60 CO_SORT1 AD_SORT1 CHAR20 CHAR 20   0   Search Term 1
61 CO_SORT2 AD_SORT2 CHAR20 CHAR 20   0   Search Term 2
62 CO_SORT_PHN AD_SRTPHN CHAR20 CHAR 20   0   (Not Supported) Phonetic Search Sort Field
63 CO_ADDRORIGIN AD_ORIGINA AD_ORIGIN CHAR 4   0   (Not Supported) Address Data Source (Key) *
64 CO_EXTENSION1 AD_EXTENS1 TEXT40 CHAR 40   0   Extension (only for data conversion) (e.g. data line)
65 CO_EXTENSION2 AD_EXTENS2 TEXT40 CHAR 40   0   Extension (only for data conversion) (e.g. telebox)
66 CO_TIME_ZONE AD_TZONE TZNZONE CHAR 6   0   Address time zone *
67 CO_TAXJURCODE AD_TXJCD AD_TXJCD CHAR 15   0   Tax Jurisdiction
68 CO_ADDRESS_ID AD_ADDR_ID AD_ADDR_ID CHAR 10   0   (Not supported) Physical address ID
69 CO_REMARK AD_REMARK1 TEXT50 CHAR 50   0   Address notes
70 CO_LANGU_CREA AD_LANGUCR SPRAS LANG 1   0   Address record creation original language *
71 CO_DEFLT_COMM AD_COMM AD_COMM CHAR 3   0   Communication Method (Key) (Business Address Services) *
72 CO_TPLNR EHAU_TPLNR_UI   CHAR 30   0   Connection Object
73 CO_SHTXT EHAU_SHTXT_UI   CHAR 40   0   Description
74 CO_STATUS EHAU_STATUS_UI   CHAR 2   0   Status
75 CO_SWERK EHAU_SWERK_UI   CHAR 4   0   Maintenance Plant
76 CO_AEDAT EHAU_AEDAT_UI   DATS 8   0   Last Changed On
77 CO_AENAM EHAU_AENAM_UI   CHAR 12   0   Last Changed By
78 CO_ERDAT EHAU_ERDAT_UI   DATS 8   0   Date on Which Object Was Created
79 CO_ERNAM EHAU_ERNAM_UI   CHAR 12   0   User Who Created Object
80 CO_BEGRU EHAU_BEGRU_UI   CHAR 4   0   Authorization Group
81 CO_COUNC EHAU_COUNC_UI EHAU_COUNC CHAR 3   0   County code *
82 CO_FLTYP EHAU_FLTYP_UI   CHAR 1   0   Type of Connection Object
83 CO_LOEVM EHAU_LOEVM_UI   CHAR 1   0   Deletion Indicator
84 CO_REGPOLIT EHAU_REGPOLIT_UI   CHAR 8   0   Political Regional Structure Element
85 CO_NOTETEXT1 EHAU_NOTE_TEXT1_UI   CHAR 50   0   Meter Reading Note 1
86 CO_NOTETEXT2 EHAU_NOTE_TEXT2_UI   CHAR 50   0   Meter Reading Note 2
87 CO_NOTETEXT3 EHAU_NOTE_TEXT3_UI   CHAR 50   0   Meter Reading Note 3
88 VS_FLOOR AD_FLOOR TEXT10 CHAR 10   0   Floor in building
89 VS_ROOMNUMBER AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
90 VS_STR_SUPPL1 AD_STRSPP1 TEXT40 CHAR 40   0   Street 2
91 VS_STR_SUPPL3 AD_STRSPP3 TEXT40 CHAR 40   0   Street 4
92 VS_HOUSE_NUM2 AD_HSNM2 TEXT10 CHAR 10   0   House number supplement
93 VS_VSTELLE EUI_VSTELLE_UI   CHAR 10   0   Premise
94 VS_LGZUSATZ EUI_LGZUSATZ_UI   CHAR 40   0   Additional Information on Location
95 VS_VBSART ECRM_ISU_VBSART ECRM_ISU_VBSART CHAR 8   0   IS-U Premise Type *
96 VS_ANZPERS EUI_ANZPERS_UI   NUMC 3   0   Number of Persons in a Premise
97 PD_INT_UI EUI_INT_UI_UI EUI_INT_UI CHAR 22   0   Point of Delivery
98 PD_EXT_UI EUI_EXT_UI_UI EUI_EXT_UI CHAR 50   0   Point of Delivery ID
99 PD_SHTXT EUI_SHTXT_UI TEXT40 CHAR 40   0   Description
100 PD_SPARTE SPART SPART CHAR 2   0   Division
101 PD_AEDAT EUI_AEDAT_UI   DATS 8   0   Last Changed on
102 PD_AENAM EUI_AENAM_UI   CHAR 12   0   Last Changed By
103 PD_ERDAT EUI_ERDAT_UI   DATS 8   0   Date on Which Object Was Created
104 PD_ERNAM EUI_ERNAM_UI   CHAR 12   0   User Who Created Object
105 PD_EUIROLED EUI_EUIROLE_DEREG_UI   CHAR 1   0   Deregulation Point of Delivery
106 PD_EUIROLET EUI_EUIROLE_TECH_UI   CHAR 1   0   Technical Point of Delivery
107 PD_LOEVM EUI_LOEVM_UI   CHAR 1   0   Deletion Indicator
108 PD_STATUS EUI_STATUS_UI   CHAR 2   0   Status
109 PD_UICAT EUI_UICATEGORY_UI ECRM_ISU_UICATEGORY NUMC 2   0   Point of Delivery Category
110 PD_UITYPE ECRM_ISU_UITYPE ECRM_ISU_UITYPE CHAR 4   0   IS-U Point of Delivery Type *
111 PD_GRID_LTYP EUI_GRID_LEVEL_TYPE EUI_GRID_LEVEL_TYPE CHAR 4   0   Grid Level Type
112 PD_GRID_LEVL EUI_GRID_LEVEL EUI_GRID_LEVEL CHAR 10   0   Grid Level
113 PD_GRID_ID EUI_GRID_ID EUI_GRID_ID CHAR 10   0   Grid
114 PD_OUTL_CONT EUI_OUTL_CONTRACT EUI_OUTL_CONTRACT CHAR 1   0   Outline Contract Indicator
115 PD_PARTNER1 EUI_PARTNER1_UI   CHAR 10   0   Business Partner for Service 1
116 PD_PARTNER2 EUI_PARTNER2_UI   CHAR 10   0   Business Partner for Service 2
117 PD_PARTNER3 EUI_PARTNER3_UI   CHAR 10   0   Business Partner for Service 3
118 PD_SERVICE1 EUI_SERVICE1_UI   CHAR 4   0   Service Type 1
119 PD_SRVTEXT1 EUI_SERVICETEXT1_UI   CHAR 25   0   Text for Service Type 1
120 PD_SERVICE2 EUI_SERVICE2_UI   CHAR 4   0   Service Type 2
121 PD_SRVTEXT2 EUI_SERVICETEXT2_UI   CHAR 25   0   Text for Service Type 2
122 PD_SERVICE3 EUI_SERVICE3_UI   CHAR 4   0   Service Type 3
123 PD_SRVTEXT3 EUI_SERVICETEXT3_UI   CHAR 25   0   Text for Service Type 3
124 LANGU SPRAS SPRAS LANG 1   0   Language Key *

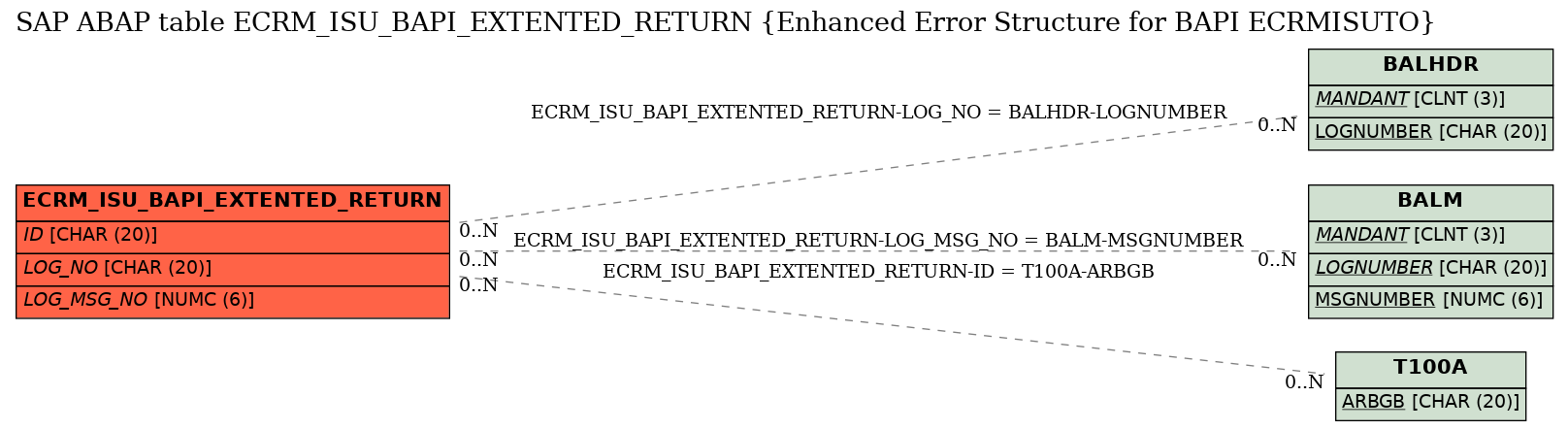

Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 ECRM_ISU_BAPI_EXTENTED_RETURN ID T100A ARBGB
2 ECRM_ISU_BAPI_EXTENTED_RETURN LOG_MSG_NO BALM MSGNUMBER
3 ECRM_ISU_BAPI_EXTENTED_RETURN LOG_NO BALHDR LOGNUMBER
History
Last changed by/on SAP  20141013
SAP Release Created in 400
