SAP ABAP Table ECAMIOPRCIMR_MID (IS-U Parking: Scrn.Data f. Conts./Insts./Mt.Rd.Res. (Mv-In))

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-CS-BT-IO (Application Component) Move-In/Out
     ⤷ EE06A (Package) IS-U: Fast Entry for Move-In/Move-Out/Move-In/Out

Basic Data

Table Category	INTTAB	Structure
Structure	ECAMIOPRCIMR_MID	Table Relationship Diagram
Short Description	IS-U Parking: Scrn.Data f. Conts./Insts./Mt.Rd.Res. (Mv-In)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IS-U Parking: Scrn. Data for Contrs./Installs./Met.Read.Res.
2	.INCLUDE	☐				0	0	IS-U Parking: Screen Data for Contracts and Installations
3	SPARTE	☐	SPARTE	SPART	CHAR	2	0	Division	*
4	SPARTE_TXT	☐	VTXTK	TEXT20	CHAR	20	0	Name
5	SERVICE	☐	SERCODE	SERVCAT	CHAR	4	0	Service Type	*
6	SERVICE_TXT	☐	SERVICETEXT	TEXT25	CHAR	25	0	Text for Service Type
7	ANLAGE	☐	ANLAGE	ANLAGE	CHAR	10	0	Installation	*
8	VERTRAG	☐	VERTRAG	VERTRAG	CHAR	10	0	Contract	*
9	CRM_PRODUCT	☐	ESALES_CRM_PRODUCT	ESALES_CRM_PRODUCT	CHAR	40	0	CRM Product
10	AMIO_PRODUCT	☐	ECAMIO_PRODUCT	ESALES_CRM_PRODUCT	CHAR	40	0	Template for Creating Contract
11	PRODID	☐	EPD_PRODID	EPD_PRODID	CHAR	20	0	Node to Describe Master Data Template	*
12	STATUS	☐	ECAMIO_STATUS	ECAMIO_STATUS	CHAR	2	0	Parked Document Status
13	STATUSICON	☐	ECAMIO_STATUSICON	SYCHAR132	CHAR	132	0	Parked Document Status
14	XMOVEIN	☐	ECAMIO_XMOVEIN	KENNZX	CHAR	1	0	Indicator: Create Move-In
15	XMOVEOUT	☐	ECAMIO_XMOVEOUT	KENNZX	CHAR	1	0	Indicator: Create Move-Out
16	XMOVEOUTPRED	☐	ECAMIO_XMOVEOUTPRED	KENNZX	CHAR	1	0	End Previous Contract with Move-Out
17	XCHANGE_INSTLN	☐	KENNZX	KENNZX	CHAR	1	0	Indicators
18	.INCLUDE	☐				0	0	ECAMIOPRCI: BB Plan Parameter f. Calling Mast.Data Generator
19	XBBPCREATE	☐	ECAMIO_XBBPCREATE	KENNZX	CHAR	1	0	Indicator: Create Budget Billing Plan
20	ABSBETRW	☐	ABSBETRW	WRTV7	CURR	13	2	Budget billing amount in transaction currency
21	WAERS	☐	BLWAE_KK	WAERS	CUKY	5	0	Transaction Currency	*
22	.INCLUDE	☐				0	0	ECAMIOPRCI: Parameter Security for Calling MD Generator
23	SEC_TOT_AMOUNT	☐	REQUEST_KK	WERT6	CURR	11	2	Requested Amount for Security Deposit
24	SEC_REASON	☐	REASON_KK	REASON_KK	CHAR	4	0	Reason for Requesting a Security Deposit	TFK_SEC_REASON
25	SECWAIVEREAS	☐	SECWAIVEREAS	SECWAIVEREAS	CHAR	4	0	Reason for exemption from security	ESECWR
26	.INCLUDE	☐				0	0	ECAMIOPRCI: Parameter for Calling Master Data Generator
27	SERVICEID	☐	SERVICE_PROV	SERVICE_PROV	CHAR	10	0	Service Provider	ESERVPROV
28	INVOICING_PARTY	☐	INVOICING_PARTY	SERVICE_PROV	CHAR	10	0	Service Provider That Invoices the Contract	ESERVPROV
29	SERVPROV_PAY	☐	SERVPROV_PAY	SERVPROV_PAY	CHAR	4	0	Payment Class	ESERVPROV_PAY
30	.INCLUDE	☐				0	0
31	.INCLUDE	☐				0	0	IS-U Parking: Screen Data for Meter Reading Results
32	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	*
33	ZWNUMMER	☐	E_ZWNUMMER	LFDNR3	NUMC	3	0	Register
34	GERNR	☐	GERAET	GERNR	CHAR	18	0	Device
35	.INCLUDE	☐				0	0	ECAMIOPRMR: Parameters for Calling Master Data Generator
36	ZWSTAND	☐	E_ZWSTAND	E_ZWSTAND	CHAR	36	0	Meter reading recorded
37	ABLHINW	☐	ABLHINW	ABLHINW	CHAR	4	0	Note from meter reader	TE259
38	ISTABLART	☐	ISTABLART	ISTABLART	CHAR	2	0	Meter reading type	*
39	ABLESER	☐	ABLESER	ABLESER	CHAR	3	0	Meter reader number	TE115
40	.INCLUDE	☐				0	0
41	.INCLUDE	☐				0	0	Screen Fields for Meter Reading Processing: Texts
42	ISTABART_TXT	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
43	ABLESER_NAME	☐	NAME1	TEXT30	CHAR	30	0	Name
44	ZWART	☐	E_ZWART	E_ZWART	CHAR	2	0	Register type	TE523
45	ZWTYP	☐	E_ZWTYP	E_ZWTYP	NUMC	2	0	Register category
46	ABLSTAT	☐	ABLSTAT	ABLSTAT	CHAR	1	0	Meter Reading Status
47	PRMR_ZWST	☐	E_ZWSTANDPREV	E_ZWSTAND	CHAR	36	0	Previous Meter Reading Result of Register
48	PRMR_ADAT	☐	ADATPREV	DATUM	DATS	8	0	Date of Previous Meter Reading for Register
49	PRMR_ATIM	☐	ATIMPREV	HHMM	CHAR	4	0	Meter Reading Time of Previous Meter Reading for Register
50	CHANGE	☐	KENNZX	KENNZX	CHAR	1	0	Indicators
51	CHECK_ERROR	☐	KENNZX	KENNZX	CHAR	1	0	Indicators
52	ERROR_FIELD	☐	FIELD	FIELD	CHAR	10	0	Field
53	CT	☐	LVC_T_STYL		TTYP	0	0

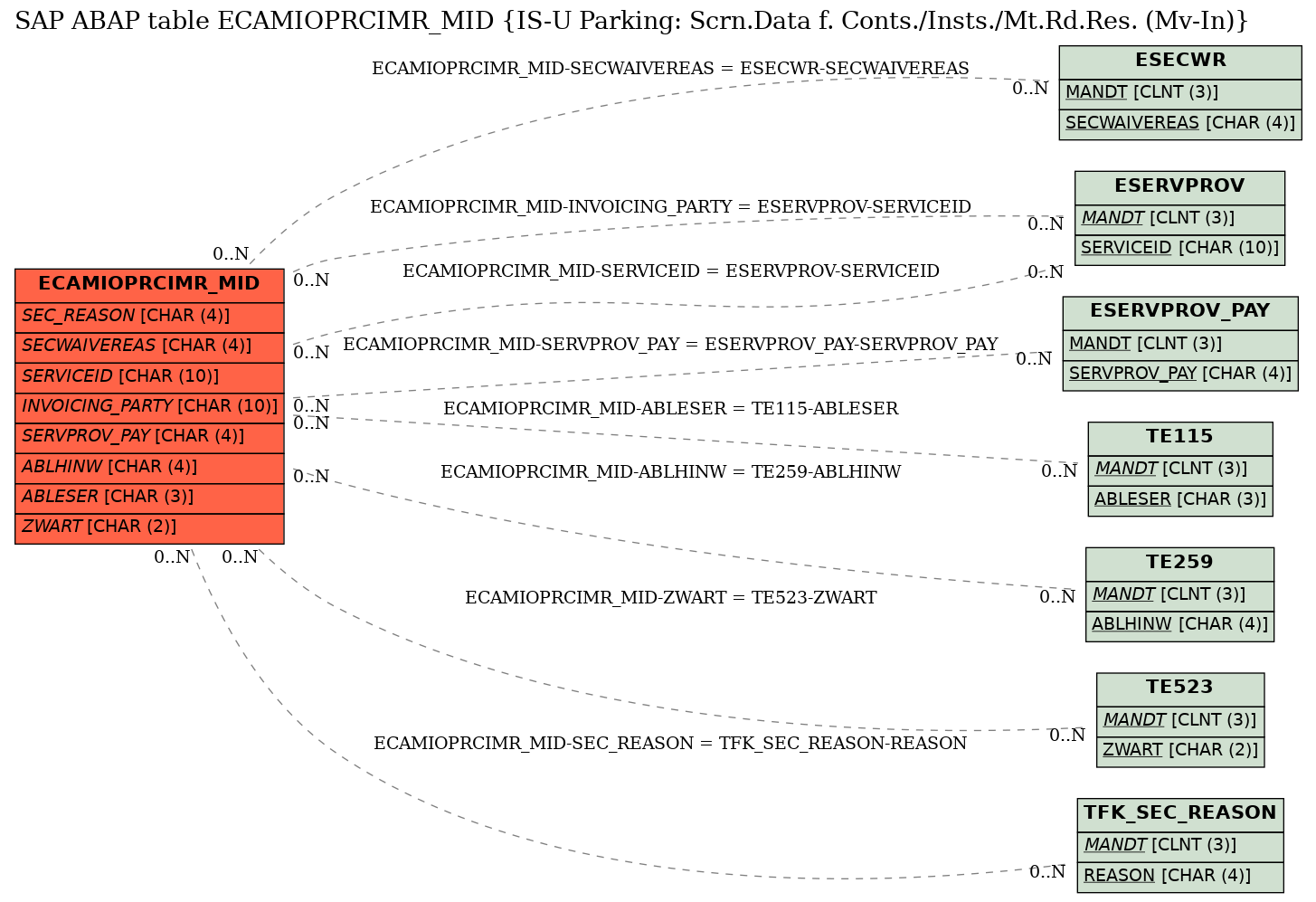

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ECAMIOPRCIMR_MID	ABLESER	TE115	ABLESER
2	ECAMIOPRCIMR_MID	ABLHINW	TE259	ABLHINW
3	ECAMIOPRCIMR_MID	INVOICING_PARTY	ESERVPROV	SERVICEID
4	ECAMIOPRCIMR_MID	SECWAIVEREAS	ESECWR	SECWAIVEREAS
5	ECAMIOPRCIMR_MID	SEC_REASON	TFK_SEC_REASON	REASON
6	ECAMIOPRCIMR_MID	SERVICEID	ESERVPROV	SERVICEID
7	ECAMIOPRCIMR_MID	SERVPROV_PAY	ESERVPROV_PAY	SERVPROV_PAY
8	ECAMIOPRCIMR_MID	ZWART	TE523	ZWART

History

Last changed by/on	SAP	20050224
SAP Release Created in	464
