SAP ABAP Table EAMS_S_BO_WCM_WCD_HEADER (Business Object Work Clearance Document - Header)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PM (Application Component) Plant Maintenance
     ⤷ EAMS_BO_MISC (Package) Miscellaneous for Business Object

Basic Data

Table Category	INTTAB	Structure

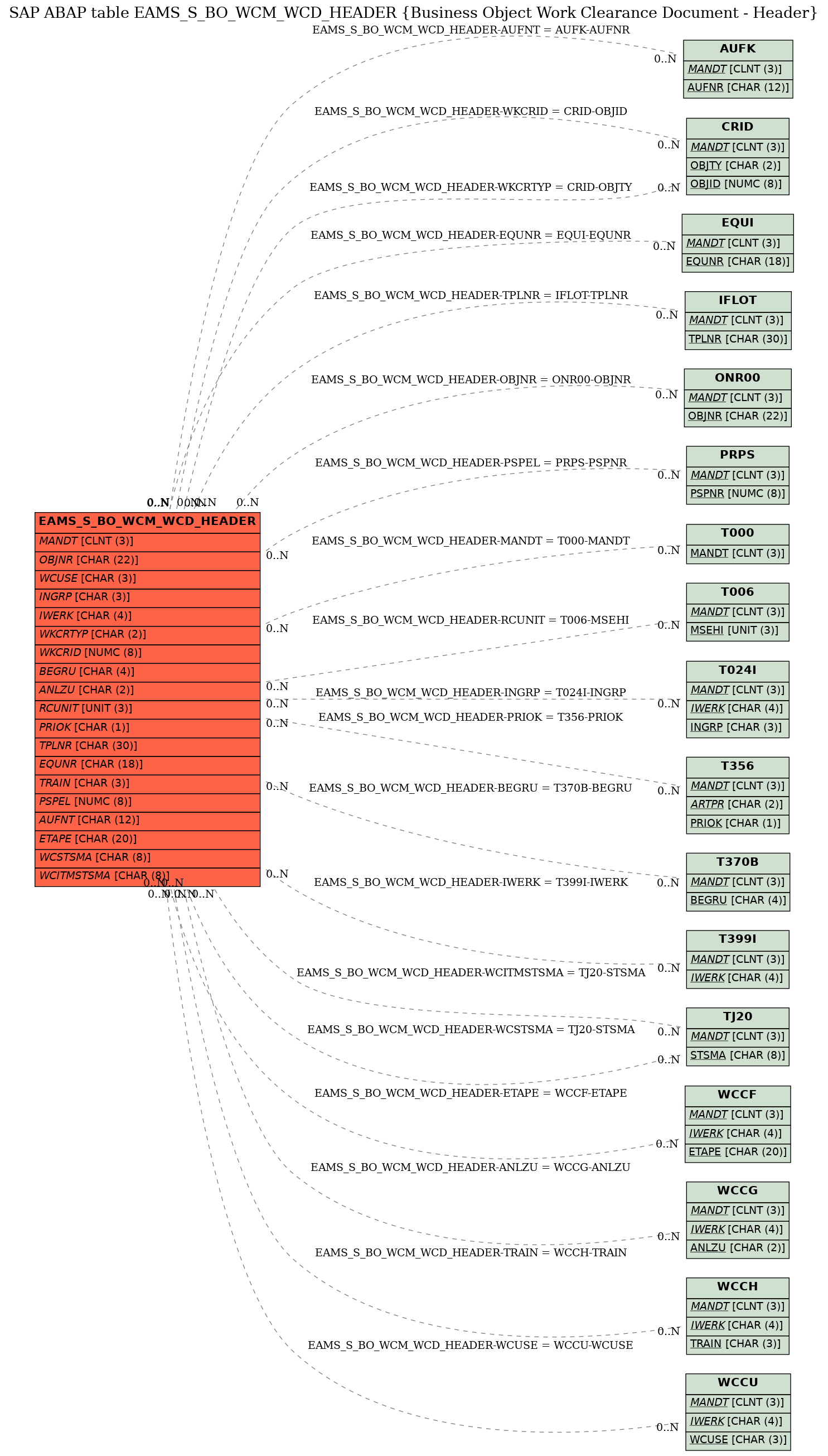

Structure	EAMS_S_BO_WCM_WCD_HEADER	Table Relationship Diagram
Short Description	Business Object Work Clearance Document - Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EAMS ID structure for Work Clearance Document
2	EAMS_WCNR	☐	WCEWCNR	WCDNO	CHAR	12	0	Work Clearance Document
3	.INCLUDE	☐				0	0	WCM: Work Clearance Document (Header)
4	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
5	WCNR	☐	WCEWCNR	WCDNO	CHAR	12	0	Work Clearance Document
6	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
7	WCTYP	☐	WCETYP	WCDTYP	CHAR	1	0	Type of WCM Object
8	WCUSE	☐	WCEUSAGE	WCDUSAGE	CHAR	3	0	Usage of WCM Object	WCCU
9	STXT	☐	WCESTXT	TEXT40	CHAR	40	0	Descriptive Short Text
10	LFLG	☐	WCELTXTFLG	WCDFLG	CHAR	1	0	Long Text Exists
11	DELFLG	☐	WCEDELFLG	WCDFLG	CHAR	1	0	Delete
12	UNTGFLG	☐	WCEUNLTXTFLG	WCDFLG	CHAR	1	0	Untagging Text Exists
13	TGFLG	☐	WCETGLTXTFLG	WCDFLG	CHAR	1	0	Tagging Text Exists
14	CATFLG1	☐	WCECATFLG	WCDFLG	CHAR	1	0	Catalog Exists
15	CATFLG2	☐	WCECATFLG	WCDFLG	CHAR	1	0	Catalog Exists
16	INGRP	☐	INGRP	INGRP	CHAR	3	0	Planner Group for Customer Service and Plant Maintenance	T024I
17	IWERK	☐	IWERK	WERKS	CHAR	4	0	Maintenance Planning Plant	T399I
18	WKCRTYP	☐	CR_OBJTY	CR_OBJTY	CHAR	2	0	Object types of the CIM resource	CRID
19	WKCRID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	CRID
20	BEGRU	☐	IAUTG	IAUTG	CHAR	4	0	Authorization Group for Technical Object	T370B
21	.INCLUDE	☐				0	0	WCM: Valid From/Valid To
22	DATEFR	☐	WCEDATEFR	SYDATS	DATS	8	0	Valid-From Date for WCM Object
23	TIMEFR	☐	WCETIMEFR	SYTIME	TIMS	6	0	Valid-From Time for WCM Object
24	DATETO	☐	WCEDATETO	SYDATS	DATS	8	0	Valid-To Date for WCM Object
25	TIMETO	☐	WCETIMETO	SYTIME	TIMS	6	0	Valid-To Time for WCM Object
26	ANLZU	☐	WCEANLZU	CHAR2	CHAR	2	0	Overall Condition of Technical System	WCCG
27	RCTIME	☐	WCERECTIME	WCDRECTIME	QUAN	5	0	Recall Time
28	RCUNIT	☐	WCERECUNIT	MEINS	UNIT	3	0	Unit of Recall Time	T006
29	PRIOK	☐	PRIOK	PRIOK	CHAR	1	0	Priority	T356
30	TPLNR	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	IFLOT
31	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
32	LNKFLG	☐	WCELNKFLG	WCDFLG	CHAR	1	0	Object List Exists
33	TRAIN	☐	WCETRAIN	CHAR3	CHAR	3	0	Train	WCCH
34	.INCLUDE	☐				0	0	WCM: I/O Administrative Info
35	.INCLUDE	☐				0	0	WCM: I/O Administration Data (Create)
36	CRNAME	☐	WCECRNAME	USNAM	CHAR	12	0	Created by
37	CRDATE	☐	WCECRDATE	DATUM	DATS	8	0	Date on Which the Object Was Created
38	CRTIME	☐	WCECRTIME	UZEIT	TIMS	6	0	Time at Which Object was Created
39	.INCLUDE	☐				0	0	WCM: I/O Administration Info (Change)
40	CHNAME	☐	WCECHNAME	USNAM	CHAR	12	0	Last Changed By
41	CHDATE	☐	WCECHDATE	DATUM	DATS	8	0	Date on Which Object was Last Changed
42	CHTIME	☐	WCECHTIME	UZEIT	TIMS	6	0	Time at Which Object was Last Changed
43	.INCLUDE	☐				0	0	WCM: I/O Planning Data
44	PSPEL	☐	PS_PSP_PNR	PS_POSNR	NUMC	8	0	Work Breakdown Structure Element (WBS Element)	PRPS
45	AUFNT	☐	CO_TEILNET	AUFNR	CHAR	12	0	Number of superior network	AUFK
46	VORNR	☐	CN_VORNRT	VORNR	CHAR	4	0	Activity number replaced by sub-network
47	.INCLUDE	☐				0	0	WCM: I/O Basic Date
48	BDATE	☐	CO_GSTRP	DATUM	DATS	8	0	Basic start date
49	BTIME	☐	CO_GSUZP	UHRZT	TIMS	6	0	Basic start time
50	EDATE	☐	CO_GLTRP	DATUM	DATS	8	0	Basic finish date
51	ETIME	☐	CO_GLUZP	UHRZT	TIMS	6	0	Basic finish (time)
52	.INCLUDE	☐				0	0	WCM: I/O Scheduled
53	TSDATE	☐	CO_GSTRS	DATUM	DATS	8	0	Scheduled start
54	TSTIME	☐	CO_GSUZS	ATIME	TIMS	6	0	Scheduled Start (Time)
55	TFDATE	☐	CO_GLTRS	DATUM	DATS	8	0	Scheduled finish
56	TFTIME	☐	CO_GLUZS	UHRZT	TIMS	6	0	Scheduled finish time
57	ESDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
58	ESTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
59	EFDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
60	EFTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
61	LSDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
62	LSTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
63	LFDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
64	LFTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
65	PSDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
66	PSTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
67	PFDATE	☐	WCEDATE	DATUM	DATS	8	0	Date
68	PFTIME	☐	WCETIME	UZEIT	TIMS	6	0	Time
69	.INCLUDE	☐				0	0	WCM: I/O Actual Date
70	ASDATE	☐	CO_GSTRI	DATUM	DATS	8	0	Actual start date
71	ASTIME	☐	CO_GSUZI	UHRZT	TIMS	6	0	Actual start time
72	AFDATE	☐	CO_GLTRI	DATUM	DATS	8	0	Actual finish date
73	AFTIME	☐	WCEAFTIME	UZEIT	TIMS	6	0	Actual End Date (Time)
74	ETAPE	☐	WCEETAPE	CHAR20	CHAR	20	0	Revision Phase	WCCF
75	DOCFLG	☐	WCEDOCFLG	WCDFLG	CHAR	1	0	Linked to Document
76	WCSTSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
77	WCITMSTSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
78	REFOBJ	☐	WCEREFOBJ	J_OBJNR	CHAR	22	0	Template (Object Number)	*
79	REMARKFLG1	☐	WCEREMARKFLG1	WCDFLG	CHAR	1	0	Remarks (Maintenance) Exist
80	REMARKFLG2	☐	WCEREMARKFLG2	WCDFLG	CHAR	1	0	Remarks (Operation) Exist
81	.INCLUDE	☐				0	0
82	.INCLUDE	☐				0	0	EAMS. Additional Data for WC Document
83	SYSST	☐	ILOM_STTXS	TEXT40	CHAR	40	0	Display lines for system status
84	USRST	☐	ILOM_STTXU	TEXT40	CHAR	40	0	Display lines for user status
85	APPROVALSTATUS	☐	EAMS_WCM_APPROVALTEXT		CHAR	35	0	Work Clearance Management Approval Status
86	WAPIUSEX	☐	WCEUSAGEX	TEXT40	CHAR	40	0	Description of Usage
87	PLANNING_PLANT_TXT	☐	NAME1	TEXT30	CHAR	30	0	Name
88	MAINT_WORK_CENTER	☐	GEWRK	ARBPL	CHAR	8	0	Main work center for maintenance tasks
89	MAINT_WORK_CENTER_TXT	☐	AP_KTEXT	TEXT40	CHAR	40	0	Short text for the work center
90	MAINWRKCENTER_PLANT	☐	WERGW	WERKS	CHAR	4	0	Plant associated with main work center	*
91	MAINWRKCENTER_PLANT_TXT	☐	NAME1	TEXT30	CHAR	30	0	Name
92	SYSTEM_CONDITION_TXT	☐	WCEANLZUX	TEXT40	CHAR	40	0	Text for Overall Condition of Operational System
93	PRIORITY_TXT	☐	PRIOKX	TEXT20	CHAR	20	0	Priority Text
94	REVISION_LEVEL_TXT	☐	WCEETAPEX	TEXT40	CHAR	40	0	Text for Revision Phase
95	WCMTYPE_TXT	☐	EAMS_WCMTYPE_TXT	CHAR15	CHAR	15	0	Work Clearance Management Type

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EAMS_S_BO_WCM_WCD_HEADER	ANLZU	WCCG	ANLZU
2	EAMS_S_BO_WCM_WCD_HEADER	AUFNT	AUFK	AUFNR
3	EAMS_S_BO_WCM_WCD_HEADER	BEGRU	T370B	BEGRU
4	EAMS_S_BO_WCM_WCD_HEADER	EQUNR	EQUI	EQUNR
5	EAMS_S_BO_WCM_WCD_HEADER	ETAPE	WCCF	ETAPE
6	EAMS_S_BO_WCM_WCD_HEADER	INGRP	T024I	INGRP
7	EAMS_S_BO_WCM_WCD_HEADER	IWERK	T399I	IWERK
8	EAMS_S_BO_WCM_WCD_HEADER	MANDT	T000	MANDT
9	EAMS_S_BO_WCM_WCD_HEADER	OBJNR	ONR00	OBJNR
10	EAMS_S_BO_WCM_WCD_HEADER	PRIOK	T356	PRIOK
11	EAMS_S_BO_WCM_WCD_HEADER	PSPEL	PRPS	PSPNR
12	EAMS_S_BO_WCM_WCD_HEADER	RCUNIT	T006	MSEHI
13	EAMS_S_BO_WCM_WCD_HEADER	TPLNR	IFLOT	TPLNR
14	EAMS_S_BO_WCM_WCD_HEADER	TRAIN	WCCH	TRAIN
15	EAMS_S_BO_WCM_WCD_HEADER	WCITMSTSMA	TJ20	STSMA
16	EAMS_S_BO_WCM_WCD_HEADER	WCSTSMA	TJ20	STSMA
17	EAMS_S_BO_WCM_WCD_HEADER	WCUSE	WCCU	WCUSE
18	EAMS_S_BO_WCM_WCD_HEADER	WKCRID	CRID	OBJID
19	EAMS_S_BO_WCM_WCD_HEADER	WKCRTYP	CRID	OBJTY

History

Last changed by/on	SAP	20131127
SAP Release Created in	606
