SAP ABAP Table CRMS_FS_ACTIVITY_H_COM (Interface structure for activity)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IFS-BF (Application Component) Basic Functions
     ⤷ CRM_FS_INTEGRATION_APIS (Package) FS : Integration APIs

Basic Data

Table Category	INTTAB	Structure

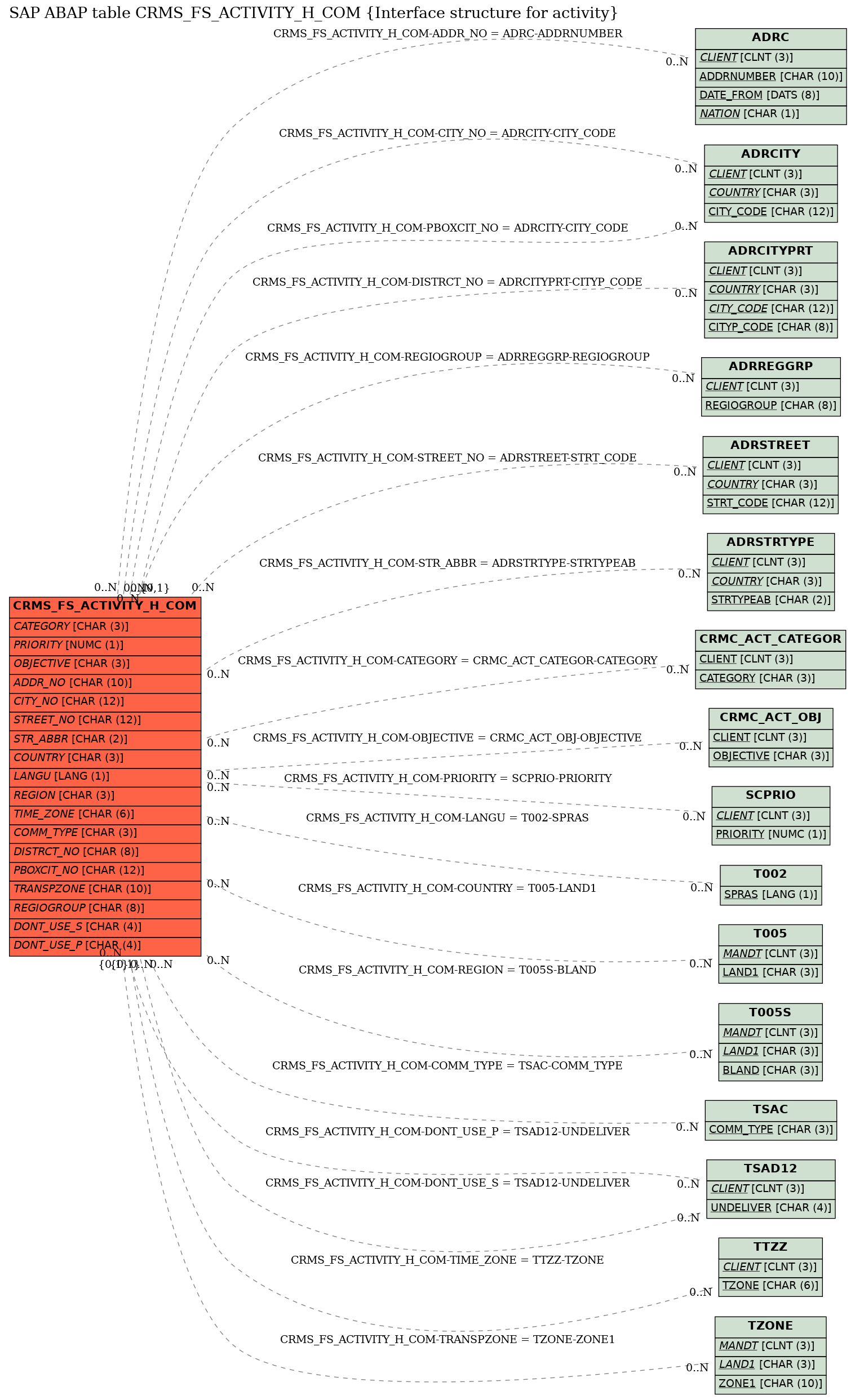

Structure	CRMS_FS_ACTIVITY_H_COM	Table Relationship Diagram
Short Description	Interface structure for activity

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Activity Data - Structure Containing Communication Fields
2	REF_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
3	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	.INCLUDE	☐				0	0	Structure of an Activity - External Fields
5	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
6	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
7	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
8	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
9	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
10	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
11	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
12	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
13	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
14	.INCLUDE	☐				0	0	EEW Include
15	ACTIVITY_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
16	.INCLUDE	☐				0	0
17	.INCLUDE	☐				0	0	Internal Dynamic Fields
18	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
19	.INCLUDE	☐				0	0	External Dynamic Fields
20	.INCLUDE	☐				0	0	BAPI Reference Structure for Addresses (Org./Company)
21	ADDR_NO	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	ADRC
22	FORMOFADDR	☐	AD_TITLE_T	TEXT20	CHAR	20	0	Form of address text
23	NAME	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
24	NAME_2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
25	NAME_3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
26	NAME_4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
27	C_O_NAME	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
28	CITY	☐	AD_CITY1	TEXT40	CHAR	40	0	City
29	DISTRICT	☐	AD_CITY2	TEXT40	CHAR	40	0	District
30	CITY_NO	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
31	POSTL_COD1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
32	POSTL_COD2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
33	POSTL_COD3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
34	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
35	PO_BOX_CIT	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
36	DELIV_DIS	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
37	STREET	☐	AD_STR_OLD	TEXT40	CHAR	40	0	Street
38	STREET_NO	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
39	STR_ABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
40	HOUSE_NO	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
41	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
42	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
43	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
44	BUILDING	☐	AD_BLD_OLD	TEXT10	CHAR	10	0	old: building (no. or abbreviation)
45	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
46	ROOM_NO	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
47	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
48	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
49	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
50	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
51	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
52	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
53	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
54	ADR_NOTES	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
55	COMM_TYPE	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
56	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
57	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
58	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
59	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
60	STREET_LNG	☐	AD_STREET	TEXT60	CHAR	60	0	Street
61	DISTRCT_NO	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
62	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
63	PBOXCIT_NO	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
64	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
65	HOUSE_NO2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
66	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
67	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
68	TITLE	☐	AD_TITLETX	TEXT30	CHAR	30	0	Title text
69	COUNTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
70	LANGU_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
71	BUILD_LONG	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
72	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
73	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
74	HOMECITYNO	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	*
75	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
76	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
77	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
78	PO_W_O_NO	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
79	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	*
80	POBOX_CTRY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	*
81	PO_CTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
82	HOMEPAGE	☐	AD_URISCR	AD_URISCR	CHAR	132	0	URI, e.g. Homepage or ftp Address
83	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
84	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
85	HOUSE_NO3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
86	LANGU_CR	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	*
87	LANGUCRISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
88	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
89	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	*
90	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
91	URI_TYPE	☐	AD_URITYPE	AD_URITYPE	CHAR	3	0	URI type flag
92	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	*
93	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
94	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	*
95	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
96	ID	☐			CHAR	10	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_FS_ACTIVITY_H_COM	ADDR_NO	ADRC	ADDRNUMBER
2	CRMS_FS_ACTIVITY_H_COM	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
3	CRMS_FS_ACTIVITY_H_COM	CITY_NO	ADRCITY	CITY_CODE
4	CRMS_FS_ACTIVITY_H_COM	COMM_TYPE	TSAC	COMM_TYPE
5	CRMS_FS_ACTIVITY_H_COM	COUNTRY	T005	LAND1
6	CRMS_FS_ACTIVITY_H_COM	DISTRCT_NO	ADRCITYPRT	CITYP_CODE
7	CRMS_FS_ACTIVITY_H_COM	DONT_USE_P	TSAD12	UNDELIVER	REF	C	CN
8	CRMS_FS_ACTIVITY_H_COM	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
9	CRMS_FS_ACTIVITY_H_COM	LANGU	T002	SPRAS
10	CRMS_FS_ACTIVITY_H_COM	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE
11	CRMS_FS_ACTIVITY_H_COM	PBOXCIT_NO	ADRCITY	CITY_CODE
12	CRMS_FS_ACTIVITY_H_COM	PRIORITY	SCPRIO	PRIORITY
13	CRMS_FS_ACTIVITY_H_COM	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
14	CRMS_FS_ACTIVITY_H_COM	REGION	T005S	BLAND
15	CRMS_FS_ACTIVITY_H_COM	STREET_NO	ADRSTREET	STRT_CODE
16	CRMS_FS_ACTIVITY_H_COM	STR_ABBR	ADRSTRTYPE	STRTYPEAB
17	CRMS_FS_ACTIVITY_H_COM	TIME_ZONE	TTZZ	TZONE
18	CRMS_FS_ACTIVITY_H_COM	TRANSPZONE	TZONE	ZONE1

History

Last changed by/on	SAP	20141013
SAP Release Created in	703
