SAP ABAP Table COMT_BSP_WORKFLOW_PROTOCOL (BSP UI: Workflow Log)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-PCF-SRV-SAM (Application Component) Application Manager
     ⤷ COM_WORKFLOW_BSP (Package) Workflow Administration in CRM UI Framework

Basic Data

Table Category	INTTAB	Structure

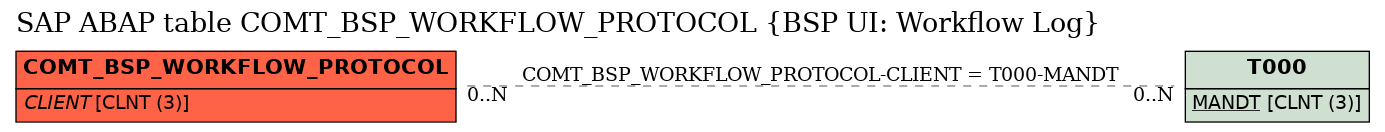

Structure	COMT_BSP_WORKFLOW_PROTOCOL	Table Relationship Diagram
Short Description	BSP UI: Workflow Log

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Workflow: ITAB for reduction of WFM Logtab
3	EXPANDER	☐	SWL_EXPA	TEXT1	CHAR	1	0	SWL: Flag for expanding control in ALV
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
5	COLOR	☐	SWL_PM_C	TEXT3	CHAR	3	0	WLC: Color determination field for ALV output structure
6	ERROR_ICO	☐	SWL_PM_E	CHAR4	CHAR	4	0	Graphical display of error status
7	GRAPH_ICO	☐	SWL_PM_I	CHAR50	CHAR	50	0	SWL: Icon of a method
8	WI_ICO	☐	SWL_PM_I	CHAR50	CHAR	50	0	SWL: Icon of a method
9	CONT_ICO	☐	SWL_PM_I	CHAR50	CHAR	50	0	SWL: Icon of a method
10	WI_ICO_STA	☐	SWL_STAICO	TEXT50	CHAR	50	0	Status of work item as icon
11	WI_ID	☐	SWW_WIID	SWW_WIID	NUMC	12	0	Work item ID	*
12	NODE_ID	☐	SWD_NODEID	SWD_NODIDS	NUMC	10	0	Node Number
13	WI_TEXT	☐	SWL_PM_S	TEXT120	CHAR	120	0	Work item text of task
14	WI_RH_TASK	☐	SWW_TASK	HROBJEC_14	CHAR	14	0	Task ID
15	WI_RHTEXT	☐	SWW_RHTEXT	CHAR40	CHAR	40	0	Short Text from Task
16	WI_TYPE	☐	SWW_WITYPE	SWW_WITYPE	CHAR	1	0	Work item type
17	RESULT_TXT	☐	SWL_PM_R	TEXT40	CHAR	40	0	Result of workflow step
18	LOG_DATE	☐	SWL_EDATE	SYDATS	DATS	8	0	Date on which logged action terminated
19	LOG_TIME	☐	SWL_ETIME	SYTIME	TIMS	6	0	Time when logged action was terminated
20	DURATION	☐	SWL_PM_W	CHAR17	CHAR	17	0	Processing duration of work item
21	STATUSTEXT	☐	SWL_PM_X	TEXT20	CHAR	20	0	Work item status text
22	WI_STAT	☐	SWW_WISTAT	SWW_WISTAT	CHAR	12	0	Processing Status of a Work Item	*
23	WI_AAGENT	☐	SWW_AAGENT	SYCHAR12	CHAR	12	0	Actual Agent of Work Item
24	AGENT_NAME	☐	SWL_AAGT_N	TEXT40	CHAR	40	0	Name of Actual Agent of Work Item
25	WF_ID	☐	SWP_WF_ID	SWW_WIID	NUMC	12	0	Workflow ID	*
26	TOP_LVL_WF	☐	SWP_WF_ID	SWW_WIID	NUMC	12	0	Workflow ID	*
27	NODE_CLASS	☐	SWD_NODETP	SWD_NODETP	CHAR	1	0	Node Type
28	WORKAREA	☐	ARBGB	ARBGB	CHAR	20	0	Application Area	*
29	MESSAGE	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
30	ERRORTYPE	☐	SYMSGTY	SYCHAR01	CHAR	1	0	Message Type
31	VARIABLE1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
32	VARIABLE2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
33	VARIABLE3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
34	VARIABLE4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
35	REMOTE_ID	☐	SWW_WIID	SWW_WIID	NUMC	12	0	Work item ID	*
36	REMOTE_SYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
37	WI_CHCKWI	☐	SWW_CHCKWI	SWW_WIID	NUMC	12	0	Superordinate Work Item	*
38	EXEC_TIME	☐	SWFREXECTM		INT4	10	0	Workflow: De Facto Execution Time in Sec (6.1/get)
39	BLOCKTYPE	☐	SWP_BLOCKTYPE	SWP_BLOCKTYPE	NUMC	4	0	WFM: Block Type
40	NODETYPE	☐	SWD_NODETP	SWD_NODETP	CHAR	1	0	Node Type
41	PARENT_WI	☐	SWFRPARWI	SWW_WIID	NUMC	12	0	Parent of a Work Item	*
42	LTEXT	☐	COMT_WORKFLOW_DESCRIPTION		STRG	0	0	Description for Workflow Item

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	COMT_BSP_WORKFLOW_PROTOCOL	CLIENT	T000	MANDT

History

Last changed by/on	SAP	20130604
SAP Release Created in	200
