SAP ABAP Table CCS_AEOI_EXT (Display Object Management Record: Extended Structure)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-ECM (Application Component) Engineering Change Management
     ⤷ CC (Package) Engineering Change Management

Basic Data

Table Category	INTTAB	Structure

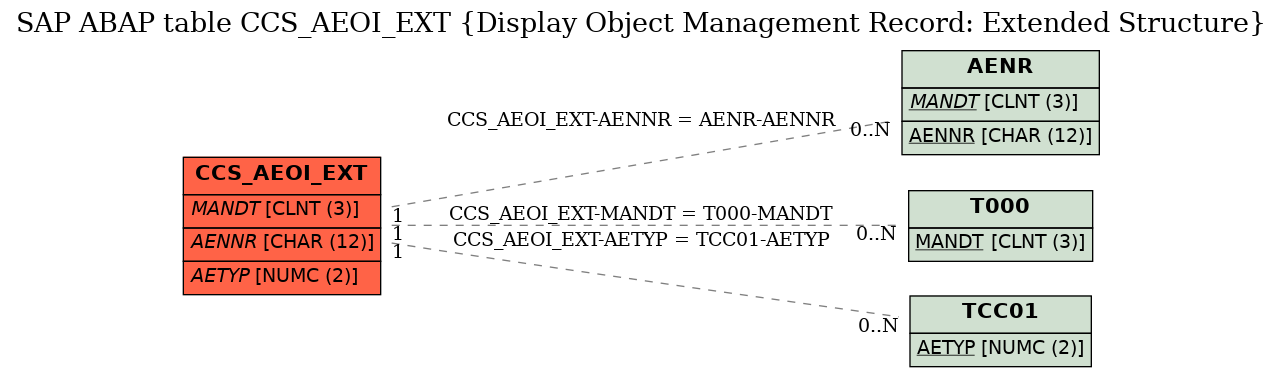

Structure	CCS_AEOI_EXT	Table Relationship Diagram
Short Description	Display Object Management Record: Extended Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	ECH: Structure - display object management record
2	.INCLUDE	☐				0	0	ECH: Object Management Records for Change Master
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	AENR
5	AETYP	☐	AETYP	AETYP	NUMC	2	0	Object Category	TCC01
6	OBJKT	☐	AEOBJEKT	AEOBJEKT	CHAR	40	0	Identification of object to be changed
7	USOBJ	☐	AEUSOBJ	AEOBJEKT	CHAR	40	0	Change object (internal use)
8	CCVMS	☐	CCVMS	CC_XFELD	CHAR	1	0	Indicator: planned record
9	OITXT	☐	CC_OITXT	CC_TEXT40	CHAR	40	0	Object management record description
10	LTXSP	☐	CC_LTXSP	SPRAS	LANG	1	0	Language: The long text was stored in this language	*
11	AEDAT	☐	CC_AEDAT	CC_DATUM	DATS	8	0	Date of Last Change
12	AENAM	☐	CC_AENAM	CC_USNAM	CHAR	12	0	Name of Person Who Changed Object
13	ANDAT	☐	CC_ANDAT	CC_DATUM	DATS	8	0	Date record created on
14	ANNAM	☐	CC_ANNAM	CC_USNAM	CHAR	12	0	User Who Created Record
15	OBJDT	☐	CC_OBJDT	CC_DATUM	DATS	8	0	Date on which the object was last changed
16	OBJNM	☐	CC_OBJNM	CC_USNAM	CHAR	12	0	User who last changed the object
17	CCLCK	☐	CC_CCLCK	CC_XFELD	CHAR	1	0	Indicator: Object locked for changes
18	AEOST	☐	CC_FLBAS	CC_FLBAS	CHAR	1	0	Baselining for object has been carried out
19	REVLV	☐	CC_REVLV	CC_REVLV	CHAR	2	0	Revision Level
20	AEDTZ	☐	AEDTZ	NUMC03	NUMC	3	0	Engineering change management: alternative date counter
21	CCSTO	☐	CCSTO	CC_NUMC8	NUMC	8	0	Partial key for status in engineering change management
22	CCOAA	☐	CCOAA	CCOAA	NUMC	3	0	Change Type for Object	*
23	CONT1	☐	CC_DSIGN	CC_DSIGN	CHAR	1	0	Digital signature (process improvement)
24	.INCLUDE	☐				0	0
25	STLAL	☐	CC_STALT	CC_ALTNR	CHAR	2	0	Alternative BOM
26	STA_SY_CUR_KEY	☐	J_ISTAT	J_ISTAT	CHAR	5	0	System status	*
27	STA_SY_CUR_TXT	☐	AESTX	TEXT30	CHAR	30	0	Change status text
28	USERNAME	☐	CDUSERNAME	CHAR12	CHAR	12	0	User name of the person responsible in change document
29	STA_DATE	☐	CDDATUM	DATUM	DATS	8	0	Creation date of the change document
30	STA_TIME	☐	CDUZEIT	UZEIT	TIMS	6	0	Time changed
31	DURATION	☐	CC_DURA	SWW_PLADUR	NUMC	8	0	Engineering Change Management: Process duration
32	ATTXT	☐	ATTXT	TEXT30	CHAR	30	0	Object Type Description
33	ATABR	☐	ATABR	TEXT10	CHAR	10	0	Object Type Short Description
34	DATUV	☐	CC_CCDAT	CC_DATUM	DATS	8	0	Valid-From Date
35	AEDTN	☐	CC_AEDTN	CC_CHAR18	CHAR	18	0	Alternative date external key
36	ICON	☐	ICON_D	ICON	CHAR	4	0	Icon in text fields (substitute display, alias)	*
37	AENOB	☐	CC_AENOB	CC_CHAR72	CHAR	72	0	Object
38	ALT_ECN_CHANGED	☐	CC_FLUSE	CC_XFELD	CHAR	1	0	Change number has been used for data maintenance
39	MATNR	☐	CCMATNR	CCMATNR	CHAR	18	0	Material number
40	.INCLUDE	☐				0	0	Engineering Change Mgmt: Document Identification Structure
41	DOKAR	☐	CC_DOKAR	CC_DOKAR	CHAR	3	0	Document Type
42	DOKNR	☐	CC_DOKNR	CC_DOKNR	CHAR	25	0	Document number
43	DOKTL	☐	CC_DOKTL_D	CC_DOKTL	CHAR	3	0	Document Part
44	DOKVR	☐	CC_DOKVR	CC_DOKVR	CHAR	2	0	Document Version
45	.INCLUDE	☐				0	0	EC Management: Task List Links
46	PLNTY	☐	CC_PLNTY	CC_PLNTY	CHAR	1	0	Task List Type	*
47	PLNNR	☐	CC_PLNNR	CC_PLNNR	CHAR	8	0	Key for task list group
48	D_DOKAR	☐	CC_DOKAR	CC_DOKAR	CHAR	3	0	Document Type
49	D_DOKNR	☐	CC_DOKNR	CC_DOKNR	CHAR	25	0	Document number
50	D_DOKTL	☐	CC_DOKTL_D	CC_DOKTL	CHAR	3	0	Document Part
51	D_DOKVR	☐	CC_DOKVR	CC_DOKVR	CHAR	2	0	Document Version
52	E_EQUNR	☐	CC_EQUNR	CC_EQUNR	CHAR	18	0	Equipment number
53	E_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
54	E_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage
55	K_VBELN	☐	CC_VBELN	CC_VBELN	CHAR	10	0	Sales order
56	K_VBPOS	☐	CC_VBPOS	CC_POSNR	NUMC	6	0	Sales order item
57	K_MATNR	☐	CCMATNR	CCMATNR	CHAR	18	0	Material number
58	K_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
59	K_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage
60	M_MATNR	☐	CCMATNR	CCMATNR	CHAR	18	0	Material number
61	M_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
62	M_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage
63	P_PSPNR	☐	CC_PSPNR	CC_PS_POSNR	NUMC	8	0	Work breakdown structure element (WBS element)
64	P_MATNR	☐	CCMATNR	CCMATNR	CHAR	18	0	Material number
65	P_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
66	P_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage
67	S_STOBJ	☐	CC_STOBJ	CC_CHAR18	CHAR	18	0	Standard Object
68	S_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
69	S_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage
70	T_TPLNR	☐	CC_TPLNR	CC_TPLNR	CHAR	30	0	Functional Location
71	T_WERKS	☐	CC_WERKS_D	CC_WERKS	CHAR	4	0	Plant	*
72	T_STLAN	☐	CC_STLAN	CC_STLAN	CHAR	1	0	BOM Usage

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CCS_AEOI_EXT	AENNR	AENR	AENNR	KEY	1	CN
2	CCS_AEOI_EXT	AETYP	TCC01	AETYP	KEY	1	CN
3	CCS_AEOI_EXT	MANDT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	620
