SAP ABAP Table BAPI_RE_ARCH_OBJECT (Architectural Object)

Hierarchy

☛ EA-FIN (Software Component) EA-FIN
   ⤷ RE-FX-BD (Application Component) Basic Data
     ⤷ RE_BD_AO (Package) RE: Arch. Object (Master Data of Architectural Object)

Basic Data

Table Category	INTTAB	Structure

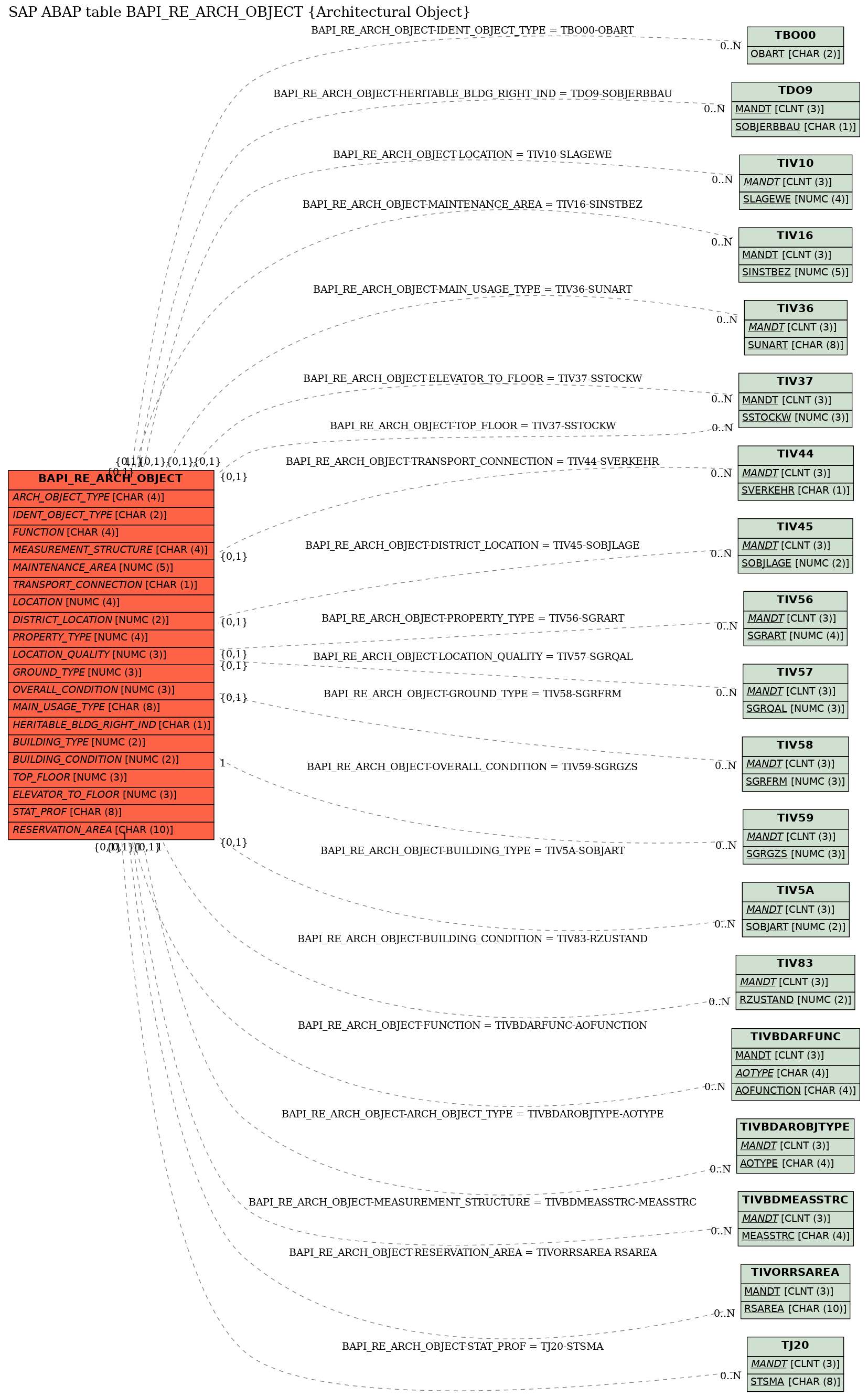

Structure	BAPI_RE_ARCH_OBJECT	Table Relationship Diagram
Short Description	Architectural Object

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	ARCH_OBJECT_ID	☐	REBDAOID	REBDAOID	CHAR	30	0	Identification of Architectural Object
2	ARCH_OBJECT_TYPE	☐	REBDAOTYPE	REBDAOTYPE	CHAR	4	0	Architectural Object Type	TIVBDAROBJTYPE
3	PART_ARCH_OBJECT_ID	☐	REBDPARTAOID	REBDPARTAOID	CHAR	30	0	AOID Code
4	ARCH_OBJECT_NUMBER	☐	REBDAONR	REBDAONR	CHAR	13	0	Number of Architectural Object
5	PARENT_ARCH_OBJECT_ID	☐	REBDPARENTAOID	REBDAOID	CHAR	30	0	Identification of Superordinate Architectural Object
6	IDENT_OBJECT_TYPE	☐	RECAIDENTTYPE	J_OBART	CHAR	2	0	ID Part of Object Type, such as "IS" (Real Estate Contract)	TBO00
7	IDENT_KEY	☐	RECAIDENTKEY	CHAR45	CHAR	45	0	ID Part Key, for example "1000/123"
8	CREATION_USER	☐	RERF	SYCHAR12	CHAR	12	0	Entered by
9	CREATION_DATE	☐	DERF	DATUM	DATS	8	0	First Entered on
10	CREATION_TIME	☐	TERF	TIMES	TIMS	6	0	Time of Initial Entry
11	LASTCHANGE_USER	☐	RBEAR	SYCHAR12	CHAR	12	0	Employee ID
12	LASTCHANGE_DATE	☐	DBEAR	DATUM	DATS	8	0	Last Edited on
13	LASTCHANGE_TIME	☐	TBEAR	TIMES	TIMS	6	0	Last Edited at
14	ARCH_OBJECT_TEXT	☐	REBDXAO	RECAXLDESCRIPTION	CHAR	60	0	Name of Architectural Object
15	PART_SEPARATOR	☐	REBDPARTSEPARATOR	REBDPARTSEPARATOR	CHAR	10	0	AOID Code: Separator
16	FUNCTION	☐	REBDAOFUNCTION	REBDAOFUNCTION	CHAR	4	0	Function of Architectural Object	TIVBDARFUNC
17	COMMON_USAGE_IND	☐	REBDUSCOMMON	REBDUSCOMMON	CHAR	1	0	Common Usage
18	AUTHORIZATION_GROUP	☐	RECAAUTHGRP	RECAAUTHGRP	CHAR	40	0	Authorization Group
19	MEASUREMENT_STRUCTURE	☐	REBDMEASSTRC	REBDMEASSTRC	CHAR	4	0	Measurement Structure	TIVBDMEASSTRC
20	ARCH_OBJECT_SHORT_TEXT	☐	REBDDOORPLT	REBDDOORPLT	CHAR	15	0	Short description
21	MAINTENANCE_AREA	☐	SINSTBEZ	SINSTBEZ	NUMC	5	0	Maintenance district	TIV16
22	TRANSPORT_CONNECTION	☐	SVERKEHR	SVERKEHR	CHAR	1	0	Transport Connections of Business Entity	TIV44
23	LOCATION	☐	SLAGEWE	SLAGEWE	NUMC	4	0	Business entity location number	TIV10
24	DISTRICT_LOCATION	☐	RESOBJLAGE	RESOBJLAGE	NUMC	2	0	Indicator: District Location of Object	TIV45
25	PROPERTY_TYPE	☐	VVSGRART	VVSGRART	NUMC	4	0	Property type	TIV56
26	LOCATION_QUALITY	☐	VVSGRQAL	VVSGRQAL	NUMC	3	0	Property: Quality of location	TIV57
27	GROUND_TYPE	☐	VVSGRFRM	VVSGRFRM	NUMC	3	0	Property ground type	TIV58
28	OVERALL_CONDITION	☐	VVSGRGZS	VVSGRGZS	NUMC	3	0	Overall condition of property	TIV59
29	DEVELOPMENT_PLAN	☐	RBEPLAN	XMBEZ	CHAR	30	0	Development plan
30	DEVELOPMENT_PLAN_DATE	☐	DBEPLAN	DDAT	DATS	8	0	Date of development plan
31	CURRENT_USAGE	☐	XNUTZGRU	XMBEZ	CHAR	30	0	Current usage of property
32	USAGE_TYPE_LAND_USE_MAP	☐	RGRNART	CHAR2	CHAR	2	0	Usage Type of Property According to Land Use Map
33	USAGE_TYPE_DEVELOPMENT_PLAN	☐	RNBPLAN	RGRNART	CHAR	4	0	Usage type according to development plan
34	MAIN_USAGE_TYPE	☐	VVSUNART	VVSUNART	CHAR	8	0	Main usage type	TIV36
35	MAIN_USAGE_TYPE_IND	☐	VVJUNUTZA	JANE	CHAR	1	0	Indicator: Predominant usage type ' '-ANLKL, 'X'-TIV36
36	PERM_USAGE_SITE_OCCUP_INDEX	☐	NZGRZ	DEC1_2	DEC	3	2	Permitted Usage: Site Occupancy Index
37	PERM_USAGE_FLOOR_AREA_RATIO	☐	NZGFZ	DEC2_2	DEC	4	2	Permitted Usage: Floor Area Ratio
38	PERM_USAGE_CONSTRCT_DIM_NO	☐	NZBMZ	DEC3_2	DEC	5	2	Permitted Usage: Construction Dimension Number
39	ACTL_USAGE_SITE_OCCUP_INDEX	☐	NTGRZ	DEC1_2	DEC	3	2	Actual Usage: Site Occupancy Index
40	ACTL_USAGE_FLOOR_AREA_RATIO	☐	NTGFZ	DEC2_2	DEC	4	2	Actual Usage: Floor Area Ratio
41	ACTL_USAGE_CONSTRCT_DIM_NO	☐	NTBMZ	DEC3_2	DEC	5	2	Actual Usage: Construction Dimension Number
42	HERITABLE_BLDG_RIGHT_IND	☐	JERBBAU	SOBJERBBAU	CHAR	1	0	Heritable building right indicator	TDO9
43	PERMITTED_BUILDING_HEIGHT	☐	REBDALLOWEDHEIGHT	REBDALLOWEDHEIGHT	INT2	5	0	Allowed Building Height (as Integer)
44	BUILDING_TYPE	☐	RGEBART	SOBJART	NUMC	2	0	Type of building	TIV5A
45	BUILDING_CONDITION	☐	RGEBZUST	VVRZUSTAND	NUMC	2	0	General condition of building	TIV83
46	CONSTRUCTION_YEAR	☐	VVYBAUJAHR	DATUM	DATS	8	0	ConstYr
47	CONSTRUCTION_YEAR_AS_YEAR	☐	VVJNURJ	JANE	CHAR	1	0	Indicator: Only regard construction date in terms of years
48	MODERNIZATION_YEAR	☐	VVYMODERN	DATUM	DATS	8	0	Year of modernization
49	RECONSTRUCTION_YEAR	☐	VVYAUFBAU	DATUM	DATS	8	0	Year of reconstruction
50	BEGIN_CONSTRUCTION_YEAR	☐	DBAUBEGI	DDAT	DATS	8	0	Construction start date
51	READY_FOR_OCCUPANCY_DATE	☐	DBEZUGSF	DDAT	DATS	8	0	Ready for occupancy
52	COMPLETION_DATE	☐	DFERTIG	DDAT	DATS	8	0	Completion
53	FINAL_INSPECTION_DATE	☐	DSCHLUSS	DDAT	DATS	8	0	Final Inspection
54	PLANNING_INQUIRY_DATE	☐	DBAUVOR	DDAT	DATS	8	0	Date of planning inquiry
55	PRIOR_NOTICE_DATE	☐	DVORBES	DDAT	DATS	8	0	Date of prior notice
56	BUILDING_PERMIT_APPLIC_DATE	☐	DANTBAU	DATUM	DATS	8	0	Application for building permit
57	BUILDING_PERMIT_DATE	☐	DBAUGENE	DDAT	DATS	8	0	Building permit
58	BUILDING_PERMIT_NOTE	☐	XBAUGENE	XMBEZ	CHAR	30	0	Note on building permit
59	HAS_HIST_SITE_PROTECTION	☐	JDENKMAL	JANE	CHAR	1	0	Protection of Historical Sites
60	PUBLIC_FUNDING_FROM	☐	VVDFRDVON	DATUM	DATS	8	0	Public funding from
61	PUBLIC_FUNDING_TO	☐	VVDFRDBIS	DATUM	DATS	8	0	Public funding to
62	FLOORS	☐	VVBANZGE	DEC3_1	DEC	4	1	Number of floors
63	BASEMENTS	☐	AUGESCH	DEC2	DEC	2	0	Number of basements
64	TOP_FLOOR	☐	VVSTCKBIS	VVSSTOCKW	NUMC	3	0	Uppermost Floor of a Building	TIV37
65	ELEVATOR_TO_FLOOR	☐	VVLIFTBIS	VVSSTOCKW	NUMC	3	0	Elevator to Floor in Building	TIV37
66	TOP_FLOOR_BY_ELEVATOR	☐	VVNSTCKLFT	NUMC3	NUMC	3	0	Number of highest floor reached by elevator
67	OBJECT_VALID_FROM	☐	REBDVALIDFROM	RECADATEBEG	DATS	8	0	Date: Valid From
68	OBJECT_VALID_TO	☐	REBDVALIDTO	RECADATEEND	DATS	8	0	Date: Valid To
69	REAL_VALID_FROM	☐	REBDREALVALIDFROM	RECADATEBEG	DATS	8	0	Date: Valid from (Effective)
70	REAL_VALID_TO	☐	REBDREALVALIDTO	RECADATEEND	DATS	8	0	Date: Valid to (Effective)
71	RESPONSIBLE	☐	RECARESPONSIBLE	XUBNAME	CHAR	12	0	Person Responsible	*
72	STAT_PROF	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
73	RESERVATION_AREA	☐	REORRSAREA	REORRSAREA	CHAR	10	0	Reservation Area	TIVORRSAREA
74	OFFERED_OBJECT_ID	☐	REOROOID	REOROOID	CHAR	20	0	Offered Object Number
75	OFFERED_OBJECT_EXT_ID	☐	REOROOIDEXT	REOROOIDEXT	CHAR	45	0	External ID of Reservation Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_RE_ARCH_OBJECT	ARCH_OBJECT_TYPE	TIVBDAROBJTYPE	AOTYPE	REF	1	CN
2	BAPI_RE_ARCH_OBJECT	BUILDING_CONDITION	TIV83	RZUSTAND	REF	1	CN
3	BAPI_RE_ARCH_OBJECT	BUILDING_TYPE	TIV5A	SOBJART	REF	C	CN
4	BAPI_RE_ARCH_OBJECT	DISTRICT_LOCATION	TIV45	SOBJLAGE	REF	C	CN
5	BAPI_RE_ARCH_OBJECT	ELEVATOR_TO_FLOOR	TIV37	SSTOCKW	REF	C	CN
6	BAPI_RE_ARCH_OBJECT	FUNCTION	TIVBDARFUNC	AOFUNCTION	REF	C	CN
7	BAPI_RE_ARCH_OBJECT	GROUND_TYPE	TIV58	SGRFRM	REF	C	CN
8	BAPI_RE_ARCH_OBJECT	HERITABLE_BLDG_RIGHT_IND	TDO9	SOBJERBBAU	REF	C	CN
9	BAPI_RE_ARCH_OBJECT	IDENT_OBJECT_TYPE	TBO00	OBART	REF	1	CN
10	BAPI_RE_ARCH_OBJECT	LOCATION	TIV10	SLAGEWE	REF	C	CN
11	BAPI_RE_ARCH_OBJECT	LOCATION_QUALITY	TIV57	SGRQAL	REF	C	CN
12	BAPI_RE_ARCH_OBJECT	MAINTENANCE_AREA	TIV16	SINSTBEZ	REF	C	CN
13	BAPI_RE_ARCH_OBJECT	MAIN_USAGE_TYPE	TIV36	SUNART	REF	C	CN
14	BAPI_RE_ARCH_OBJECT	MEASUREMENT_STRUCTURE	TIVBDMEASSTRC	MEASSTRC	REF	C	CN
15	BAPI_RE_ARCH_OBJECT	OVERALL_CONDITION	TIV59	SGRGZS	REF	1	CN
16	BAPI_RE_ARCH_OBJECT	PROPERTY_TYPE	TIV56	SGRART	REF	C	CN
17	BAPI_RE_ARCH_OBJECT	RESERVATION_AREA	TIVORRSAREA	RSAREA	REF	1	CN
18	BAPI_RE_ARCH_OBJECT	STAT_PROF	TJ20	STSMA	REF	C	CN
19	BAPI_RE_ARCH_OBJECT	TOP_FLOOR	TIV37	SSTOCKW	REF	C	CN
20	BAPI_RE_ARCH_OBJECT	TRANSPORT_CONNECTION	TIV44	SVERKEHR	REF	C	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in	200
