SAP ABAP Table BAPI1240_IP_IHVAL (EHS: BAPI - Structure for Value Assignmts in Class Sys. (IP))

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-IHS (Application Component) Industrial Hygiene and Safety
     ⤷ CBIH (Package) EH&S: Industrial Hygiene and Safety

Basic Data

Table Category	INTTAB	Structure

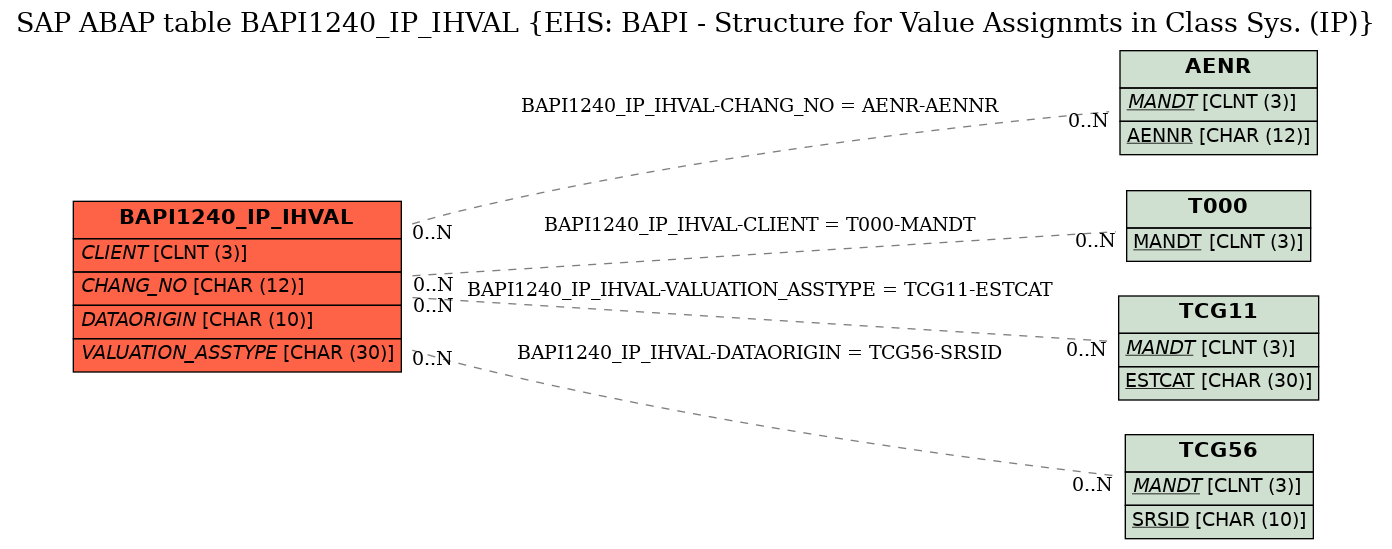

Structure	BAPI1240_IP_IHVAL	Table Relationship Diagram
Short Description	EHS: BAPI - Structure for Value Assignmts in Class Sys. (IP)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	FUNCTION	☐	MSGFN	MSGFN	CHAR	3	0	Function
2	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
3	EXTINFO	☐	ESEEXTINFO	CHAR10	CHAR	10	0	External Information
4	PRIMARYKEY	☐	ESEPKEY	ESDPKEY	NUMC	20	0	Artificial Primary Key for Specification Tables in BAPIs
5	FOREIGNKEY	☐	ESEFKEY	ESDPKEY	NUMC	20	0	Artificial Foreign Key in Specification Tables for BAPIs
6	FLGPRIMKEY	☐	ESEFLGPKEY	ESDFLAG	CHAR	1	0	Data Record Created with Artificial Primary Key
7	FLGFRGNKEY	☐	ESEFLGFKEY	ESDFLAG	CHAR	1	0	New Parent Record Was Created
8	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
9	RECORD_NO	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
10	CHNGSTATUS	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
11	VALID_FROM	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
12	VALID_TO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
13	CHANG_NO	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
14	DEL_IND	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
15	PARK_IND	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
16	CREATED_ON	☐	ESECRDAT	DATUM	DATS	8	0	Created On
17	CREATED_BY	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
18	CHANGD_ON	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
19	CHANGD_BY	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
20	DATAORIGIN	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
21	DATA_PROV	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
22	RECNO_ROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
23	REF_RECNO_OBJECT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
24	REF_OBJECT	☐	CCIHE_IHREFOBJ	CCIHD_IHREFOBJ	CHAR	3	0	Reference Object	*
25	VALUATION_ASSTYPE	☐	CCIHE_IHVALCAT	ESDESTCAT	CHAR	30	0	Value Assignment Type for Objects in IHS	TCG11

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI1240_IP_IHVAL	CHANG_NO	AENR	AENNR	REF
2	BAPI1240_IP_IHVAL	CLIENT	T000	MANDT	REF
3	BAPI1240_IP_IHVAL	DATAORIGIN	TCG56	SRSID	REF
4	BAPI1240_IP_IHVAL	VALUATION_ASSTYPE	TCG11	ESTCAT	REF

History

Last changed by/on	SAP	20110901
SAP Release Created in	600
