SAP ABAP Table ALPERFDB_C (Alert: Performance Database)
Hierarchy
☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CCM-MON (Application Component) Monitoring
     ⤷ SMOI (Package) CCMS: Monitoring Architecture
Basic Data
Table Category TRANSP    Transparent table

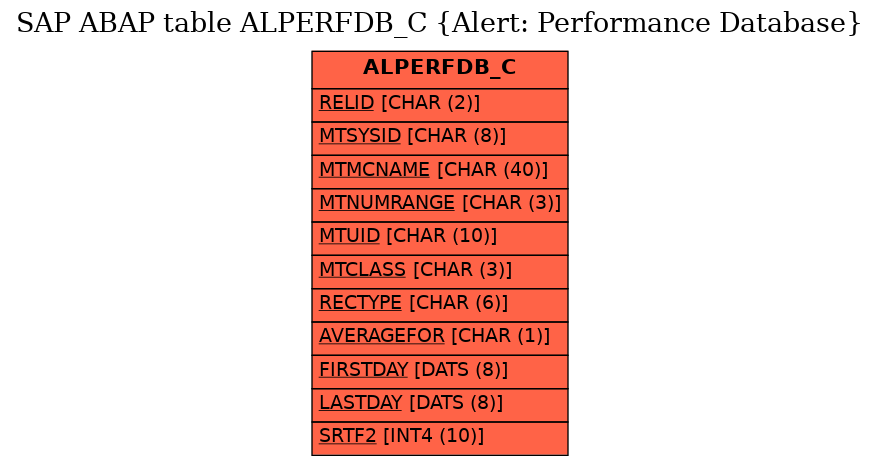

Transparent table ALPERFDB_C   Table Relationship Diagram
Short Description Alert: Performance Database
Delivery and Maintenance
Pool/cluster
Delivery Class L   Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 RELID INDX_RELID SYCHAR02 CHAR 2   0   Region in IMPORT/EXPORT Data Table
2 .INCLUDE       0   0   Alert: global TID as key (w/o INDEX fields)
3 MTSYSID SYSYSID SYCHAR08 CHAR 8   0   Name of SAP System
4 MTMCNAME ALMCNAME TEXT40 CHAR 40   0   Alert: Name of Monitoring Context
5 MTNUMRANGE ALTIDNUMRG CHAR3 CHAR 3   0   Alert: monitoring type number range (perm., temp, ...)
6 MTUID ALTIDUID CHAR10 CHAR 10   0   ALert: Unique Identifier for Monitoring Types (used in TID)
7 MTCLASS ALTIDMTCL CHAR3 CHAR 3   0   Alert: monitoring type class (perf., single msg.,...)
8 RECTYPE ALPDBRTYP CHAR6 CHAR 6   0   Aggregation and Resolution of a CPH Data Record
9 AVERAGEFOR ALPDBAFOR CHAR1 CHAR 1   0   Monitoring infra. perform. DB av. value for object or class
10 FIRSTDAY ALDATE DATUM DATS 8   0   Alert: date
11 LASTDAY ALDATE DATUM DATS 8   0   Alert: date
12 SRTF2 INDX_SRTF2 SYBIN4 INT4 10   0   Next record counter in EXPORT/IMPORT data tables
13 STATUSFLAG ALPDBRSTAT CHAR1 CHAR 1   0   Monitoring infra. perf DB record status
14 LASTCHG ALDATE DATUM DATS 8   0   Alert: date
15 DELFLAG ALPDBRSTAT CHAR1 CHAR 1   0   Monitoring infra. perf DB record status
16 DATAFORMAT ALPDBVERS CHAR3 CHAR 3   0   Monitoring infra. perf. DB data format version
17 CLUSTR INDX_CLSTR SYBIN2 INT2 5   0   Length field for user data in EXPORT/IMPORT tables
18 CLUSTD INDX_CLUST INDX_CLUST LRAW 2886   0   Data field for IMPORT/EXPORT database tables
History
Last changed by/on SAP  20130604
SAP Release Created in
