SAP ABAP Table /BEV3/CHDKOM2 (Contract Document Communication Structure 2 (DRAD))
Hierarchy
☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ SD-SLS-PLL-OBS (Application Component) Remaining Beverage - Obsolete Objects
     ⤷ /BEV3/CH (Package) Contract Handling
Basic Data
Table Category INTTAB    Structure

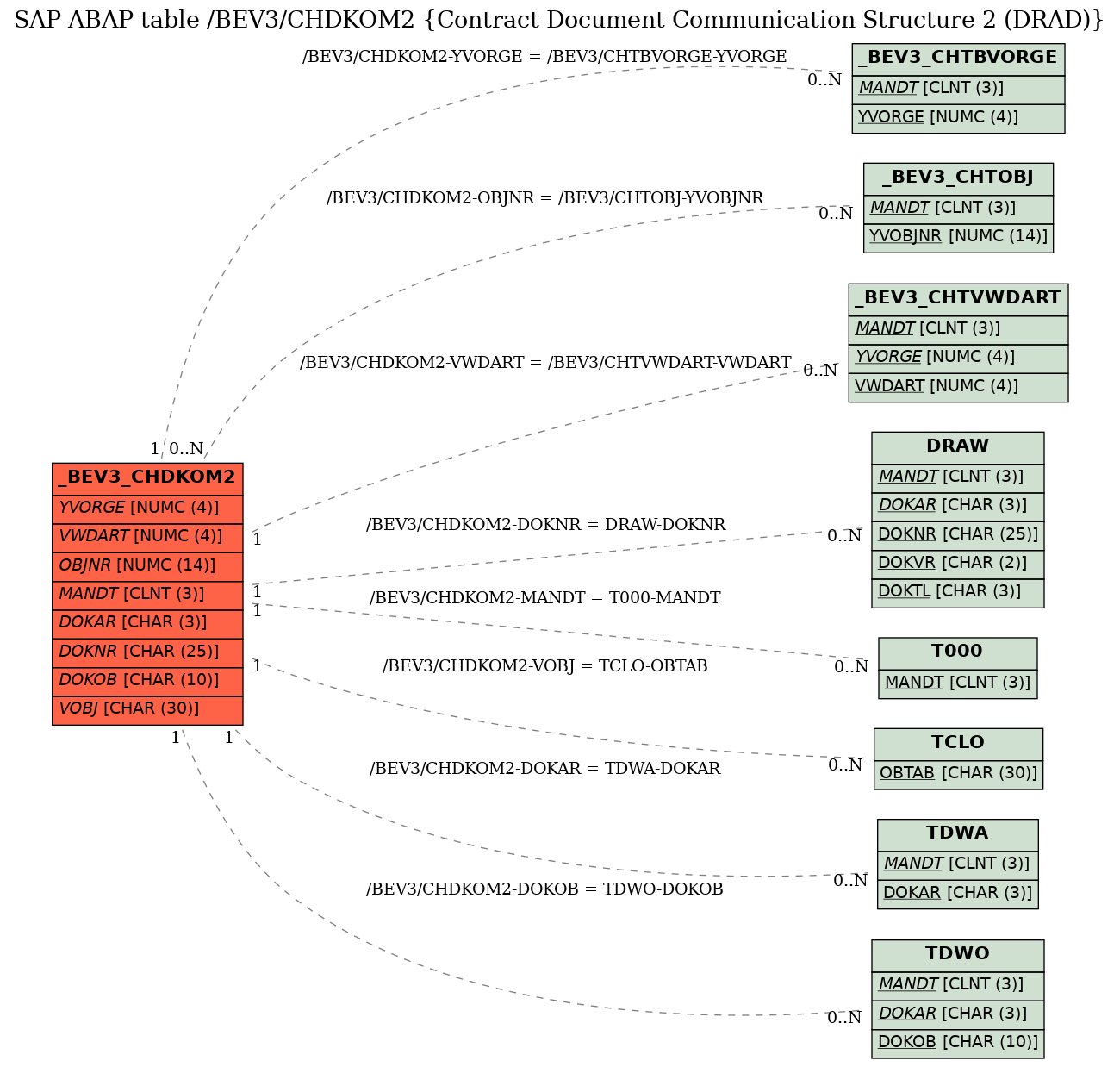

Structure /BEV3/CHDKOM2   Table Relationship Diagram
Short Description Contract Document Communication Structure 2 (DRAD)
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 YVORGE /BEV3/CHOE /BEV3/CHDOVORGE NUMC 4   0   CH Organizational Unit /BEV3/CHTBVORGE
2 VWDART /BEV3/CHDTVWDART /BEV3/CHDOVWDART NUMC 4   0   Contract Handling Document Type /BEV3/CHTVWDART
3 YVWDNR /BEV3/CHDTWDNR /BEV3/CHDOWDNR NUMC 13   0   CHD Contract Number
4 MUSTER /BEV3/CHMUSTER /BEV3/CHTXT01 CHAR 1   0   Model Indicator
5 OBJNR /BEV3/CHOBJNR /BEV3/CHOBJNR NUMC 14   0   Key for Objects /BEV3/CHTOBJ
6 .INCLUDE       0   0   Document-Object Link
7 MANDT MANDT MANDT CLNT 3   0   Client T000
8 DOKAR DOKAR DOKAR CHAR 3   0   Document Type TDWA
9 DOKNR DOKNR DOKNR CHAR 25   0   Document number DRAW
10 DOKVR DOKVR DOKVR CHAR 2   0   Document version
11 DOKTL DOKTL_D DOKTL CHAR 3   0   Document part
12 DOKOB DOKOB DOKOB CHAR 10   0   Linked SAP Object TDWO
13 OBZAE OBZAE NUM4 NUMC 4   0   Counter key
14 OBJKY OBJKY CHAR50 CHAR 50   0   Document management object key
15 VRKSTAT VRKSTAT VRKSTAT CHAR 1   0   Link status of a document
16 VRKSTAT1 STAT_OBVK VRKSTAT1 CHAR 2   0   Object link status for document
17 VOBJ TABELLE OBJEKTTAB CHAR 30   0   Name of database table for object TCLO
18 VKEY OBJKY CHAR50 CHAR 50   0   Document management object key
19 VDIR DRADDIR XFELD CHAR 1   0   Direction of document link active
20 VIEWFLAG CV_VIEW_FLAG XFELD CHAR 1   0   Indicator: default document for view
21 DELFLAG DEL_DRAD_FLAG   CHAR 1   0   Deletion indicator: object link
22 LONGTEXT_ID LONGTEXT_ID CHAR32 CHAR 32   0   DMS: GUID for allocation of long texts
23 CAD_POS CAD_POS   CHAR 1   0   CAD: Assignment document <-> material
24 CM_FIXED DMS_CM_FIXED XFELD CHAR 1   0   Document fixed
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 /BEV3/CHDKOM2 DOKAR TDWA DOKAR KEY 1 CN
2 /BEV3/CHDKOM2 DOKNR DRAW DOKNR KEY 1 CN
3 /BEV3/CHDKOM2 DOKOB TDWO DOKOB KEY 1 CN
4 /BEV3/CHDKOM2 MANDT T000 MANDT KEY 1 CN
5 /BEV3/CHDKOM2 OBJNR /BEV3/CHTOBJ YVOBJNR
6 /BEV3/CHDKOM2 VOBJ TCLO OBTAB KEY 1 CN
7 /BEV3/CHDKOM2 VWDART /BEV3/CHTVWDART VWDART KEY 1 CN
8 /BEV3/CHDKOM2 YVORGE /BEV3/CHTBVORGE YVORGE KEY 1 CN
History
Last changed by/on SAP  20040210
SAP Release Created in
