SAP ABAP Table VCRD_P2D_AL (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure
General view structure	VCRD_P2D_AL	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client
2	APPL	☑	CRDAPPL	CACSAPPL	CHAR	6	0	Credentialing Application (CRD)
3	BOBJTYPE	☑	CRDOBJTYPE	CRDOBJTYPED	CHAR	3	0	Credentialing: Object Types
4	EVENTTYPE	☑	CRDEVENTTYPE	CRDEVENTTYPED	CHAR	3	0	Transaction Type
5	CONTEXT	☑	CRDCONTEXT	CRDCONTEXTD	CHAR	5	0	Context of Credentials Check	TCRD_CONTXT
6	VERSION	☑	CACSVERSION	CACSVERSION	NUMC	6	0	Version of Master Data or Customizing Object
7	COMB_ID	☐	CRDCOMBID	CRD_COMBTP_ID	CHAR	12	0	Number of Characteristics Combination Type
8	REQ	☐	CRDREQ	CRDREQD	CHAR	5	0	Requirement	TCRD_RQMNT
9	TEXT	☐	CRD_TEXT	TEXT40	CHAR	40	0	Description (for Text Tables)
10	BUSI_BEGIN	☐	CACS_BUSITIME_B	CACSTIMESTAMP	NUMC	14	0	Effective from
11	BUSI_END	☐	CACS_BUSITIME_E	CACSTIMESTAMP	NUMC	14	0	Effective Until (Time Stamp: YYYY.MM.DD hh:mm:ss)
12	TECH_BEGIN	☐	CACS_TECHTIME_B	CACSTIMESTAMP	NUMC	14	0	Technically Valid From
13	TECH_END	☐	CACS_TECHTIME_E	CACSTIMESTAMP	NUMC	14	0	Technically Valid To (Time Stamp: JJJJ.MM.TT hh:mm:ss)
14	FLG_CANCEL_OBJ	☐	CACSCANCOBJ	BOOLEAN_FLG	CHAR	1	0	Indicator: Object is Invalid
15	FLG_CANCEL_VERS	☐	CACSCANCVERS	BOOLEAN_FLG	CHAR	1	0	Indicator: Version is Invalid
16	CHG_TCODE	☐	CACSCDTC	TCODE	CHAR	20	0	Transaction in Which the Change Was Made
17	CHG_USR	☐	CACSCHUSR	USNAM	CHAR	12	0	Last user to change object
18	TRI_METH_TYP	☐	CACSTRIMETHTYP	CACSOPTYPE	CHAR	1	0	Triggering Method
19	TRI_METH_TARGET	☐	CACSTRIMETHTAR	CACSTRITARGET	CHAR	1	0	Processing Target of Triggering Method
20	STATUS_VERSION	☐	CACSSTATUSVERS	CACSSTATUSVERS	CHAR	1	0	Object Version Status	TCACS_VALSTAT1
21	STATUS_WORK	☐	CACSSTATUSWORK	CACSSTATUSWORK	CHAR	1	0	Object Version Processing Status	TCACS_VALSTAT1

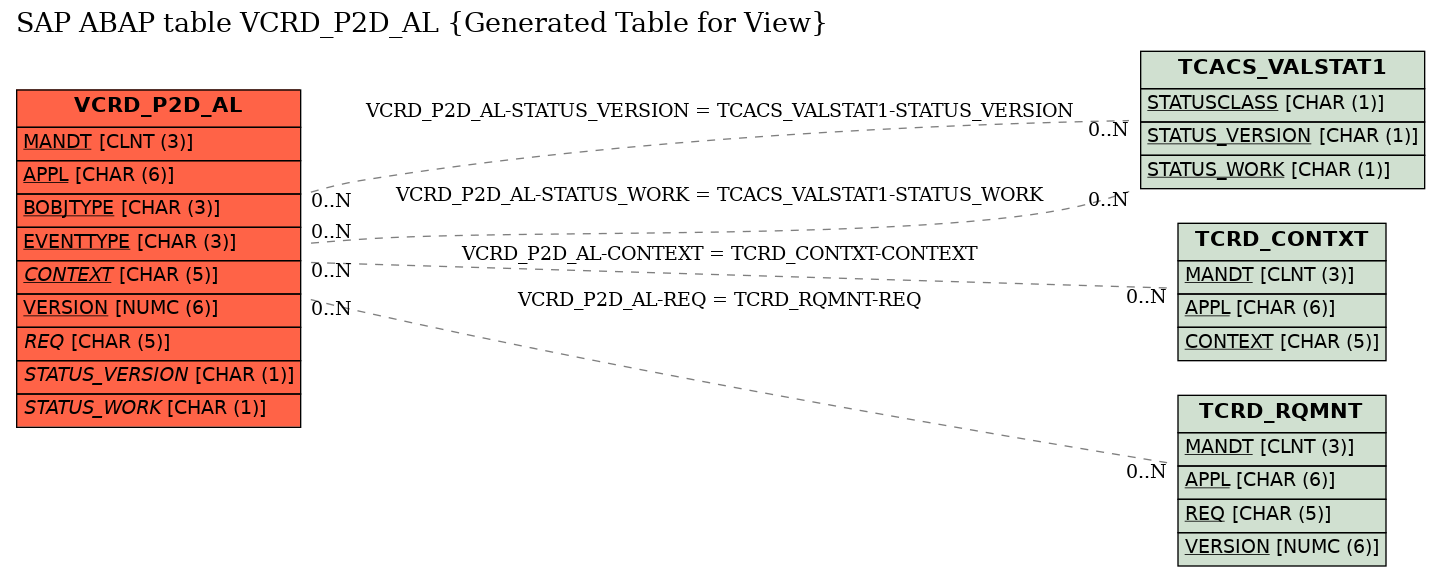

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	VCRD_P2D_AL	CONTEXT	TCRD_CONTXT	CONTEXT
2	VCRD_P2D_AL	REQ	TCRD_RQMNT	REQ
3	VCRD_P2D_AL	STATUS_VERSION	TCACS_VALSTAT1	STATUS_VERSION
4	VCRD_P2D_AL	STATUS_WORK	TCACS_VALSTAT1	STATUS_WORK

History

Last changed by/on	SAP	20130529
SAP Release Created in
