SAP ABAP Table V_GLE_ARC_USR (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

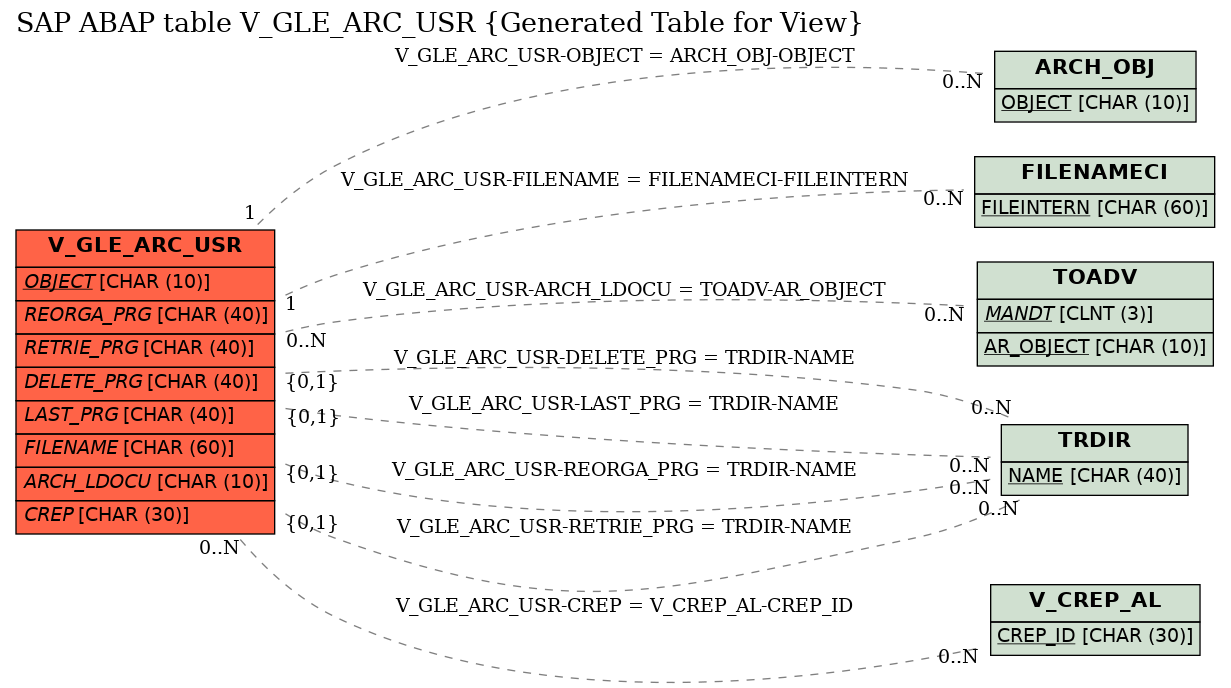

General view structure	V_GLE_ARC_USR	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT	☑	OBJCT_TR01	OBJCT_TR01	CHAR	10	0	Archiving Object	ARCH_OBJ
2	APPLIC	☐	APPLI_TR01	APPLI_TR01	CHAR	2	0	Application area
3	REORGA_PRG	☐	RRGID_TR01	PROGNAME	CHAR	40	0	Write Program	TRDIR
4	RETRIE_PRG	☐	RRTID_TR01	PROGNAME	CHAR	40	0	Reload program	TRDIR
5	DELETE_PRG	☐	DELETE_PRG	PROGNAME	CHAR	40	0	Name of delete program	TRDIR
6	LAST_PRG	☐	LAST_PRG	PROGNAME	CHAR	40	0	Postprocessing Program for Archiving Object	TRDIR
7	OBJTEXT	☐	OBTXT_TR01	TEXT50	CHAR	50	0	Description of the archiving object
8	FILENAME	☐	FILEINTERN	FILEINTERN	CHAR	60	0	Logical file name	FILENAMECI
9	ARCH_CNTRL	☐	ARCH_CNTRL	CHAR10	CHAR	10	0	Control field for delete programs in archiving
10	ARCH_LINK	☐	ARCH_LINK	X	CHAR	1	0	Automatic Storage of Archive Files in Storage System
11	ARCH_SIZE	☐	ARCH_SIZE	U_INT_4	INT4	10	0	Maximum Size of an Archive File in Megabyte
12	ARCH_COUNT	☐	ARCH_COUNT	U_INT_4	INT4	10	0	Maximum Number of Objects Allowed in an Archive File
13	ARCH_DEL	☐	ARCH_DEL	X	CHAR	1	0	Automatic Start of Delete Program
14	ARCH_COMIT	☐	ARCH_COMIT		INT4	10	0	Number of Data Objects Per Commit in Program
15	ARCH_LDOCU	☐	SAEOBJART	SADC10_DV	CHAR	10	0	Document type	TOADV
16	PROD_VARIA	☐	ARCH_VPROD	VARIANT	CHAR	14	0	Variant of Program for Production Mode
17	TEST_VARIA	☐	ARCH_VTEST	VARIANT	CHAR	14	0	Variant of Program for Test Mode
18	ARCH_INDEX	☐	ARCH_INDEX	X	CHAR	1	0	Indicates Whether an Index is to be Built for Data Objects
19	ARCH_LAST	☐	ARCH_LAST	CHAR1	CHAR	1	0	Automatic post-processing flag
20	LAST_VARIA	☐	ARCH_LPROD	VARIANT	CHAR	14	0	Variant for the Post Processing Program
21	CREP	☐	SCMS_CREP	SCMS_CREP	CHAR	30	0	Storage Repository for Physical Objects	V_CREP_AL
22	STORE_FRST	☐	ARCH_STORE	X	CHAR	1	0	Indicates Whether Storing File Takes Place Before Delete
23	READARCSYS	☐	ARCH_READ	X	CHAR	1	0	Indicates Whether Delete Program Reads from Storage System
24	BTCEVENTID	☐	BTCEVENTID	CHAR32	CHAR	32	0	Background Processing Event
25	BTCEVTPARM	☐	BTCEVTPARM	TEXT64	CHAR	64	0	Background Event Parameters (Such as, Jobname/Jobcount)
26	DEL_EVENT	☐	ARCH_D_EVT	X	CHAR	1	0	Event-Driven Start of Delete Job

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	V_GLE_ARC_USR	ARCH_LDOCU	TOADV	AR_OBJECT
2	V_GLE_ARC_USR	CREP	V_CREP_AL	CREP_ID
3	V_GLE_ARC_USR	DELETE_PRG	TRDIR	NAME	REF	C	CN
4	V_GLE_ARC_USR	FILENAME	FILENAMECI	FILEINTERN	KEY	1	CN
5	V_GLE_ARC_USR	LAST_PRG	TRDIR	NAME	REF	C	CN
6	V_GLE_ARC_USR	OBJECT	ARCH_OBJ	OBJECT	KEY	1	CN
7	V_GLE_ARC_USR	REORGA_PRG	TRDIR	NAME	REF	C	CN
8	V_GLE_ARC_USR	RETRIE_PRG	TRDIR	NAME	REF	C	CN

History

Last changed by/on	SAP	20131127
SAP Release Created in
