SAP ABAP Table TE121 (Tolerance Limits of Independent Validations)
Hierarchy
☛
IS-UT (Software Component) SAP Utilities/Telecommunication
⤷ IS-U-DM-MR (Application Component) Meter Reading
⤷ EE17 (Package) IS-U: Meter Reading Data Entry
⤷ IS-U-DM-MR (Application Component) Meter Reading
⤷ EE17 (Package) IS-U: Meter Reading Data Entry
Basic Data
Table Category | TRANSP | Transparent table |
Transparent table | TE121 | Table Relationship Diagram |
Short Description | Tolerance Limits of Independent Validations |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
2 | PRUEFKL | PRUEFKL | PRUEFKL | CHAR | 4 | 0 | Validation class for independent validations | TE408 | |
3 | VERBAB0 | VERBAB0 | E_VERBR0 | DEC | 17 | 0 | Valid-from consumption for an interval of tolerance limits | ||
4 | INTERV_TOL | INTERV_TOL | INTERV_TOL | NUMC | 1 | 0 | Interval number for tolerance limits | ||
5 | FEHLKLAS | FEHLKLAS | FEHLKLAS | CHAR | 1 | 0 | Error class for validations | ||
6 | VERBBIS0 | VERBBIS0 | E_VERBR0 | DEC | 17 | 0 | Valid-to consumption for an interval of tolerance limits | ||
7 | VOGRENZE | VOGRENZE | PROZENT41 | DEC | 5 | 1 | Percentage of positive consumption deviation | ||
8 | VUGRENZE | VUGRENZE | PROZENT41 | DEC | 5 | 1 | Percentage of negative consumption deviation | ||
9 | VERBOGA0 | VERBOGA0 | E_VERBR0 | DEC | 17 | 0 | Positive absolute consumption deviation w/o decimal places | ||
10 | VERBUGA0 | VERBUGA0 | E_VERBR0 | DEC | 17 | 0 | Negative absolute consumption deviation w/o decimal places | ||
11 | STGFAKO | STGFAKO | FAKTOR109 | DEC | 10 | 9 | Upper limit gradient for moving tolerance limits | ||
12 | STGFAKU | STGFAKU | FAKTOR109 | DEC | 10 | 9 | Lower limit gradient for moving tolerance limits | ||
13 | PARFAKO | PARFAKO | FAKTOR64 | DEC | 6 | 4 | Upper displacement factor for moving tolerance limits | ||
14 | PARFAKU | PARFAKU | FAKTOR64 | DEC | 6 | 4 | Lower displacement factor for moving tolerance limits |

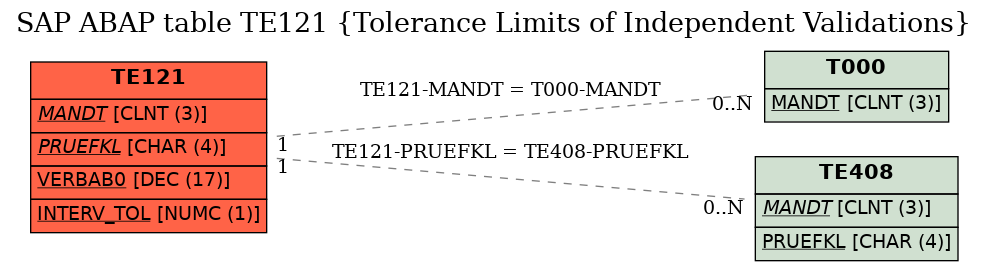

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | TE121 | MANDT | T000 | MANDT | KEY | 1 | CN |
2 | TE121 | PRUEFKL | TE408 | PRUEFKL | KEY | 1 | CN |
History
Last changed by/on | SAP | 20050224 |
SAP Release Created in |
