SAP ABAP Table SMOIMPTT (Measuring point (table))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MSA (Application Component) Mobile Sales
     ⤷ SMO3 (Package) Consolidated Database

Basic Data

Table Category	TRANSP	Transparent table

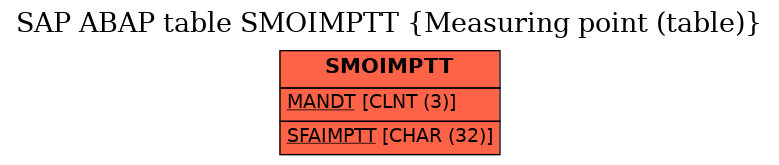

Transparent table	SMOIMPTT	Table Relationship Diagram
Short Description	Measuring point (table)

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SFAIMPTT	☑	SMO_SFAIMP	SMO_GUID	CHAR	32	0	SFA Key for Measurement Point
3	SFAIMPT2	☐	SMO_SFAIM2	SMO_GUID	CHAR	32	0	SFA Key of the Reference Meas. Point
4	SFAEQUI	☐	SMO_SFAEQI	SMO_GUID	CHAR	32	0	SFA Key of Equipment (EQUI)
5	SFAIFLOT	☐	SMO_SFAIFL	SMO_GUID	CHAR	32	0	SFA Key for Functional Location
6	SFACABN	☐	SMO_SFACAB	SMO_GUID	CHAR	32	0	SFA Key of Characteristic/Attribute
7	SOURCE	☐	SMO_SOURCE	SMO_SOURCE	CHAR	3	0	Source of an object
8	POINT	☐	SMO3IMRC34	SMO3IMRC_8	CHAR	12	0	Measuring point
9	MPOBJ	☐	SMO3IMRC27	SMO3J_OBJ	CHAR	22	0	Object number of the measuring point object
10	PSORT	☐	SMO3IMRC36	CHAR20	CHAR	20	0	Position number of the object measuring point (sort field)
11	PSORTR	☐	SMO3IMRCR4	X	CHAR	1	0	Indicator: position number comes from reference MeasPoint
12	PTTXT	☐	SMO3IMRC37	TEXT40	CHAR	40	0	Description of measuring point
13	MLANG	☐	SMO_LANGU	SMO_LANGU	CHAR	2	0	Language
14	KZLTX	☐	SMO3ILOM_2	X	CHAR	1	0	Indicator: Long text exists
15	MPTYP	☐	SMO3IMRC29	SMO3IMRC_6	CHAR	1	0	Measuring point category
16	IRFMP	☐	SMO3IMRC23	X	CHAR	1	0	Indicator: MeasPoint is a reference measuring point
17	ERDAT	☐	SMO3ICRDT	DATUM	DATS	8	0	Date on which the object was created
18	ERNAM	☐	SMO3ICRNA	USNAM	CHAR	12	0	Name of the user who created the object
19	AEDAT	☐	SMO3IUPDT	DATUM	DATS	8	0	Date on which the object was last changed
20	AENAM	☐	SMO3IUPNA	USNAM	CHAR	12	0	Name of the user who last changed the object
21	INACT	☐	SMO3IMRC18	X	CHAR	1	0	Indicator: measuring point inactive
22	LVORM	☐	SMO3IMRC10	SMO3IMRC_2	CHAR	1	0	Deletion flag for 2-level deletion logic
23	REFMP	☐	SMO3IMRC43	SMO3IMRC_8	CHAR	12	0	Reference measuring point
24	ATINN	☐	SMO3ATINN	SMO3ATINN	NUMC	10	0	Internal characteristic
25	ATINNR	☐	SMO3IMRCR	X	CHAR	1	0	Indicator: character comes from reference measuring point
26	EXPON	☐	SMO3IMRC15	SMO3IMRC_3	INT2	5	0	Power of ten exponent for floating point display
27	DECIM	☐	SMO3IMRC_8	SMO3IMRC_	INT2	5	0	Number of decimal places for number display
28	DESIR	☐	SMO3IMRC11	SMO3IMRC_4	FLTP	16	16	Measuring point target value
29	DESIRR	☐	SMO3IMRCR2	X	CHAR	1	0	Indicator: target value comes from reference measuring point
30	DSTXT	☐	SMO3IMRC13	TEXT40	CHAR	40	0	Measuring point additional short text
31	DSTXTR	☐	SMO3IMRCR3	X	CHAR	1	0	Indicator: additional text comes from reference MeasPoint
32	MRMIN	☐	SMO3IMRC32	SMO3IMRC_4	FLTP	16	16	Lower measurement range limit/minimum total counter reading
33	MRMAX	☐	SMO3IMRC30	SMO3IMRC_4	FLTP	16	16	Upper measurement range limit/maximum total counter reading
34	MRNGU	☐	SMO3IMRC33	MEINS	UNIT	3	0	Measurement range unit	*
35	INDCT	☐	SMO3IMRC19	X	CHAR	1	0	Indicator to show that measuring point is a counter
36	INDRV	☐	SMO3IMRC20	X	CHAR	1	0	Indicator: counter runs backwards
37	INDTR	☐	SMO3IMRC21	X	CHAR	1	0	Indicator: copying of measurement readings desirable
38	TRANS	☐	SMO3IMRC50	SMO3IMRC_8	CHAR	12	0	Measuring point from which MeasReading transfer was copied
39	CJUMP	☐	SMO3IMRC_3	SMO3IMRC_4	FLTP	16	16	Counter overflow reading in SI unit
40	PYEAR	☐	SMO3IMRC38	SMO3IMRC_4	FLTP	16	16	Annual estimate in SI unit
41	CODCT	☐	SMO3IMRC_6	SMO3QKATA	CHAR	1	0	Catalog type - measurement reading valuation code
42	CODGR	☐	SMO3IMRC_7	SMO3QCODE1	CHAR	8	0	Code group - measurement reading valuation code
43	CODGRR	☐	SMO3IMRCR1	X	CHAR	1	0	Indicator: code group comes from reference measuring point
44	CDSUF	☐	SMO3IMRC_2	X	CHAR	1	0	Indicator: valuation code sufficient for measurmnt. document
45	NON_GUID	☐	SMO_NGUID	SMO_NGUID	DEC	1	0	Not Guided Record
46	.INCLUDE	☐				0	0	Communication Fields for Mobile Sales/Service
47	TR_USER	☐	SMO_TR_USR	SMO_TR_USR	CHAR	32	0	Transaction User
48	TR_ID	☐	SMO_TR_ID	SMO_TR_ID	CHAR	32	0	Transaction Identifier
49	TR_STATUS	☐	SMO_TR_STS	SMO_TR_STS	CHAR	4	0	Status of Transaction
50	TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
51	DELETED	☐	SMO_DELETD	SMO_DELETD	CHAR	1	0	Mobile Sales Deleted
52	TR_ROOTID	☐	SMO_RTGUID	SMO_GUID	CHAR	32	0	Identifier of BDoc Root object

History

Last changed by/on	SAP	20100420
SAP Release Created in
