SAP ABAP Table SMO8FTCFG (Flow Control Trace: Current configuration)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMO8 (Package) Flow Control I

Basic Data

Table Category	TRANSP	Transparent table

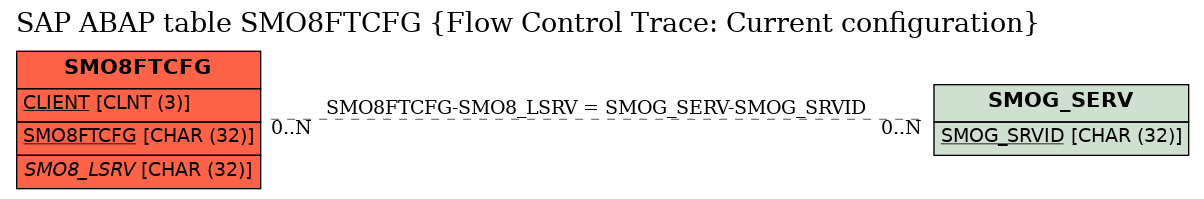

Transparent table	SMO8FTCFG	Table Relationship Diagram
Short Description	Flow Control Trace: Current configuration

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SMO8FTCFG	☑	SMOG_TID	SMOG_GUID	CHAR	32	0	BDoc Message ID
3	SMO8FTSTPN	☐	SMO8FTSTPN	SMO8FTSTP	NUMC	5	0	Flow Control Trace: Step number in flow process
4	SMO8FTLOCK	☐	SMO8FTLOCK	SMO8FTLOCK	CHAR	1	0	Flow Control Trace: Lock flag for configuration
5	.INCLUDE	☐				0	0	Flow Control Trace: Data for each step
6	SMO8FTTYPE	☐	SMO8FTSTPT	SMO8FTSTPT	CHAR	10	0	Flow Control Trace: Flow Step type
7	SMO8FTTIME	☐	TZNTSTMPL	TZNTSTMPL	DEC	21	7	UTC time stamp in long form (YYYYMMDDhhmmss,mmmuuun)
8	SMO8FTUSER	☐	SMO8FTUSER	SYCHAR12	CHAR	12	0	Flow Control Trace: Change user
9	SMO8FTQNAM	☐	SMO8FTQNAM	TRFCQNAM	CHAR	24	0	Name of qRFC Queue name when calling flow trace API
10	SMO8FTFUNC	☐	SMO8FTFUNC	FUNCNAME	CHAR	30	0	Flow Control Trace: Function Name	*
11	TESTCASE	☐	SMO8TCASEN	SMO8TCASEN	CHAR	32	0	Key of a Flow Control Test Case
12	SMO8DBGKEY	☐	SMO8DBGKEY	SMO8DBGKEY	CHAR	32	0	Flow control debugger: debug key
13	.INCLUDE	☐				0	0	Unique Transaction ID (LUW -> COMMIT WORK)
14	ARFCIPID	☐	ARFCIPID	ARFCIPID	CHAR	8	0	Host ID (IP ID
15	ARFCPID	☐	ARFCPID	ARFCPID	CHAR	4	0	Process ID
16	ARFCTIME	☐	ARFCTIME	ARFCTIME	CHAR	8	0	Time Stamp
17	ARFCTIDCNT	☐	ARFCTIDCNT	ARFCTIDCNT	CHAR	4	0	Transaction ID (LUW -> COMMIT WORK)
18	SMO8_DEL	☐	SMO8_DEL	SMO8_DEL	CHAR	1	0	Deletion flag
19	SMO8_TRCID	☐	SMO8_TRCID	SMO8_TRCID	CHAR	15	0	Trace ID
20	SMO8_LSRV	☐	SMO8_LSRV	SMOG_SRVID	CHAR	32	0	Last Service reached	SMOG_SERV
21	MSG_TYPE	☐	SMOG_MTYPE	SMW_MTYPE	CHAR	1	0	Message validation type (C,E,T,I,X)
22	TYPE_	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
23	ID_	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
24	NUMBER_	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
25	MESSAGE_	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
26	.INCLUDE	☐				0	0	Flow Control Server Header extension for error handling
27	ERHRESOLTN	☐	SMWCNFLRES	SMWCNFLRES	CHAR	6	0	Action for Conflict Resolution of Flow Control
28	ERHMSGTYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
29	ERHMSGID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
30	ERHMSGNO	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMO8FTCFG	SMO8_LSRV	SMOG_SERV	SMOG_SRVID

History

Last changed by/on	SAP	20130604
SAP Release Created in
