SAP ABAP Table SAPRDEV_0210_TC (IS-U Device Checker: Scr. 0210, Table Contr. Error Analysis)

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-DM (Application Component) Device Management
     ⤷ EE07TOOLS (Package) IS-U Device Checker, Analysis and Repair

Basic Data

Table Category	INTTAB	Structure

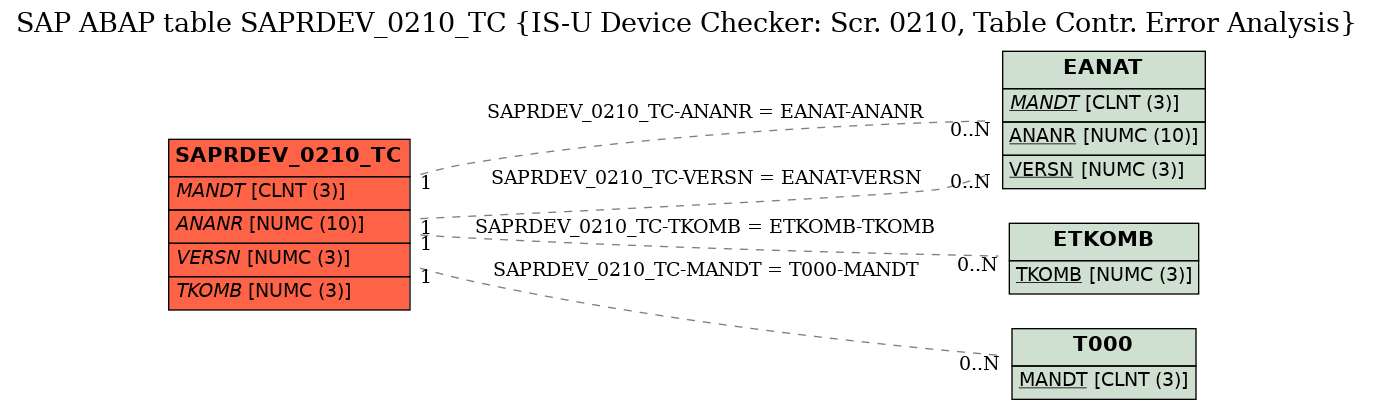

Structure	SAPRDEV_0210_TC	Table Relationship Diagram
Short Description	IS-U Device Checker: Scr. 0210, Table Contr. Error Analysis

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IS-U Device Checker: Current Processing Status of Test
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	ANANR	☐	ANANR	NUMC10	NUMC	10	0	Unique Number of Analysis	EANAT
4	VERSN	☐	E_VERSION	NUMC3	NUMC	3	0	Number of Analysis Version	EANAT
5	TKOMB	☐	E_TKOMB	NUMC3	NUMC	3	0	Test Combination	ETKOMB
6	VON	☐	E_VON	CHAR30	CHAR	30	0	Number of First Object to be Tested
7	BIS	☐	E_BIS	CHAR30	CHAR	30	0	Number of Last Object to be Tested
8	STAND	☐	E_STAND	CHAR30	CHAR	30	0	Element Last Tested
9	.INCLUDE	☐				0	0	Creation and Change Data
10	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
11	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
12	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
13	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
14	AUSNA	☐	E_AUSNA	AS4TAB	CHAR	30	0	Initial Table for a Test Combination	*
15	KEYNA	☐	KEYNA	FDNAME	CHAR	30	0	Field Name for Interval Calculation	*
16	PRUNA	☐	E_PRUNA	AS4TAB	CHAR	30	0	Check Table for a Test Combination	*
17	AUSWL	☐	TAUSW	KENNZX	CHAR	1	0	IS-U Device Checker: Ind.: Select Test Combination

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SAPRDEV_0210_TC	ANANR	EANAT	ANANR		1	CN
2	SAPRDEV_0210_TC	MANDT	T000	MANDT	KEY	1	CN
3	SAPRDEV_0210_TC	TKOMB	ETKOMB	TKOMB		1	CN
4	SAPRDEV_0210_TC	VERSN	EANAT	VERSN		1	CN

History

Last changed by/on	SAP	20050224
SAP Release Created in
