SAP ABAP Table RSARCH_S_IPRO (BW Archiving: Characteristics of an InfoProvider)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-DST (Application Component) Data Staging
     ⤷ RSARCH (Package) BW Archiving

Basic Data

Table Category	INTTAB	Structure

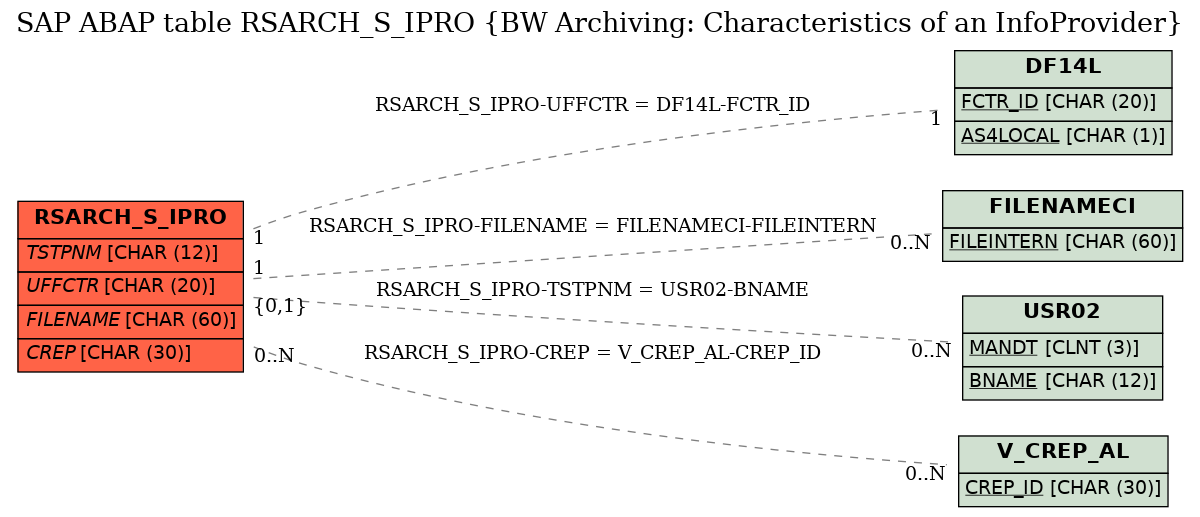

Structure	RSARCH_S_IPRO	Table Relationship Diagram
Short Description	BW Archiving: Characteristics of an InfoProvider

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BW Archiving: General Archiving Properties
2	INFOPROV	☐	RSINFOPROV	RSINFOPROV	CHAR	30	0	InfoProvider
3	OBJVERS	☐	RSOBJVERS	RSOBJVERS	CHAR	1	0	Object version
4	.INCLUDE	☐				0	0	Include: Last changed by, time stamp in internal format
5	TSTPNM	☐	RSTSTPNM	XUBNAME	CHAR	12	0	Last changed by	USR02
6	TIMESTMP	☐	RSTIMESTMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
7	UFFCTR	☐	UFFCTR	UFFCTR	CHAR	20	0	Application Component	DF14L
8	FILENAME	☐	FILEINTERN	FILEINTERN	CHAR	60	0	Logical file name	FILENAMECI
9	ARCH_DEL	☐	ARCH_DEL	X	CHAR	1	0	Automatic Start of Delete Program
10	ARCH_SIZE	☐	ARCH_SIZE	U_INT_4	INT4	10	0	Maximum Size of an Archive File in Megabyte
11	ARCH_COUNT	☐	ARCH_COUNT	U_INT_4	INT4	10	0	Maximum Number of Objects Allowed in an Archive File
12	CREP	☐	SCMS_CREP	SCMS_CREP	CHAR	30	0	Storage Repository for Physical Objects	V_CREP_AL
13	ARCH_LINK	☐	ARCH_LINK	X	CHAR	1	0	Automatic Storage of Archive Files in Storage System
14	STORE_FRST	☐	ARCH_STORE	X	CHAR	1	0	Indicates Whether Storing File Takes Place Before Delete
15	READARCSYS	☐	ARCH_READ	X	CHAR	1	0	Indicates Whether Delete Program Reads from Storage System
16	BTCEVENTID	☐	BTCEVENTID	CHAR32	CHAR	32	0	Background Processing Event
17	BTCEVTPARM	☐	BTCEVTPARM	TEXT64	CHAR	64	0	Background Event Parameters (Such as, Jobname/Jobcount)
18	DEL_EVENT	☐	ARCH_D_EVT	X	CHAR	1	0	Event-Driven Start of Delete Job
19	ARCHTYPE	☐	RSARCHTYPE	RSARCHTYPE	CHAR	1	0	BW Archiving: Selection Type
20	TIMNM	☐	RSTIMNM	RSIOBJNM	CHAR	30	0	Time characteristic
21	DEL_MODE	☐	RSDRD_MODE		CHAR	1	0	Delete mode
22	DEL_THRESHOLD	☐	RSARCHDELTHRESH	RSARCHDELTHRESH	DEC	3	0	BW Archiving: Threshold for Selective Reorganization
23	DEL_PARALLEL_DEG	☐	INT4	INT4	INT4	10	0	Natural number
24	RANGE_PROTECTION	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean
25	MAXOBJSIZE	☐	INT4	INT4	INT4	10	0	Natural number
26	X_FISCVARNT	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSARCH_S_IPRO	CREP	V_CREP_AL	CREP_ID
2	RSARCH_S_IPRO	FILENAME	FILENAMECI	FILEINTERN	KEY	1	CN
3	RSARCH_S_IPRO	TSTPNM	USR02	BNAME	KEY	C	CN
4	RSARCH_S_IPRO	UFFCTR	DF14L	FCTR_ID		1	1

History

Last changed by/on	SAP	20141013
SAP Release Created in	30A
