SAP ABAP Table ROIO_SP_TREE_SHPMT (Shipment fields for packing tree)

Hierarchy

☛ IS-OIL (Software Component) IS-OIL
   ⤷ IS-OIL-OLM (Application Component) Remote Logistics Management
     ⤷ OIO (Package) RLM Remote Logistic Management

Basic Data

Table Category	INTTAB	Structure

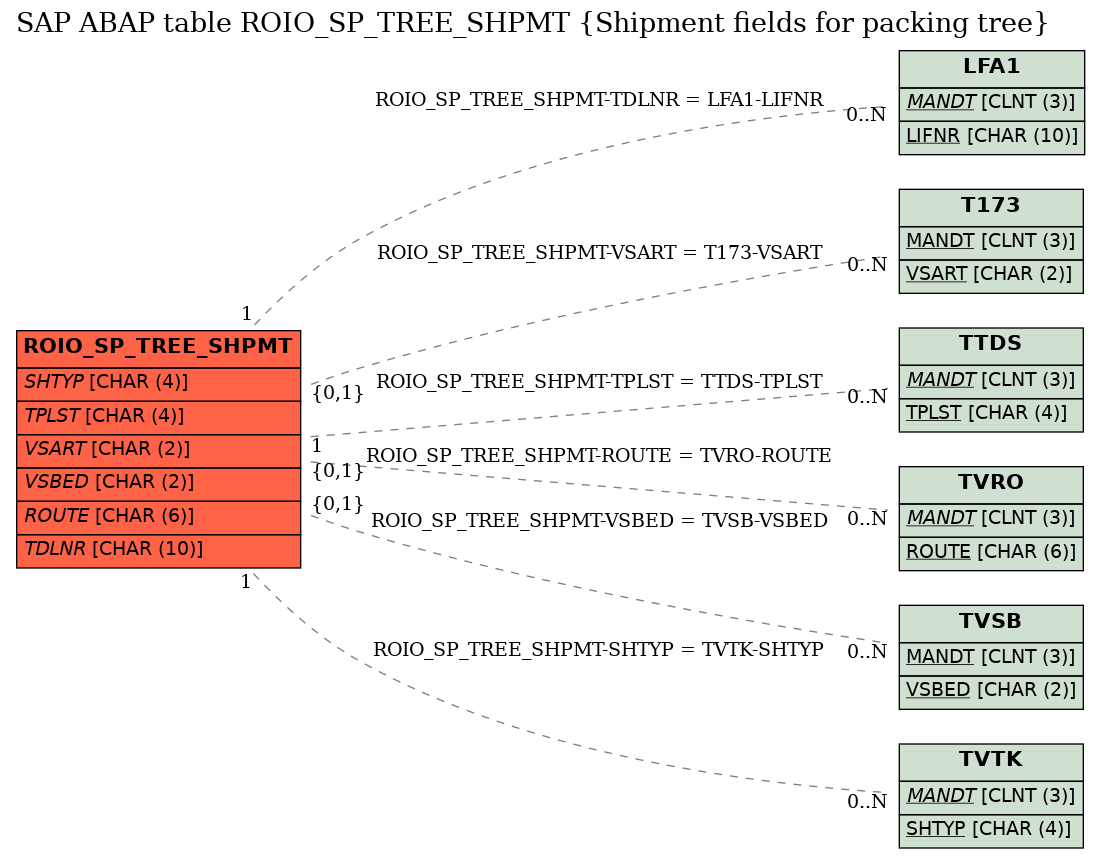

Structure	ROIO_SP_TREE_SHPMT	Table Relationship Diagram
Short Description	Shipment fields for packing tree

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TKNUM	☐	TKNUM	TKNUM	CHAR	10	0	Shipment Number	*
2	SHTYP	☐	SHTYP	SHTYP	CHAR	4	0	Shipment type	TVTK
3	TPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
4	VSART	☐	VSARTTR	VERSART	CHAR	2	0	Shipping type	T173
5	VSBED	☐	VSBED	VSBED	CHAR	2	0	Shipping conditions	TVSB
6	ROUTE	☐	ROUTR	ROUTE	CHAR	6	0	Shipment route	TVRO
7	SIGNI	☐	SIGNI	TEXT20	CHAR	20	0	Container ID
8	EXTI1	☐	EXTI1	TEXT20	CHAR	20	0	External identification 1
9	EXTI2	☐	EXTI2	TEXT20	CHAR	20	0	External identification 2
10	TPBEZ	☐	TPBEZ	TEXT20	CHAR	20	0	Description of Shipment
11	STDIS	☐	STDIS	STTRA	CHAR	1	0	Status of transportation planning
12	STREG	☐	STREG	STTRA	CHAR	1	0	Status of check-in
13	STLBG	☐	STLBG	STTRA	CHAR	1	0	Status for start of loading
14	STLAD	☐	STLAD	STTRA	CHAR	1	0	Status for end of loading
15	STABF	☐	STABF	STTRA	CHAR	1	0	Status of shipment completion
16	STTBG	☐	STTBG	STTRA	CHAR	1	0	Status for start of shipment
17	STTEN	☐	STTEN	STTRA	CHAR	1	0	Status for end of shipment
18	STTRG	☐	STTRG	STTRG	CHAR	1	0	Overall transportation status
19	TDLNR	☐	TDLNR	LIFNR	CHAR	10	0	Number of forwarding agent	LFA1
20	TERNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ROIO_SP_TREE_SHPMT	ROUTE	TVRO	ROUTE	REF	C	CN
2	ROIO_SP_TREE_SHPMT	SHTYP	TVTK	SHTYP	REF	1	CN
3	ROIO_SP_TREE_SHPMT	TDLNR	LFA1	LIFNR	REF	1	CN
4	ROIO_SP_TREE_SHPMT	TPLST	TTDS	TPLST	REF	1	CN
5	ROIO_SP_TREE_SHPMT	VSART	T173	VSART	REF	C	CN
6	ROIO_SP_TREE_SHPMT	VSBED	TVSB	VSBED	REF	C	CN

History

Last changed by/on	SAP	20050224
SAP Release Created in
