SAP ABAP Table RN2GL_TM_STEP_C (pathways Step in Patient Pathway)

Hierarchy

☛

IS-H (Software Component) SAP Healthcare
⤷

IS-HMED (Application Component) Clinical System
⤷

NMED_GL (Package) IS-H*MED: Treatment Pathways

Basic Data

Table Category	INTTAB	Structure

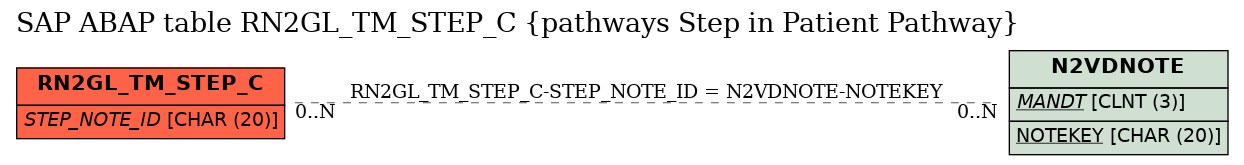

Structure	RN2GL_TM_STEP_C	Table Relationship Diagram
Short Description	pathways Step in Patient Pathway

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components


	Field	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE				0	0	pathways Step of Patient Pathway
2	MANDT	MANDT	MANDT	CLNT	3	0	Client	*
3	SCHEDULE_ID	N2GL_TM_ID	SYSUUID_C	CHAR	32	0	Patient Pathway Key
4	STEP_ID	N2GL_STEP_ID	SYSUUID_C	CHAR	32	0	Step Key
5	EINRI	EINRI	EINRI	CHAR	4	0	IS-H: Institution	*
6	FALNR	FALNR	FALNR	CHAR	10	0	IS-H: Case Number	*
7	GROUP_ID	N2GL_GROUP_ID	SYSUUID_C	CHAR	32	0	Group ID
8	GROUP_NAME	N2GL_TITLE_GROUP	N2GL_ITEM_TITLE	CHAR	80	0	Name of the Group
9	SEQUENCE_NUMBER	N2GL_SEQUENCE_NUMBER	N2GL_SEQUENCE_NUMBER	INT4	10	0	Sequence Number
10	ITEM_ID	N2GL_ITEM_ID	SYSUUID_C	CHAR	32	0	Item ID
11	STEP_STATE	N2GL_STEP_STATE	N2GL_STEP_STATE	CHAR	2	0	Status of Step
12	STEP_NOTE_ID	N2VD_KEY	N2VD_KEY	CHAR	20	0	PD: PD Key	N2VDNOTE
13	ANSWER_TEXT	N2GL_ANSWER_TEXT	TEXT200	CHAR	200	0	Response Text
14	DURATION	N2GL_DURATION		INT4	10	0	Duration
15	ROLE_ID	N2GL_ROLE_ID	N1VORGANG	CHAR	4	0	pathways Responsibility ID	*
16	ROLE_TXT	N2GL_ROLE_TXT	N1C030	CHAR	30	0	Responsibility
17	REASON_ID	N2GL_NEWPLAN_REASON	CHAR3	CHAR	3	0	Reason for Rescheduling ID (Obsolete)
18	ITEMTYPE	N2GL_ITEMTYPE	N2GL_ITEMTYPE	CHAR	2	0	Item Type
19	TM_NAME	N2GL_STEP_NAME	N2GL_TM_NAME	CHAR	80	0	Name of a Step in Patient Pathway
20	PATH_RELEVANT	N2GL_PATHRELEVANT	ISH_ON_OFF	CHAR	1	0	Pathway Relevance
21	ACTION_TYPE	N2GL_ACTION_TYPE	N2GL_ACT_TYPE	CHAR	10	0	Action Type
22	BASE_ITEM_ID	N2GL_BASEITEM_ID	SYSUUID_C	CHAR	32	0	Base Items: Base Item Internal Key
23	ACTION_EXECUTED	N2GL_ACTION_EXECUTED	ISH_ON_OFF	CHAR	1	0	Action Was Executed
24	HAS_CORRESP_STEP	N2GL_HAS_CORRESP	ISH_ON_OFF	CHAR	1	0	Step Has Connected Step
25	HAS_DEPEND_STEP	N2GL_HAS_DEPENDENT	ISH_ON_OFF	CHAR	1	0	Step Is Dependent on Step
26	PLAN_DATE	N2GL_PLAN_DATE		DATS	8	0	Step Planned Date (Original Planning)
27	PLAN_TIME	N2GL_PLAN_TIME		TIMS	6	0	Step Planned Time (Original Planning)
28	NEW_PLAN_DATE	N2GL_NEW_PLAN_DATE		DATS	8	0	Step Planned Date: Sequence Calculation
29	NEW_PLAN_TIME	N2GL_NEW_PLAN_TIME		TIMS	6	0	Step Planned Time: Sequence Calculation
30	DONE_PLAN_DATE	N2GL_DONE_PLAN_DATE		DATS	8	0	Planned Step Date on Processing
31	DONE_PLAN_TIME	N2GL_DONE_PLAN_TIME		TIMS	6	0	Planned Step Time on Processing
32	DONE_DATE	N2GL_DONE_DATE		DATS	8	0	Step Processing Date
33	DONE_TIME	N2GL_DONE_TIME		TIMS	6	0	Step Processing Time
34	DONE_STATE	N2GL_DONE_STATE	N2GL_DONE_STATE	CHAR	2	0	Completion Status of Step
35	EMR	N2GL_VMA	RI_KUNNR	CHAR	10	0	Employee Responsible	*
36	UNPLANNED_STEP	N2GL_STEP_UNPLANNED	ISH_ON_OFF	CHAR	1	0	Plan Time of Step not yet Determined
37	URL_ID	N2GL_URL_ID	SYSUUID_C	CHAR	32	0	ID of URL
38	.INCLUDE				0	0	Date and User for Insert, Change, Delete
39	INSDATE	N2GL_INSDATE	N2GL_DATE	DATS	8	0	Created On
40	INSUSER	N2GL_INSUSER	N2GL_USER	CHAR	12	0	User who Created Data Record
41	UPDDATE	N2GL_UPDDATE	N2GL_DATE	DATS	8	0	Date on Which Record Was Last Changed
42	UPDUSER	N2GL_UPDUSER	N2GL_USER	CHAR	12	0	User who Last Changed Record
43	DELDATE	N2GL_DELDATE	N2GL_DATE	DATS	8	0	Date, on Which Deletion Indicator Was Set
44	DELUSER	N2GL_DELUSER	N2GL_USER	CHAR	12	0	User Who Set Deletion Indicator
45	DELFLAG	N2GL_DELFLAG	ISH_ON_OFF	CHAR	1	0	Deletion Indicator
46	LAST_CHANGE	N2GL_LAST_CHANGE	TZNTSTMPL	DEC	21	7	Time Stamp of Last Change
47	ACTION_BEHAVIOR	N2GL_ACTION_BEHAVIOR	N2GL_ACTION_BEHAVIOR	CHAR	2	0	Action Behavior When Confirming a Step
48	DIFF_PLAN_DONE	N2GL_DIFFERENCE_PLAN_DONE	N2GL_DIFFERENCE	INT4	10	0	pathways Difference Completion Date/Original Date Planned
49	EINRI_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
50	FALNR_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
51	GROUP_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
52	GROUP_NAME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
53	SEQUENCE_NUMBER_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
54	ITEM_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
55	STEP_STATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
56	STEP_NOTE_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
57	ANSWER_TEXT_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
58	DURATION_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
59	ROLE_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
60	ROLE_TXT_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
61	REASON_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
62	ITEMTYPE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
63	TM_NAME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
64	PATH_RELEVANT_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
65	ACTION_TYPE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
66	BASE_ITEM_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
67	ACTION_EXECUTED_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
68	HAS_CORRESP_STEP_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
69	HAS_DEPEND_STEP_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
70	PLAN_DATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
71	PLAN_TIME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
72	NEW_PLAN_DATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
73	NEW_PLAN_TIME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
74	DONE_PLAN_DATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
75	DONE_PLAN_TIME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
76	DONE_DATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
77	DONE_TIME_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
78	DONE_STATE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
79	EMR_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
80	UNPLANNED_STEP_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
81	URL_ID_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
82	SNOOZE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
83	DIFF_PLAN_DONE_X	ISHMED_CHANGE	XFELD	CHAR	1	0	Change-Flag, ie. 'X' if field is changed
