SAP ABAP Table RMSAS_HDR_IO (RMS: I/O Structure for Header Data)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSATLVRS (Package) RMS-ATL: Versioning / Sequencing

Basic Data

Table Category	INTTAB	Structure
Structure	RMSAS_HDR_IO	Table Relationship Diagram
Short Description	RMS: I/O Structure for Header Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Standard fields for IOTABs (step loop library)
2	MARKFLG	☐	ESEMARKFLG	ESDFLAG	CHAR	1	0	Row Is Selected
3	SELEFLG	☐	ESESELEFLG	ESDFLAG	CHAR	1	0	Step Loop Line Selected
4	LINENO	☐	ESECOUNTER	NUMC10	NUMC	10	0	General Auxiliary Counter
5	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
6	CHCOFLG	☐	ESECHCOFLG	ESDFLAG	CHAR	1	0	Indicator: Change number collision
7	LOCKMOD	☐	ESELOCKMOD	CHAR1	CHAR	1	0	Lock Mode (Shared, Exclusive)
8	INTRFLG	☐	ESEINTRFLG	ESDFLAG	CHAR	1	0	Flag for Internal Use
9	.INCLUDE	☐				0	0	RMS: Header Data Table for Versioning
10	.INCLUDE	☐				0	0	EHS: Standard Key Fields without Engin. Change Mgmt (ACTN)
11	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
12	RECN	☐	EHSBE_UUID_32	EHSBD_UUID_32	CHAR	32	0	GUID Number
13	DELFLG	☐	ESEDELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
14	OBJECTTYPE	☐	RMSAE_OBJ	RMSAD_OBJTYPE	CHAR	15	0	Object Type	RMSAC_OBJ_REG
15	OBJSUBTYPE	☐	RMSAE_SUBOBJ	RMSAD_SUBOBJTYPE	CHAR	15	0	Object Type	RMSAC_SUBOBJ
16	OBJECTKEY	☐	RMSAE_OBJKEY	RMSAD_OBJKEY	CHAR	50	0	Concatenated Technical Object Key
17	VRS_TYPE	☐	RMSAE_VRSTYPE	RMSAD_VRSTYPE	CHAR	3	0	Version Category
18	PREFIX	☐	RMSAE_PREFIX	RMSAD_PREFIX	CHAR	42	0	Key Part of a Version for Inspection
19	NAM	☐	RMSAE_OBJNAM	RMSAD_VRSNAM	CHAR	40	0	Complete Key of an Object Version
20	VALF	☐	RMSAE_VALFR	DATUM	DATS	8	0	Start of Validity
21	VALT	☐	RMSAE_VALTO	DATUM	DATS	8	0	End of Validity
22	FLG_INNR	☐	RMSAE_FLG_INNR	RMSAD_FLG	CHAR	1	0	Key Was Generated from Internal Number Range
23	FLG_OBSOLETE	☐	RMSAE_FLG_OBSL	RMSAD_FLG	CHAR	1	0	Object Is Obsolete
24	.INCLUDE	☐				0	0	RMS: As EHSBS_UADM_GUID_OAENR Without delflg
25	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
26	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
27	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
28	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
29	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	*
30	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
31	RECNROOT	☐	EHSBE_UUID_32	EHSBD_UUID_32	CHAR	32	0	GUID Number
32	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
33	.INCLUDE	☐				0	0	EHS: Dummy for Engineering Change Management Fields
34	ACTN	☐	EHSBE_UUID_32	EHSBD_UUID_32	CHAR	32	0	GUID Number
35	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
36	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
37	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	*

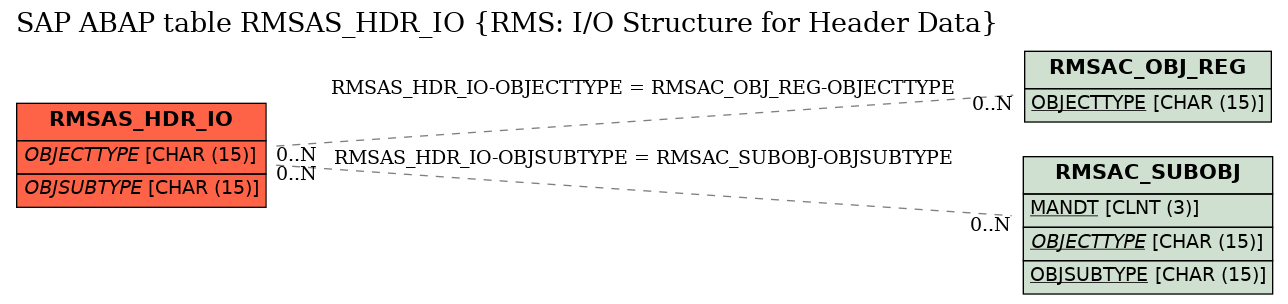

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RMSAS_HDR_IO	OBJECTTYPE	RMSAC_OBJ_REG	OBJECTTYPE
2	RMSAS_HDR_IO	OBJSUBTYPE	RMSAC_SUBOBJ	OBJSUBTYPE

History

Last changed by/on	SAP	20110901
SAP Release Created in	471
