SAP ABAP Table RCGLSYMDAT (EHS: Structure for Storing Symbol Properties for Phrases)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EHS-SAF (Application Component) Product Safety
     ⤷ CBUI (Package) Company Environment Information System

Basic Data

Table Category	INTTAB	Structure

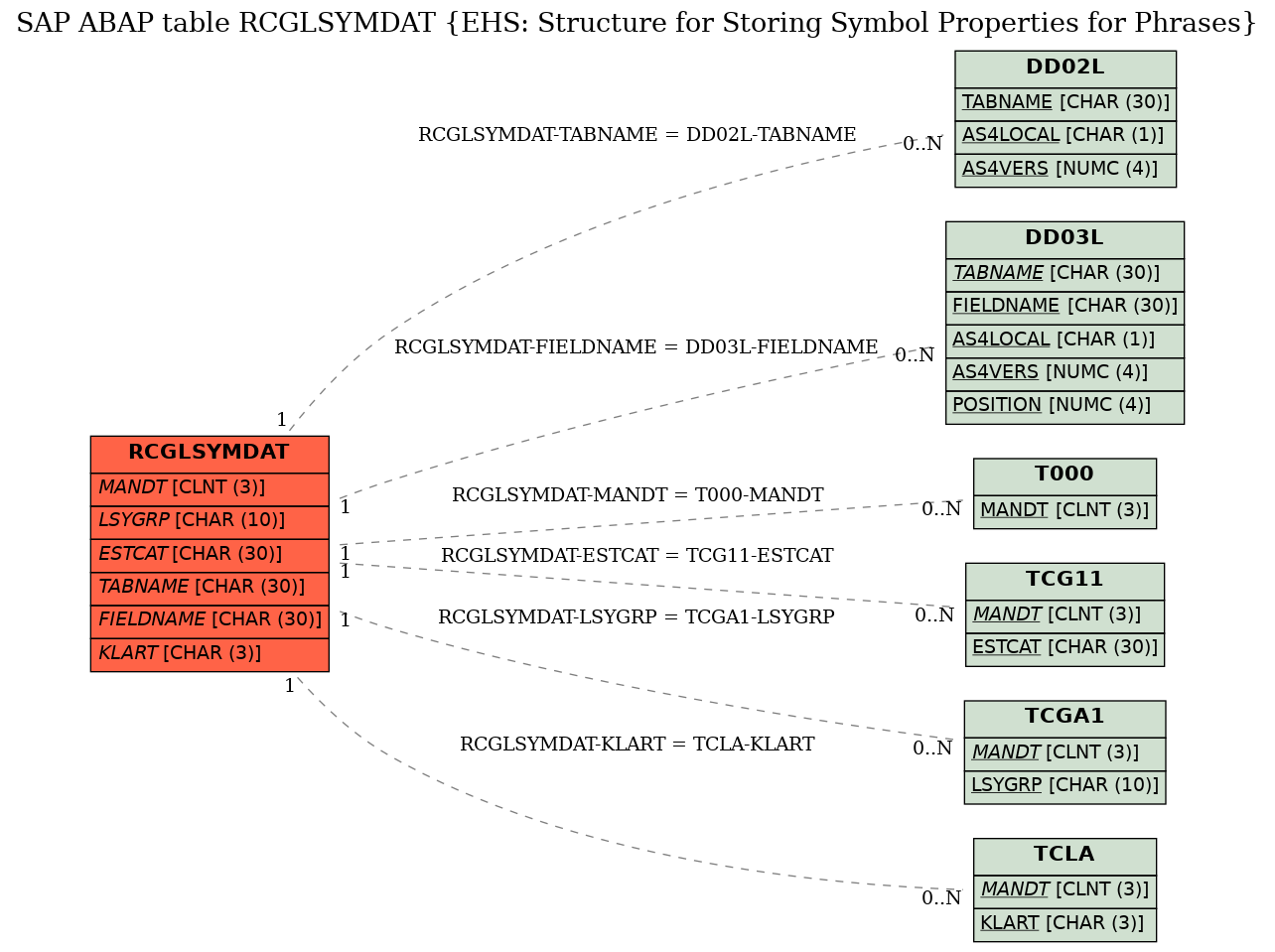

Structure	RCGLSYMDAT	Table Relationship Diagram
Short Description	EHS: Structure for Storing Symbol Properties for Phrases

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	COUNT	☐	INTEGER4		INT4	10	0	Integer 4
2	.INCLUDE	☐				0	0	EHS: Report Symbol
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	LSYTYPE	☐	ESELSYTYPE	ESDLSYTYPE	CHAR	2	0	Report Symbol Type
5	LSYID	☐	ESELSYID	ESDLSYID	CHAR	10	0	Report Symbol	*
6	LSYGRP	☐	ESELSYGRP	ESDLSYGRP	CHAR	10	0	Report Symbol Group	TCGA1
7	LSYFKOB	☐	ESELSYFKOB	CHAR30	CHAR	30	0	Access Key for Object
8	LSYFKEL	☐	ESELSYFKEL	CHAR30	CHAR	30	0	Object Name
9	LSYFKPA	☐	ESELSYFKPA	ESDLSYFKPA	CHAR	30	0	Additional Parameter for Access Key of Symbol Expansion
10	ESTCAT	☐	ESEESTCAT	ESDESTCAT	CHAR	30	0	Value Assignment Type	TCG11
11	LSYRTIM	☐	ESELSYRTIM	ESDLSYRTIM	CHAR	10	0	Expansion date for a report symbol
12	LSYRMOD	☐	ESELSYRMOD	ESDLSYRMOD	CHAR	10	0	Expansion Mode for a Report Symbol
13	LSYRPAR	☐	ESELSYRPAR	ESDLSYRPAR	CHAR	30	0	Expansion Parameters for a Report Symbol
14	LSYRVAL	☐	ESELSYRVAL	CHAR30	CHAR	30	0	Expansion Value for a Report Symbol
15	LSYUFLG	☐	ESELSYUFLG	ESDFLAG	CHAR	1	0	Report Symbol Is No Longer Used
16	TABNAME	☐	ESELSYTNAM	AS4TAB	CHAR	30	0	Table Name	DD02L
17	FIELDNAME	☐	ESELSYFNAM	FDNAME	CHAR	30	0	Field Name	DD03L
18	KLART	☐	ESELSYKLAR	KLASSENART	CHAR	3	0	Class Type	TCLA
19	CLASS	☐	ESELSYCLAS	KLASSE	CHAR	18	0	Class Number
20	ATNAM	☐	ESELSYATNA	ATNAM	CHAR	30	0	Characteristic Name
21	LMSGFLG	☐	ESELMSGFLG	ESDMSGFLG	CHAR	1	0	Message Type for Missing Mandatory Report Symbol

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCGLSYMDAT	ESTCAT	TCG11	ESTCAT		1	CN
2	RCGLSYMDAT	FIELDNAME	DD03L	FIELDNAME		1	CN
3	RCGLSYMDAT	KLART	TCLA	KLART		1	CN
4	RCGLSYMDAT	LSYGRP	TCGA1	LSYGRP	REF	1	CN
5	RCGLSYMDAT	MANDT	T000	MANDT	KEY	1	CN
6	RCGLSYMDAT	TABNAME	DD02L	TABNAME		1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
