SAP ABAP Table RCBDUAPISP (EHS: API Structure Special Provisions)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ EHS-DGP (Application Component) Dangerous Goods Management
     ⤷ CBDG (Package) PI-EH&S Dangerous Goods Management

Basic Data

Table Category	INTTAB	Structure

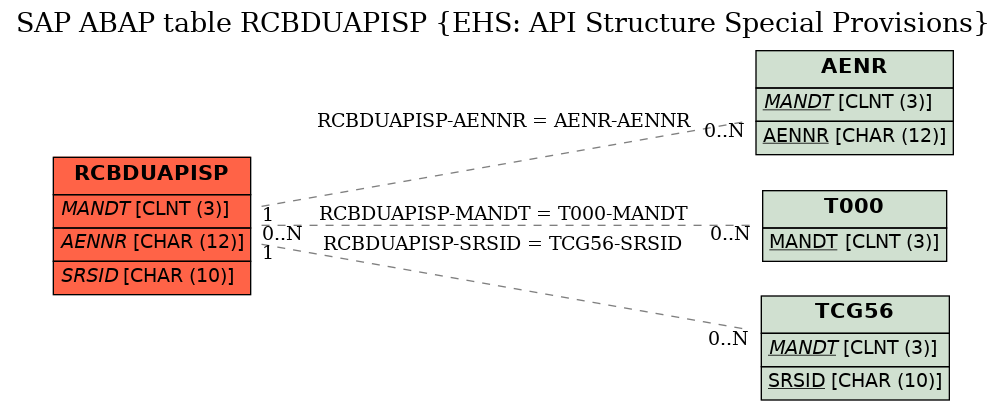

Structure	RCBDUAPISP	Table Relationship Diagram
Short Description	EHS: API Structure Special Provisions

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EHS: Standard Fields for EHS API Structures
2	ERRORMODE	☐	ESEERRMODE	CHAR1	CHAR	1	0	Indicator: Error or warning in an API function
3	ERRORINFO	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
4	ERRORCLASS	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
5	ERRORPARAM	☐	CHAR30	CHAR30	CHAR	30	0	30 Characters
6	LOGLOCKMOD	☐	ESELGLCKMD	CHAR1	CHAR	1	0	Logical Lock Mode
7	EXTINFO	☐	ESEEXTINFO	CHAR10	CHAR	10	0	External Information
8	LINEMOD	☐	ESELINEMOD	CHAR1	CHAR	1	0	Processing status or mode of a record/step loop line
9	.INCLUDE	☐				0	0	Special Provisions
10	.INCLUDE	☐				0	0	EHS: Structure for key info of master data
11	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
12	RECN	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
13	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
14	.INCLUDE	☐				0	0	DG: Structure for General Administration Information
15	VALFR	☐	ESEVALFR	DATUM	DATS	8	0	Valid-From Date
16	VALTO	☐	ESEVALTO	DATUM	DATS	8	0	Valid-To Date
17	AENNR	☐	ESEAENNR	AENNR	CHAR	12	0	Change Number	AENR
18	DELFLG	☐	ADGE_DELFLG	ESDFLAG	CHAR	1	0	Deletion Indicator
19	PARKFLG	☐	ESEPARKFLG	ESDFLAG	CHAR	1	0	Data Record Is Inactive
20	CRDAT	☐	ESECRDAT	DATUM	DATS	8	0	Created On
21	CRNAM	☐	ESECRNAM	USNAM	CHAR	12	0	Created By
22	UPDDAT	☐	ESEUPDDAT	DATUM	DATS	8	0	Changed On
23	UPDNAM	☐	ESEUPDNAM	USNAM	CHAR	12	0	Last Changed By
24	SRSID	☐	ESESRSID	ESDSRSID	CHAR	10	0	Source of Data	TCG56
25	OWNID	☐	ESEVENDRID	AD_ADDRNUM	CHAR	10	0	Data Provider	*
26	RECNROOT	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
27	RECNMST	☐	ESERECN	ESDRECN	NUMC	20	0	Sequential Number of Data Record
28	SPEC_PACK_PROV	☐	CBDUE_SPEC_PACK_PROV	CBDUD_FIELD_WITH_PHRASE	CHAR	21	0	Phrase Key for Special Packing Provision
29	DAOR	☐	ADGE_DAOR	ADGD_DAOR	CHAR	1	0	Data Origin (Filling and Distribution)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RCBDUAPISP	AENNR	AENR	AENNR	REF	1	CN
2	RCBDUAPISP	MANDT	T000	MANDT
3	RCBDUAPISP	SRSID	TCG56	SRSID	REF	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	0207B0406C
