SAP ABAP Table QASRR (Results record for the sample)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QE (Package) QM results recording

Basic Data

Table Category	INTTAB	Structure

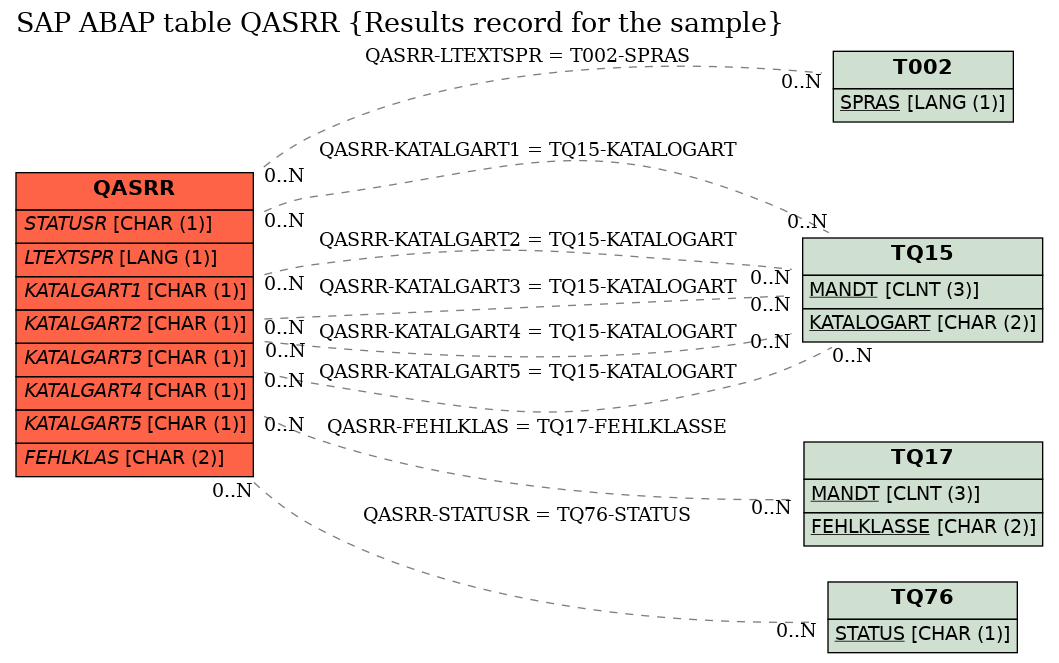

Structure	QASRR	Table Relationship Diagram
Short Description	Results record for the sample

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	UPSLR	☐	QUPSL	QUPSL	CHAR	1	0	Data Base Access
2	STATUSR	☐	QBEASTATUS	QSTATUS	CHAR	1	0	Results Record Status	TQ76
3	ATTRIBUT	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
4	ERSTELLER	☐	QERSTELLER	QAENDERER	CHAR	12	0	Name of User Who Created the Data Record
5	ERSTELLDAT	☐	QDATUMERST	DATUM	DATS	8	0	Date on Which the Data Record Was Created
6	AENDERER	☐	QAENDERER	QAENDERER	CHAR	12	0	Name of User who Most Recently Changed the Data Record
7	AENDERDAT	☐	QDATUMAEND	DATUM	DATS	8	0	Date on Which Data Record Was Changed
8	MBEWERTG	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
9	DBEWERTG	☐	QDBEWERTG	QEEBEWERTG	CHAR	1	0	Valuation of the Characteristic for Dynamic Modification
10	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
11	PRUEFDATUV	☐	QPRUEFDATV	DATUM	DATS	8	0	Inspection Start Date
12	PRUEFDATUB	☐	QPRUEFDATB	DATUM	DATS	8	0	End Date of the Inspection
13	PRUEFZEITV	☐	QPRUEFZTV	QZEIT	TIMS	6	0	Starting Time of the Inspection
14	PRUEFZEITB	☐	QPRUEFZTB	QZEIT	TIMS	6	0	End Time of the Inspection
15	PRUEFBEMKT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
16	PRLTEXTKZ	☐	QLTEXTKZ	QKZ	CHAR	1	0	Inspection Characteristic Long Text Exists
17	LTEXTSPR	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
18	ISTSTPUMF	☐	QISTSTPUMF	QANZAHL4	INT4	10	0	Number of Recorded Sample Units
19	ANZFEHLEH	☐	QANZFEHEH2	QANZAHL2	INT2	5	0	Number of Nonconforming Sample Units
20	ANTEILNI	☐	QNIANTEIL	QNOTINI	CHAR	1	0	Not Initialized for Fraction
21	ANTEIL	☐	QANTEIL	QSTATWERT	FLTP	16	16	Estimated Fraction of Nonconforming Sample Units
22	ANZFEHLER	☐	QANZFEHL2	QANZAHL2	INT2	5	0	Number of Defects Found
23	ANZWERTO	☐	QANZWERTO2	QANZAHL2	INT2	5	0	Number of Measured Values Above the Tolerance Range
24	ANZWERTU	☐	QANZWERTU2	QANZAHL2	INT2	5	0	Number of Measured Values Below the Tolerance Range
25	ANZWERTG	☐	QANZWERTG2	QANZAHL2	INT2	5	0	Number of Inspected Sample Units
26	MAXWERTNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
27	MEDIANNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
28	MINWERTNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
29	MITTELWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
30	VARIANZNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
31	MOMENT3NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
32	MOMENT4NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
33	ANTEILONI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
34	ANTEILUNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
35	MAXWERT	☐	QMAXWERT	QSTATWERT	FLTP	16	16	Maximum Value of the Valid Measured Values
36	MEDIANWERT	☐	QMEDIANWRT	QSTATWERT	FLTP	16	16	Median of Valid Measured Values
37	MINWERT	☐	QMINWERT	QSTATWERT	FLTP	16	16	Minimum Value of the Valid Measured Values
38	MITTELWERT	☐	QMITTELWRT	QSTATWERT	FLTP	16	16	Arithmetic Mean of Valid Measured Values
39	VARIANZ	☐	QVARIANZ	QSTATWERT	FLTP	16	16	Dispersion (Variance) of Valid Measured Values
40	MOMENT3	☐	QMOMENT3	QSTATWERT	FLTP	16	16	Third Central Moment of Valid Measured Values
41	MOMENT4	☐	QMOMENT4	QSTATWERT	FLTP	16	16	Fourth Central Moment of Valid Measured Values
42	ANTEILO	☐	QANTEILO	QSTATWERT	FLTP	16	16	Estimated Fraction Above the Tolerance Range
43	ANTEILU	☐	QANTEILU	QSTATWERT	FLTP	16	16	Estimated Fraction Below the Tolerance Range
44	KATALGART1	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
45	GRUPPE1	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
46	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	*
47	VERSION1	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
48	KATALGART2	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
49	GRUPPE2	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
50	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	*
51	VERSION2	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
52	KATALGART3	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
53	GRUPPE3	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
54	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	*
55	VERSION3	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
56	KATALGART4	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
57	GRUPPE4	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
58	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	*
59	VERSION4	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
60	KATALGART5	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
61	GRUPPE5	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
62	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	*
63	VERSION5	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
64	FEHLKLAS	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
65	STDABWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
66	STDABW	☐	QSTDAW	QSTATWERT	FLTP	16	16	Standard Deviation of Valid Measured Values
67	SPANNWEINI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
68	SPANNWEITE	☐	QSPANNWEI	QSTATWERT	FLTP	16	16	Range of Valid Measured Values
69	SENDEFLAG	☐	QSENDEFLAG	QSENDEFLAG	CHAR	1	0	Characteristic Result Confirmation from Control Station
70	MASCHINE	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information
71	POSITION	☐	QPRPOS	QPRPOS	NUMC	4	0	Test Position
72	KATERG	☐	QKATERG	QKZ	CHAR	1	0	Catalog Confirmations Available

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QASRR	FEHLKLAS	TQ17	FEHLKLASSE
2	QASRR	KATALGART1	TQ15	KATALOGART
3	QASRR	KATALGART2	TQ15	KATALOGART
4	QASRR	KATALGART3	TQ15	KATALOGART
5	QASRR	KATALGART4	TQ15	KATALOGART
6	QASRR	KATALGART5	TQ15	KATALOGART
7	QASRR	LTEXTSPR	T002	SPRAS
8	QASRR	STATUSR	TQ76	STATUS

History

Last changed by/on	SAP	20130529
SAP Release Created in
