SAP ABAP Table QAISR_O1 (Structure for Uploading Sample Results from QM Subsystem)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QEIF (Package) QM interfaces inspection processing

Basic Data

Table Category	INTTAB	Structure

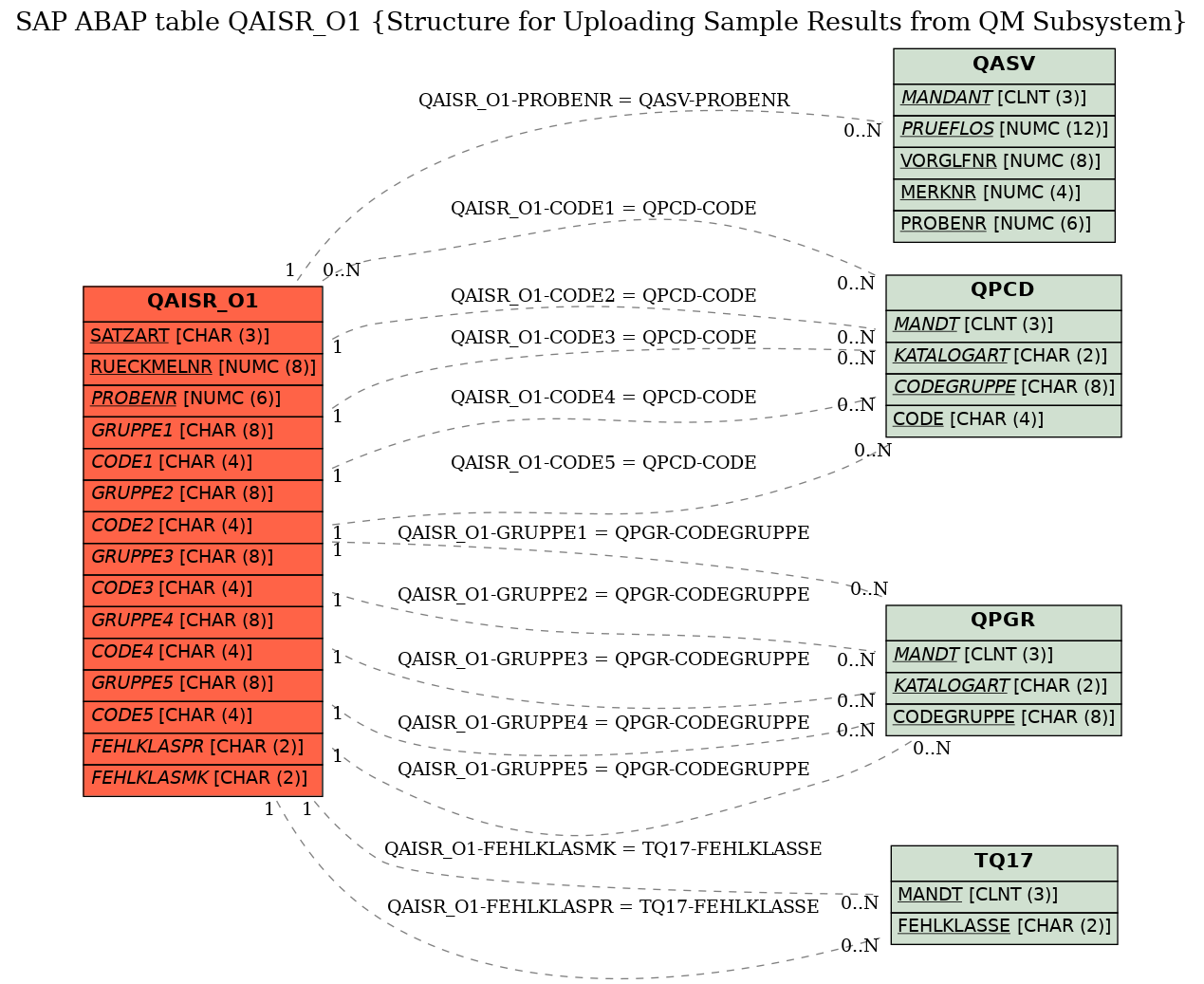

Structure	QAISR_O1	Table Relationship Diagram
Short Description	Structure for Uploading Sample Results from QM Subsystem

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SATZART	☑	QEIFART	QEIFART	CHAR	3	0	Record Types for QM Interface - Subsystems
2	RUECKMELNR	☑	QRUECKNR	QRUECKNR	NUMC	8	0	Confirmation Number for Inspection Characteristic
3	PROBENR	☑	QSTIPRONR	QPROBENR	NUMC	6	0	Number of the Partial Sample	QASV
4	KZLPROBE	☐	QEIFKZENDE	QKZ	CHAR	1	0	Last Original Value, Sample or Inspection Point
5	KZABSCHL	☐	QEIFABSCHL	QKZ	CHAR	1	0	Close Characteristic or Sample
6	KZBEWEEXT	☐	QEIFBEWE	QKZ	CHAR	1	0	Copy Valuation from External System
7	ATTRIBUT	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
8	GRUPPE1	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
9	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
10	GRUPPE2	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
11	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
12	GRUPPE3	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
13	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
14	GRUPPE4	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
15	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
16	GRUPPE5	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
17	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
18	ANZWERTG	☐	QEIFANZWRT	NUMC4	NUMC	4	0	No. of Valid Values for Sample Results Upload to QM subsys.
19	ANZFEHLEH	☐	QEIFAFHLEH	CHAR4	CHAR	4	0	Number of Nonconforming Units for QM Subsystem Interface
20	ANZFEHLER	☐	QEIFANZFHL	CHAR4	CHAR	4	0	Number of Defects for Sample Confirmation Using QM-IDI
21	ANZWERTO	☐	QEIFAWERTO	CHAR4	CHAR	4	0	Number of Values Above Tolerance Limit (Sample)
22	ANZWERTU	☐	QEIFAWERTU	CHAR4	CHAR	4	0	Number of Values Below the Tolerance Limit (Sample)
23	MITTELWERT	☐	QMITTEWRTC	QSTATWERTC	CHAR	16	0	Arithmetic Mean of Valid Measured Values
24	VARIANZ	☐	QVARIANZC	QSTATWERTC	CHAR	16	0	Dispersion (Variance) of Valid Measured Values
25	MAXWERT	☐	QMAXWERTC	QSTATWERTC	CHAR	16	0	Maximum Value of the Valid Measured Values
26	MEDIANWERT	☐	QMEDIAWRTC	QSTATWERTC	CHAR	16	0	Median of Valid Measured Values
27	MINWERT	☐	QMINWERTC	QSTATWERTC	CHAR	16	0	Minimum Value of the Valid Measured Values
28	PRUEFDATUV	☐	QEIFPRDATV	DATUM	DATS	8	0	Inspection Start Date (QM Subsystem Interface)
29	PRUEFDATUB	☐	QEIFPRDATB	DATUM	DATS	8	0	Inspection End Date (QM Subsystem Interface)
30	PRUEFZEITV	☐	QEIFPRZTV	QZEIT	TIMS	6	0	Inspection Start Time (QM Subsystem Interface)
31	PRUEFZEITB	☐	QEIFPRZTB	QZEIT	TIMS	6	0	Inspection End Time (QM Subsystem Interface)
32	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
33	MASCHINE	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information
34	POSITION	☐	QEIFPOSMAS	CHAR4	CHAR	4	0	Position on the Machine (QM Interface - Subsystem)
35	PRUEFBEMKT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
36	MBEWERTGPR	☐	QEIFMPRBEW	QEEBEWERTG	CHAR	1	0	Valuation of Sample for Usage Decision
37	FEHLKLASPR	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
38	MBEWERTGMK	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
39	FEHLKLASMK	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAISR_O1	CODE1	QPCD	CODE
2	QAISR_O1	CODE2	QPCD	CODE	KEY	1	CN
3	QAISR_O1	CODE3	QPCD	CODE	KEY	1	CN
4	QAISR_O1	CODE4	QPCD	CODE	KEY	1	CN
5	QAISR_O1	CODE5	QPCD	CODE	KEY	1	CN
6	QAISR_O1	FEHLKLASMK	TQ17	FEHLKLASSE	KEY	1	CN
7	QAISR_O1	FEHLKLASPR	TQ17	FEHLKLASSE	KEY	1	CN
8	QAISR_O1	GRUPPE1	QPGR	CODEGRUPPE	KEY	1	CN
9	QAISR_O1	GRUPPE2	QPGR	CODEGRUPPE	KEY	1	CN
10	QAISR_O1	GRUPPE3	QPGR	CODEGRUPPE	KEY	1	CN
11	QAISR_O1	GRUPPE4	QPGR	CODEGRUPPE	KEY	1	CN
12	QAISR_O1	GRUPPE5	QPGR	CODEGRUPPE	KEY	1	CN
13	QAISR_O1	PROBENR	QASV	PROBENR	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
