SAP ABAP Table QAISE_O1 (Structure for Uploading Single Values from QM Subsystem)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QEIF (Package) QM interfaces inspection processing

Basic Data

Table Category	INTTAB	Structure

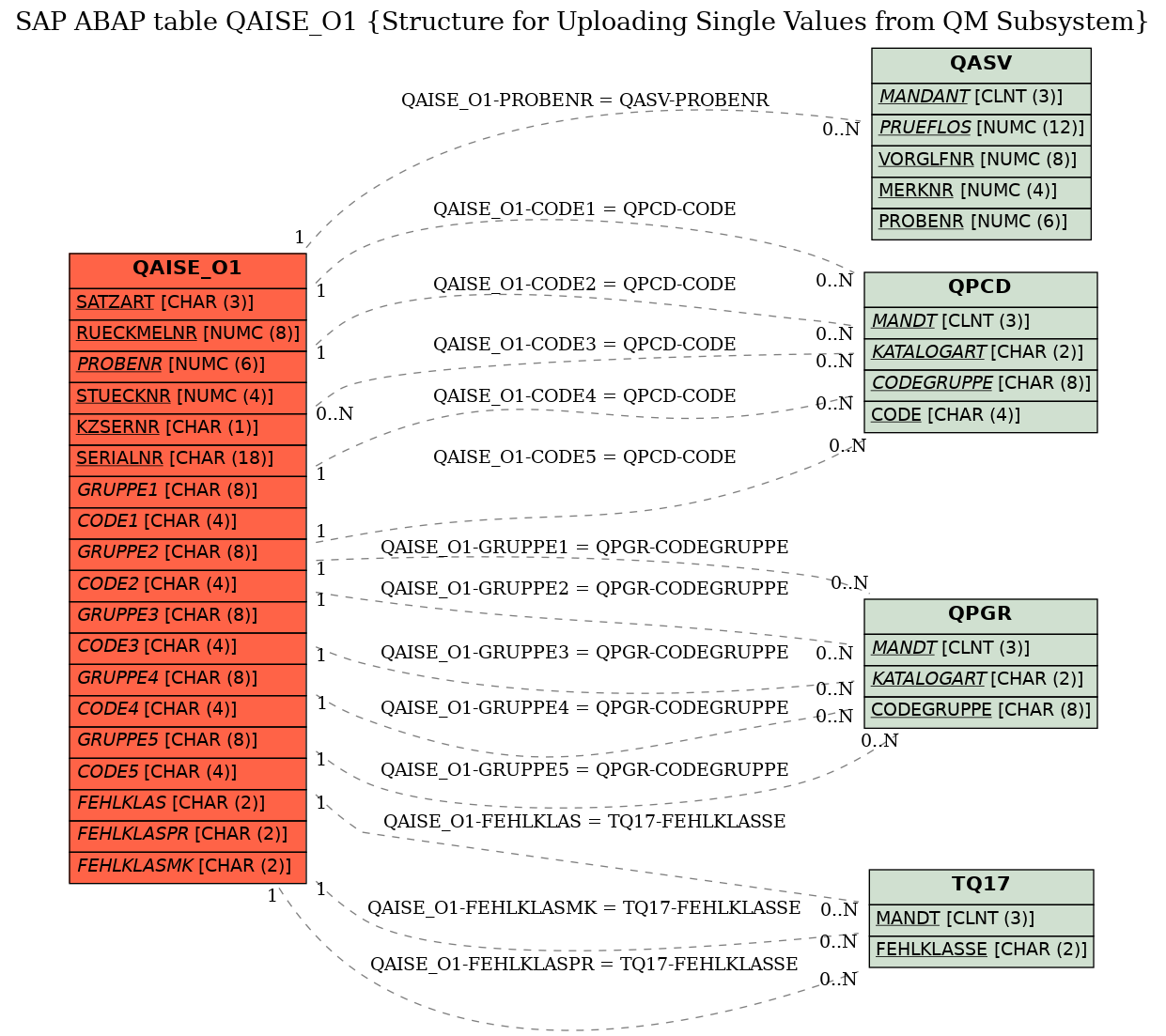

Structure	QAISE_O1	Table Relationship Diagram
Short Description	Structure for Uploading Single Values from QM Subsystem

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SATZART	☑	QEIFART	QEIFART	CHAR	3	0	Record Types for QM Interface - Subsystems
2	RUECKMELNR	☑	QRUECKNR	QRUECKNR	NUMC	8	0	Confirmation Number for Inspection Characteristic
3	PROBENR	☑	QSTIPRONR	QPROBENR	NUMC	6	0	Number of the Partial Sample	QASV
4	STUECKNR	☑	QSTUECKNR	QZAEHL	NUMC	4	0	Counter for Inspection Unit Number
5	KZSERNR	☑	QEIFSERNR	QKZ	CHAR	1	0	Serial Number To Be Recorded in QM Subsystem
6	SERIALNR	☑	QSERIALNR	QSERIALNR	CHAR	18	0	Single-Unit Number for the Unit to Be Inspected
7	KZLWERT	☐	QEIFKZENDE	QKZ	CHAR	1	0	Last Original Value, Sample or Inspection Point
8	KZLPROBE	☐	QEIFKZENDE	QKZ	CHAR	1	0	Last Original Value, Sample or Inspection Point
9	KZABSCHL	☐	QEIFABSCHL	QKZ	CHAR	1	0	Close Characteristic or Sample
10	KZBEWEEXT	☐	QEIFBEWE	QKZ	CHAR	1	0	Copy Valuation from External System
11	ATTRIBUT	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
12	MESSWERT	☐	QMESSWERTC	QSOLLWERTC	CHAR	16	0	Measured Value for a Sample Unit
13	GRUPPE1	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
14	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
15	GRUPPE2	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
16	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
17	GRUPPE3	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
18	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
19	GRUPPE4	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
20	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
21	GRUPPE5	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
22	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
23	BEWERTUNG	☐	QEIFBEWURW	QEEBEWERTG	CHAR	1	0	Valuation of Original Value - Upload to QM Subsystem
24	FEHLKLAS	☐	QFKLASERG	QFEHLKLAS	CHAR	2	0	Defect Class	TQ17
25	ANZFEHLER	☐	QEIFAFHL2	CHAR2	CHAR	2	0	Number of Defects for Confirming Indiv. Units via QM-IDI
26	PRUEFDATUV	☐	QEIFPRDATV	DATUM	DATS	8	0	Inspection Start Date (QM Subsystem Interface)
27	PRUEFZEITV	☐	QEIFPRZTV	QZEIT	TIMS	6	0	Inspection Start Time (QM Subsystem Interface)
28	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
29	MASCHINE	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information
30	POSITION	☐	QEIFPOSMAS	CHAR4	CHAR	4	0	Position on the Machine (QM Interface - Subsystem)
31	PRUEFBEMKT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
32	MBEWERTGPR	☐	QEIFMPRBEW	QEEBEWERTG	CHAR	1	0	Valuation of Sample for Usage Decision
33	FEHLKLASPR	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
34	MBEWERTGMK	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
35	FEHLKLASMK	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAISE_O1	CODE1	QPCD	CODE	KEY	1	CN
2	QAISE_O1	CODE2	QPCD	CODE	KEY	1	CN
3	QAISE_O1	CODE3	QPCD	CODE
4	QAISE_O1	CODE4	QPCD	CODE	KEY	1	CN
5	QAISE_O1	CODE5	QPCD	CODE	KEY	1	CN
6	QAISE_O1	FEHLKLAS	TQ17	FEHLKLASSE	KEY	1	CN
7	QAISE_O1	FEHLKLASMK	TQ17	FEHLKLASSE	KEY	1	CN
8	QAISE_O1	FEHLKLASPR	TQ17	FEHLKLASSE	KEY	1	CN
9	QAISE_O1	GRUPPE1	QPGR	CODEGRUPPE	KEY	1	CN
10	QAISE_O1	GRUPPE2	QPGR	CODEGRUPPE	KEY	1	CN
11	QAISE_O1	GRUPPE3	QPGR	CODEGRUPPE	KEY	1	CN
12	QAISE_O1	GRUPPE4	QPGR	CODEGRUPPE	KEY	1	CN
13	QAISE_O1	GRUPPE5	QPGR	CODEGRUPPE	KEY	1	CN
14	QAISE_O1	PROBENR	QASV	PROBENR	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
