SAP ABAP Table POC_COFT (Process Instructions for Control Recipe (Enhanced Structure))

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PP-PI-PMA-PMC (Application Component) Browser-Based PI Sheet / Cockpit
     ⤷ CMX_POC (Package) Manufacturing Execution: Browser-Based PI Sheet

Basic Data

Table Category	INTTAB	Structure

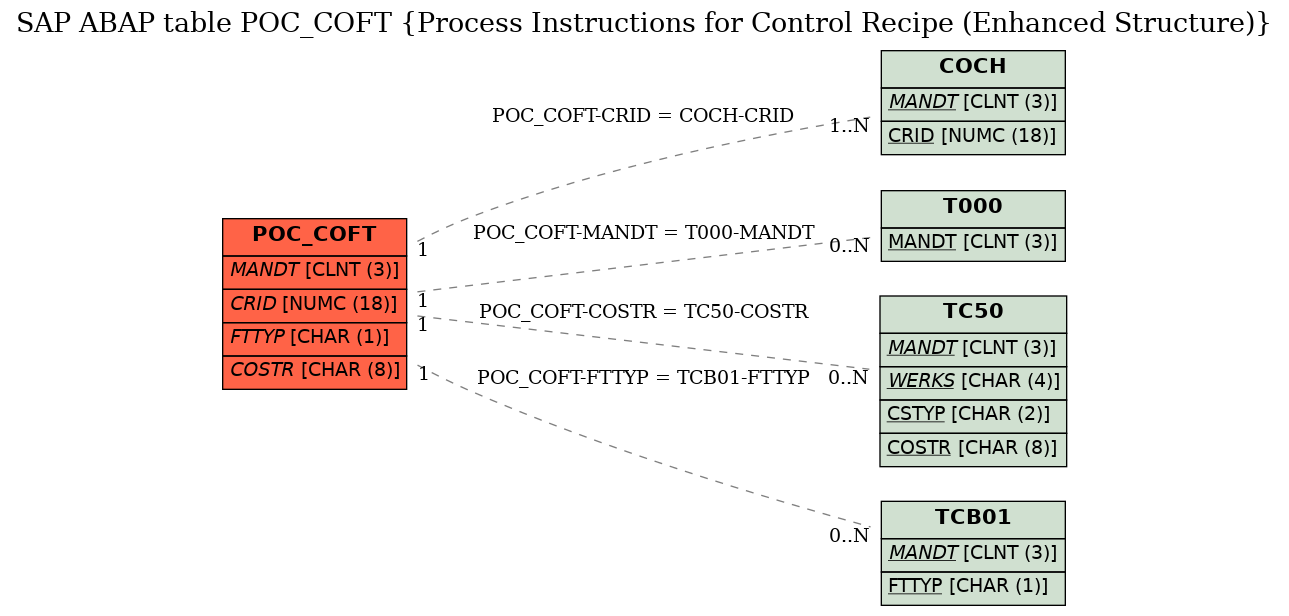

Structure	POC_COFT	Table Relationship Diagram
Short Description	Process Instructions for Control Recipe (Enhanced Structure)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Process Management: Process Instructions in Control Recipe
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	CRID	☐	CO_CRID	CO_CRID	NUMC	18	0	Control recipe number	COCH
4	FTNO	☐	FTNO	FTNO	NUMC	8	0	Sequence number of process instruction in recipe	*
5	FTTYP	☐	CO_FTTYP	FTTYP	CHAR	1	0	Type of process instruction	TCB01
6	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
7	FTRNR	☐	R_FTNR	VORNR	CHAR	4	0	Line Number of Process Instruction
8	COSTR	☐	CO_VORGA	CO_COSTR	CHAR	8	0	Process instruction category	TC50
9	FTRNR_SUB	☐	R_FTNR	VORNR	CHAR	4	0	Line Number of Process Instruction

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	POC_COFT	COSTR	TC50	COSTR	REF	1	CN
2	POC_COFT	CRID	COCH	CRID	KEY	1	N
3	POC_COFT	FTTYP	TCB01	FTTYP	KEY	1	CN
4	POC_COFT	MANDT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20050411
SAP Release Created in
