SAP ABAP Table MTK_CLASS_DATA_INTERFACE (Mat.-rtg assign. (int. format) for Direct Input in the EWB)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ CP (Package) R/3 Application development: PP Task Lists

Basic Data

Table Category	INTTAB	Structure
Structure	MTK_CLASS_DATA_INTERFACE	Table Relationship Diagram
Short Description	Mat.-rtg assign. (int. format) for Direct Input in the EWB

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
2	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
3	PLNTY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	*
4	PLNNR	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
5	PLNAL	☐	PLNAL	ALTNR	CHAR	2	0	Group Counter
6	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
7	DATUV	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
8	AENNR_AUS	☐	CPCS_ECN_TO	AENNR	CHAR	12	0	To change number	*
9	DATUB	☐	DATUB	DATUM	DATS	8	0	Valid-to date
10	LOEKZ	☐	LKENZ	XFELD	CHAR	1	0	Deletion Indicator
11	LIFNR	☐	ELIFN	LIFNR	CHAR	10	0	Vendor's account number	*
12	KUNR	☐	EKUNN	KUNNR	CHAR	10	0	Account number of customer	*
13	SUCHFELD	☐	QSUCHFELD	CHAR20	CHAR	20	0	Search Field for Customer-Specific Task List Selection
14	VBELN	☐	VBELN_VA	VBELN	CHAR	10	0	Sales Document	*
15	POSNR	☐	POSNR_VA	POSNR	NUMC	6	0	Sales Document Item	*
16	PSPNR	☐	CS_PSPNR	PS_POSNR	NUMC	8	0	Work breakdown structure element (WBS element)	*
17	MS_OBJECT	☐	Q_MS_OBJECT	Q_MS_OBJECT	CHAR	30	0	Object for Multiple Specifications	TQMS2
18	MS_OBJTYPE	☐	Q_MS_OBJTYPE	Q_MS_OBJTYPE	CHAR	2	0	Type of Object for Multiple Specifications	TQMS1

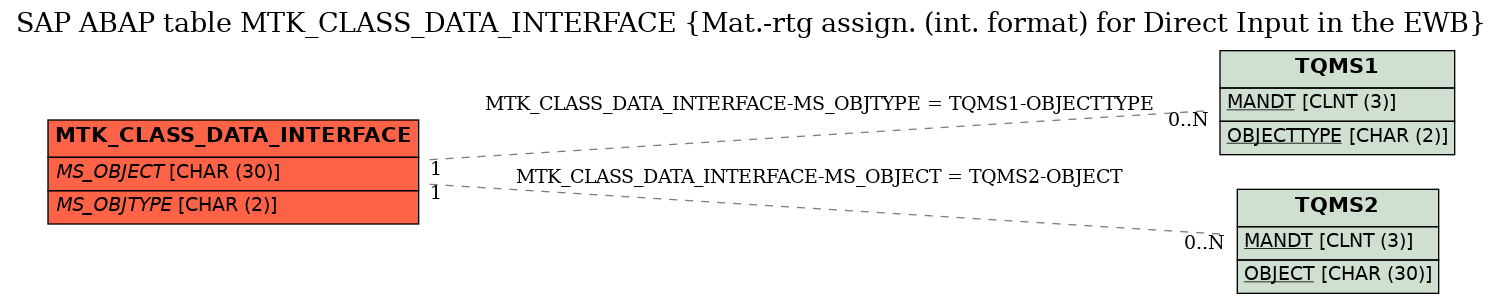

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	MTK_CLASS_DATA_INTERFACE	MS_OBJECT	TQMS2	OBJECT	KEY	1	CN
2	MTK_CLASS_DATA_INTERFACE	MS_OBJTYPE	TQMS1	OBJECTTYPE	KEY	1	CN

History

Last changed by/on	SAP	20050411
SAP Release Created in
