SAP ABAP Table MCQMMAB (Communication Structure: Notification Activities)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ QM-QC-IS (Application Component) Information System
     ⤷ QG04 (Package) QM/BW Connection

Basic Data

Table Category	INTTAB	Structure

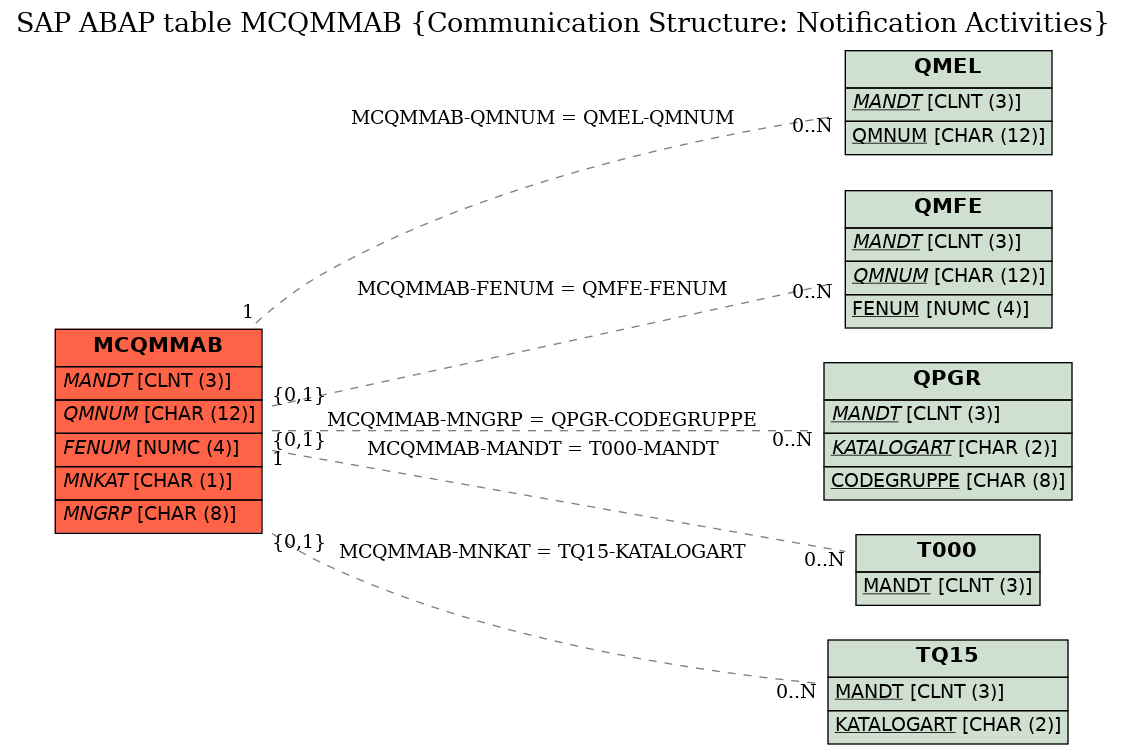

Structure	MCQMMAB	Table Relationship Diagram
Short Description	Communication Structure: Notification Activities

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SUPKZ	☐	SUPKZ	SUPKZ	CHAR	1	0	Statistics update indicator (post in/post out)
2	.INCLUDE	☐				0	0	Notification Activity
3	.INCLUDE	☐				0	0	Quality notification - activities
4	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
5	QMNUM	☐	QMNUM	QMNUM	CHAR	12	0	Message Number	QMEL
6	MANUM	☐	AKNUM	NUM4	NUMC	4	0	Consecutive Number of Activity
7	FENUM	☐	FELFD	FELFD	NUMC	4	0	Item Number in Item Record	QMFE
8	URNUM	☐	URNUM	NUM4	NUMC	4	0	Sequential Number for Cause
9	MNKAT	☐	MFKAT	QKATART	CHAR	1	0	Catalog Type - Actions	TQ15
10	MNGRP	☐	MFGRP	QCODEGRP	CHAR	8	0	Code group - Activities	QPGR
11	MNCOD	☐	MFCOD	QCODE	CHAR	4	0	Action Code	*
12	MNVER	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
13	MATXT	☐	MFTEXT	TEXT40	CHAR	40	0	Action Text
14	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
15	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
16	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
17	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
18	MAKLS	☐	MAKLS	KLASSE	CHAR	18	0	Task Class
19	KLAKZ	☐	KLAKZ	CHAR1	CHAR	1	0	Indicator: Classification exists
20	PSTER	☐	PSTERMA	DATUM	DATS	8	0	Start Date
21	PETER	☐	PETERMA	DATUM	DATS	8	0	End Date
22	INDTX	☐	INDLTX	CHAR1	CHAR	1	0	Object Long Text Available
23	KZMLA	☐	KZMLA	CHAR1	CHAR	1	0	Primary language indicator for text segment
24	MNGFA	☐	MNGFA	NUMC3	NUMC	3	0	Quantity factor for actions
25	PSTUR	☐	PSTURMA	UZEIT	TIMS	6	0	Start Time of Activity
26	PETUR	☐	PETURMA	UZEIT	TIMS	6	0	End Time of Activity
27	ERZEIT	☐	ERZEIT	UHRZT	TIMS	6	0	Time, at Which Record Was Added
28	AEZEIT	☐	AEZEIT	UHRZT	TIMS	6	0	Time of Change
29	KZLOESCH	☐	KZLOESCH	CHAR1	CHAR	1	0	Delete Data Record
30	QMANUM	☐	QMANUM	NUMC04	NUMC	4	0	Sort Number for Activity
31	AUTKZ	☐	QAUTKZ	QKZ	CHAR	1	0	Data Record Created with Function 'Create with Copy Model'
32	KZACTIONBOX	☐	QNKZACTIONBOX	QKZ	CHAR	1	0	Created Using Action Box
33	FUNKTION	☐	QNFUNKTION	CHAR4	CHAR	4	0	Keys for Function in Action Box
34	ZHLAKTION	☐	QZHLAKTION	INT4	INT4	10	0	No. of activities

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	MCQMMAB	FENUM	QMFE	FENUM	REF	C	CN
2	MCQMMAB	MANDT	T000	MANDT	KEY	1	CN
3	MCQMMAB	MNGRP	QPGR	CODEGRUPPE	REF	C	CN
4	MCQMMAB	MNKAT	TQ15	KATALOGART	REF	C	CN
5	MCQMMAB	QMNUM	QMEL	QMNUM	KEY	1	CN

History

Last changed by/on	SAP	20050409
SAP Release Created in
