SAP ABAP Table IBAP_IBIN (IB: Installed Base Component)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-INB (Application Component) Installed Bases
     ⤷ IB_CRM_ENV (Package) IBase: IBase CRM Environment

Basic Data

Table Category	INTTAB	Structure

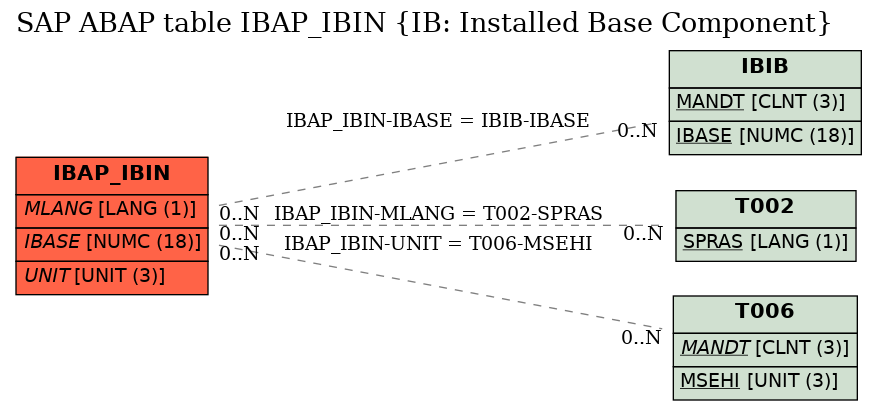

Structure	IBAP_IBIN	Table Relationship Diagram
Short Description	IB: Installed Base Component

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IB: IBase Components - Condition
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	IN_RECNO	☐	IB_RECNO	SYSUUID_22	CHAR	22	0	IB: Unique record number
4	.INCLUDE	☐				0	0	IB: Component (Include structure for database table)
5	.INCLUDE	☐				0	0	IB: Component (Include sturucture)
6	.INCLUDE	☐				0	0	IB: Components (Include structure validity+components)
7	.INCLUDE	☐				0	0	IB: Validity of the data record
8	VALFR	☐	IB_VALFR	BCOS_TSTMP	DEC	15	0	IBase: Valid From
9	VALTO	☐	IB_VALTO	BCOS_TSTMP	DEC	15	0	IBase: Valid To
10	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
11	DELFLAG	☐	OAX	X	CHAR	1	0	Yes/No (X/ )
12	INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
13	.INCLUDE	☐				0	0	IB: Component (Include structure general data)
14	MLANG	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
15	SORTF	☐	IB_SORTF	CHAR10	CHAR	10	0	Sort string
16	OBJNR	☐	IB_INSTANCEOBJECT	IB_INSTANCEOBJECT	CHAR	22	0	IB: Component reservation
17	IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase	IBIB
18	AMOUNT	☐	MENGV13	MENGV13	QUAN	13	3	Quantity field, length 13, with +/- sign
19	UNIT	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
20	DATUV	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
21	TECHS	☐	CC_TECHV	CC_TECHS	CHAR	12	0	Technical status from
22	IN_OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
23	IN_GUID	☐	GUID		RAW	16	0	Globally Unique Identifier
24	OBJECTTYP	☐	IB_OBJTYP_INSTANCE	IB_OBJTYP_INSTANCE	CHAR	4	0	IB: Object Type of Component Master Record
25	VOID	☐	IB_VOID	XFELD	CHAR	1	0	iBase: Void Komponente
26	.INCLUDE	☐				0	0	IB: Component (Include structure for configuration)
27	CSTATUS	☐	ATINSTATUS	CHAR2	CHAR	2	0	Status of component(Instance)from configuration perspective
28	CUCOCNT	☐	CUCOZHL	CUCOZHL	NUMC	4	0	Internal counter
29	EXPERT	☐	EXPRT	CHAR1	CHAR	1	0	User as expert
30	MAT_VARIANT	☐	MATNR	MATNR	CHAR	18	0	Material Number
31	ATAUT	☐	ATATAUT	ATATAUT	CHAR	1	0	Justification
32	KLART	☐	KLASSENART	KLASSENART	CHAR	3	0	Class Type	*
33	.INCLUDE	☐				0	0	IB: Administrative part of data record
34	CRNAM	☐	BU_CRUSR	USNAM	CHAR	12	0	User who created the object
35	CRTIM	☐	ICRTS	BCOS_TSTMP	DEC	15	0	Time (UTC) at which the object was created
36	UPNAM	☐	BU_CHUSR	USNAM	CHAR	12	0	Last user to change object
37	UPTIM	☐	IUPTS	BCOS_TSTMP	DEC	15	0	Time (UTC) at which the object was last changed
38	UPDIND	☐	IB_UPDIND	CHAR1	CHAR	1	0	IB: Update Ind. I=Insert, U=Update, D=Delete,' ' =No Action

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	IBAP_IBIN	IBASE	IBIB	IBASE
2	IBAP_IBIN	MLANG	T002	SPRAS
3	IBAP_IBIN	UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
