SAP ABAP Table IBA_IBIN_MESS (Messaging structure for Ibase Component)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MSE (Application Component) Mobile Service
⤷ CDB_IBASE (Package) Installed Base : CDB Objects for Installed Base
⤷ CRM-MSE (Application Component) Mobile Service
⤷ CDB_IBASE (Package) Installed Base : CDB Objects for Installed Base
Basic Data
Table Category | INTTAB | Structure |

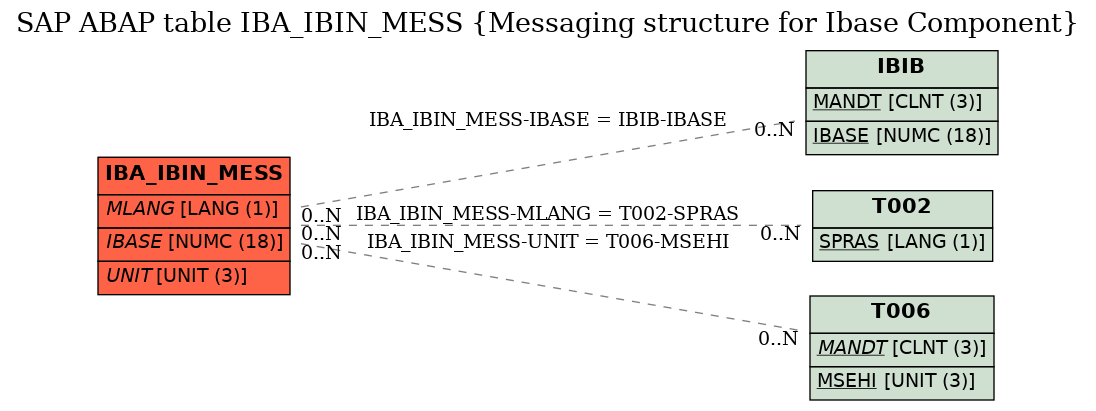

Structure | IBA_IBIN_MESS | Table Relationship Diagram |
Short Description | Messaging structure for Ibase Component |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | Common structure for all segment structures | |||||
2 | TR_STATUS | CHAR | 4 | 0 | |||||
3 | BEF_IMG | INT1 | 3 | 0 | |||||
4 | TASK | INT1 | 3 | 0 | |||||
5 | SENDBITS | RAW | 32 | 0 | |||||
6 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
7 | IN_RECNO | IB_RECNO | SYSUUID_22 | CHAR | 22 | 0 | IB: Unique record number | ||
8 | IB_GUID | IB_RECNO | SYSUUID_22 | CHAR | 22 | 0 | IB: Unique record number | ||
9 | .INCLUDE | 0 | 0 | IB: Component (Include structure for database table) | |||||
10 | .INCLUDE | 0 | 0 | IB: Component (Include sturucture) | |||||
11 | .INCLUDE | 0 | 0 | IB: Components (Include structure validity+components) | |||||
12 | .INCLUDE | 0 | 0 | IB: Validity of the data record | |||||
13 | VALFR | IB_VALFR | BCOS_TSTMP | DEC | 15 | 0 | IBase: Valid From | ||
14 | VALTO | IB_VALTO | BCOS_TSTMP | DEC | 15 | 0 | IBase: Valid To | ||
15 | AENNR | AENNR | AENNR | CHAR | 12 | 0 | Change Number | * | |
16 | DELFLAG | OAX | X | CHAR | 1 | 0 | Yes/No (X/ ) | ||
17 | INSTANCE | IB_INSTANCE | IB_INSTANCE | NUMC | 18 | 0 | IB: Component (instance) | ||
18 | .INCLUDE | 0 | 0 | IB: Component (Include structure general data) | |||||
19 | MLANG | SPRAS | SPRAS | LANG | 1 | 0 | Language Key | T002 | |
20 | SORTF | IB_SORTF | CHAR10 | CHAR | 10 | 0 | Sort string | ||
21 | OBJNR | IB_INSTANCEOBJECT | IB_INSTANCEOBJECT | CHAR | 22 | 0 | IB: Component reservation | ||
22 | IBASE | IB_IBASE | IB_INSTANCE | NUMC | 18 | 0 | IBase: Number of the Installed Base/IBase | IBIB | |
23 | AMOUNT | MENGV13 | MENGV13 | QUAN | 13 | 3 | Quantity field, length 13, with +/- sign | ||
24 | UNIT | MEINS | MEINS | UNIT | 3 | 0 | Base Unit of Measure | T006 | |
25 | DATUV | DATUV | DATUM | DATS | 8 | 0 | Valid-From Date | ||
26 | TECHS | CC_TECHV | CC_TECHS | CHAR | 12 | 0 | Technical status from | ||
27 | IN_OBJNR | J_OBJNR | J_OBJNR | CHAR | 22 | 0 | Object number | * | |
28 | IN_GUID | GUID | RAW | 16 | 0 | Globally Unique Identifier | |||
29 | OBJECTTYP | IB_OBJTYP_INSTANCE | IB_OBJTYP_INSTANCE | CHAR | 4 | 0 | IB: Object Type of Component Master Record | ||
30 | VOID | IB_VOID | XFELD | CHAR | 1 | 0 | iBase: Void Komponente | ||
31 | .INCLUDE | 0 | 0 | IB: Component (Include structure for configuration) | |||||
32 | CSTATUS | ATINSTATUS | CHAR2 | CHAR | 2 | 0 | Status of component(Instance)from configuration perspective | ||
33 | CUCOCNT | CUCOZHL | CUCOZHL | NUMC | 4 | 0 | Internal counter | ||
34 | EXPERT | EXPRT | CHAR1 | CHAR | 1 | 0 | User as expert | ||
35 | MAT_VARIANT | MATNR | MATNR | CHAR | 18 | 0 | Material Number | ||
36 | ATAUT | ATATAUT | ATATAUT | CHAR | 1 | 0 | Justification | ||
37 | KLART | KLASSENART | KLASSENART | CHAR | 3 | 0 | Class Type | * | |
38 | .INCLUDE | 0 | 0 | IB: Administrative part of data record | |||||
39 | CRNAM | BU_CRUSR | USNAM | CHAR | 12 | 0 | User who created the object | ||
40 | CRTIM | ICRTS | BCOS_TSTMP | DEC | 15 | 0 | Time (UTC) at which the object was created | ||
41 | UPNAM | BU_CHUSR | USNAM | CHAR | 12 | 0 | Last user to change object | ||
42 | UPTIM | IUPTS | BCOS_TSTMP | DEC | 15 | 0 | Time (UTC) at which the object was last changed | ||
43 | PRODUCT_ID | COMT_PRODUCT_ID | COM_PRODUCT_ID | CHAR | 40 | 0 | Product ID |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | IBA_IBIN_MESS | IBASE | IBIB | IBASE | |||
2 | IBA_IBIN_MESS | MLANG | T002 | SPRAS | |||
3 | IBA_IBIN_MESS | UNIT | T006 | MSEHI |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 30A |
