SAP ABAP Table IBA_IBIB_MESS (Messaging structure for Ibase Header)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MSE (Application Component) Mobile Service
     ⤷ CDB_IBASE (Package) Installed Base : CDB Objects for Installed Base

Basic Data

Table Category	INTTAB	Structure
Structure	IBA_IBIB_MESS	Table Relationship Diagram
Short Description	Messaging structure for Ibase Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
7	IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
8	.INCLUDE	☐				0	0	IB: Installed Base (Include Structure)
9	.INCLUDE	☐				0	0	IB: Installed base (Include structure for general data)
10	CRNAM	☐	BU_CRUSR	USNAM	CHAR	12	0	User who created the object
11	CRTIM	☐	ICRTS	BCOS_TSTMP	DEC	15	0	Time (UTC) at which the object was created
12	UPNAM	☐	IB_IBIB_UPNAM	USNAM	CHAR	12	0	Last User to Change Object
13	UPTIM	☐	IB_IBIB_UPTIM	BCOS_TSTMP	DEC	15	0	Time of Last Change (in UTC)
14	IBTYP	☐	IB_IBTYP	IB_IBTYP	CHAR	2	0	IB: Installed Base Category	T371A
15	.INCLUDE	☐				0	0	IB: Part 2 Customizing IBase (copied to PM)
16	COMPIND	☐	IB_COMPIND	XFELD	CHAR	1	0	IB: Component Store Indicator (Not Currently Used)
17	CONFIND	☐	IB_CONFIND	XFELD	CHAR	1	0	IB: Installed Base Used for Variant Configuration
18	FILID	☐	IB_FILID	CHAR2	CHAR	2	0	IB: Identification for a Group of Physical Files	T371B
19	VALTYP	☐	IB_VALTYP	IB_VALTYP	NUMC	1	0	IB: Validity type for the installed base
20	INTST	☐	IB_INTSTATE	IB_INTSTATE	NUMC	1	0	IB: Internal Status of the IBase
21	STTYP	☐	IB_STTYP	IB_STTYP	CHAR	2	0	IBase: Status Type	T371ST
22	IB_GUID	☐	IB_RECNO	SYSUUID_22	CHAR	22	0	IB: Unique record number
23	IB_GUID_16	☐	GUID_16	SYSUUID	RAW	16	0	GUID in 'RAW' format
24	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
25	EXTID	☐	IB_EXTID	CHAR30	CHAR	30	0	IB: External Name/ID of Installed Base
26	MLANG	☐	IB_MLANG	SPRAS	LANG	1	0	Primary language for object texts	T002
27	AUTHG	☐	IB_AUTHG	IB_AUTHG	CHAR	4	0	IBase: Authorization Group for IBase
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0	IB: Installed base (Include structure for configuration)
30	KBID	☐	ATKBID	NUMC6	NUMC	6	0	Configuration: Temporary Data Element for SCEKB-KBID
31	CLANG	☐	CLANG	SPRAS	LANG	1	0	Configuration: Characteristic Valuation Language	*
32	CSTATUS	☐	ATIBSTATUS	CHAR2	CHAR	2	0	Installed base (IBase) status from configuration perspective

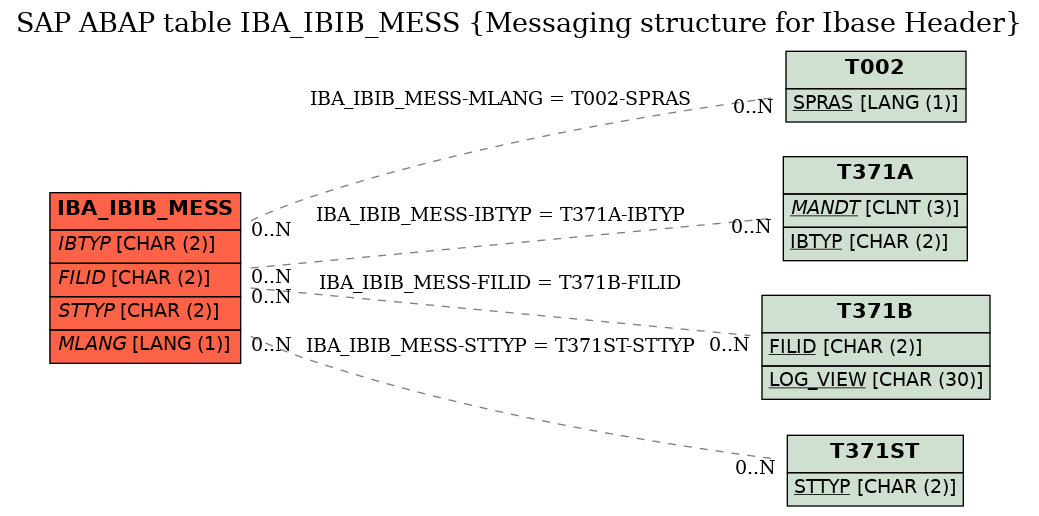

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	IBA_IBIB_MESS	FILID	T371B	FILID
2	IBA_IBIB_MESS	IBTYP	T371A	IBTYP
3	IBA_IBIB_MESS	MLANG	T002	SPRAS
4	IBA_IBIB_MESS	STTYP	T371ST	STTYP

History

Last changed by/on	SAP	20110908
SAP Release Created in	30A
