SAP ABAP Table FRMLS_API_EXPL_COMP (RMS-FRM: Components of Composition Lists (Explosion))

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration

Basic Data

Table Category	INTTAB	Structure

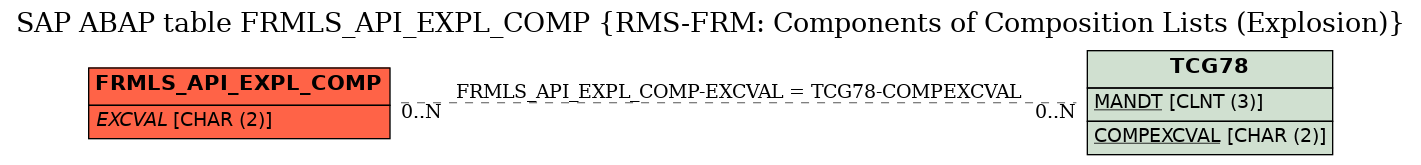

Structure	FRMLS_API_EXPL_COMP	Table Relationship Diagram
Short Description	RMS-FRM: Components of Composition Lists (Explosion)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	RMS-FRM: Standard Fields f. Structural Part of API Structure
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	RECN	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
4	RECNMST	☐	FRMLE_RECN_MASTER	FRMLD_GUID	CHAR	32	0	Higher-Level Object Identifier
5	RECNROOT	☐	FRMLE_RECNROOT	FRMLD_GUID	CHAR	32	0	Formula Header Object
6	AENNR	☐	FRMLE_AENNR	AENNR	CHAR	12	0	Change Number	*
7	VALFR	☐	FRMLE_VALFR	DATUM	DATS	8	0	Valid-From Date
8	VALTO	☐	FRMLE_VALTO	DATUM	DATS	8	0	Valid-To Date
9	LINEMODE	☐	FRMLE_LINEMODE	CHAR1	CHAR	1	0	Processing Status/Mode of a Record/Step Loop Line
10	LOCKMODE	☐	FRMLE_LOCKMODE	CHAR1	CHAR	1	0	Lock Mode of a Data Record
11	STATUS	☐	FRMLE_STATUSINFO	CHAR1	CHAR	1	0	Status Information
12	STATUSCODE	☐	FRMLE_STATUSCODE	CHAR3	CHAR	3	0	RMS-FRM: Status Code
13	POSNR	☐	FRMLE_POSNR	FRMLD_POSNR	NUMC	4	0	Number of a Material or Substance Item
14	ROLE	☐	FRMLE_ROLE	ESDCOMPCAT	CHAR	10	0	Component Type (Material, Substance, or Stream Item)	*
15	SUBRECN	☐	FRMLE_SUBRECN	ESDRECN	NUMC	20	0	Substance Key
16	MATNR	☐	FRMLE_MATNR	MATNR	CHAR	18	0	Material Number of an Item	*
17	STREAM_ID	☐	FRMLE_STREAM_GUID	FRMLD_GUID	CHAR	32	0	Unique Data Record Number (GUID) for Stream
18	.INCLUDE	☐				0	0	RMS-FRM: Value Range of a Component
19	COMPTGT	☐	FRMLE_COMPTGT	EHSBD_QUAN6_6	QUAN	12	6	Quantity of a Material or Substance Item
20	COMPTGT_ERR_FLG	☐	FRMLE_ERR_FLG	FLAG	CHAR	1	0	Error When Converting Units
21	OPLOW	☐	FRMLE_OPLOW	FRMLD_OPLOW	CHAR	2	0	Operator for Lower Limit
22	COMPLOW	☐	FRMLE_COMPLOW	FRMLD_QUAN6_6	QUAN	12	6	Value of Lower Limit of Item Quantity
23	OPUP	☐	FRMLE_OPUP	FRMLD_OPUP	CHAR	2	0	Operator for Upper Limit
24	COMPUPP	☐	FRMLE_COMPUPP	FRMLD_QUAN6_6	QUAN	12	6	Value of Upper Limit of Item Quantity
25	UNIT	☐	FRMLE_COMPUNIT	MEINS	UNIT	3	0	Unit of Measure of a Material or Substance Item	*
26	EXCVAL	☐	FRMLE_EXCVAL	ESDCOMPEXCVAL	CHAR	2	0	Exception Value	TCG78
27	ADDVAL	☐	FRMLE_ADDVAL	CHAR030	CHAR	30	0	Freely Available Field of Type Character String w.30 Characs
28	COMPTGT_FLT	☐	FRMLE_FLT	FLTP	FLTP	16	16	Floating-Point Value
29	COMPLOW_FLT	☐	FRMLE_COMPLOW_FLT	FLTP	FLTP	16	16	Lower Limit Value of Item Quantity (Floating Point Value)
30	COMPUPP_FLT	☐	FRMLE_COMPUPP_FLT	FLTP	FLTP	16	16	Upper Limit Value of Item Quantity (Floating Point Value)
31	OVR_FACTOR	☐	FRMLE_OVR_FACTOR	FRMLD_OVR	NUMC	3	0	Overrun Factor
32	CMP_REAC	☐	FRMLE_CMP_REAC	FRMLD_CMP_REAC	CHAR	1	0	Composition - Reaction
33	RECNC	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
34	AUTH_STOP	☐	FRMLE_AUTH_STOP	FRMLD_AUTH_STOP	CHAR	1	0	Stop Explosion Due to Lack of Authorization

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FRMLS_API_EXPL_COMP	EXCVAL	TCG78	COMPEXCVAL

History

Last changed by/on	SAP	20130529
SAP Release Created in	200
