SAP ABAP Table EDMAP (Documentation for R/3 <-> IDOC type assignments)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-MID-ALE (Application Component) ALE Integration Technology
⤷ SED (Package) IDoc Interface (Processing, Administration, Definition)
⤷ BC-MID-ALE (Application Component) ALE Integration Technology
⤷ SED (Package) IDoc Interface (Processing, Administration, Definition)
Basic Data
Table Category | TRANSP | Transparent table |

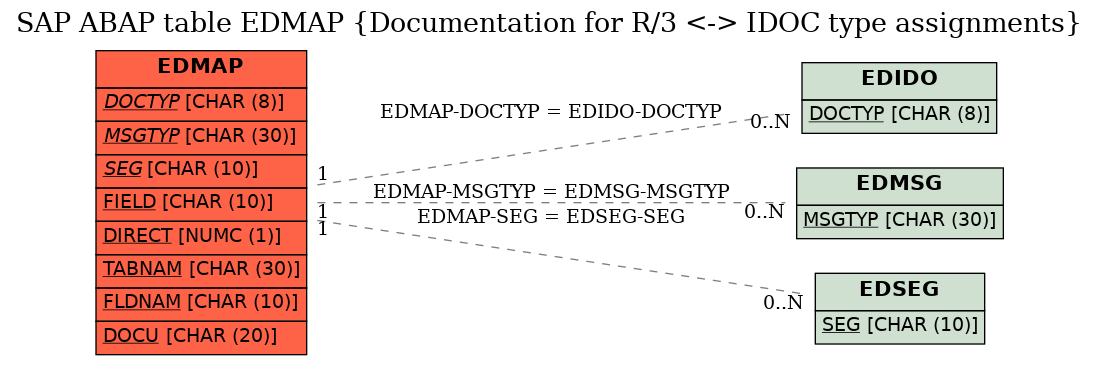

Transparent table | EDMAP | Table Relationship Diagram |
Short Description | Documentation for R/3 <-> IDOC type assignments |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | G | Customizing table, protected against SAP Upd., only INS all. |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | DOCTYP | DOCTYP | EDI_DOCTYP | CHAR | 8 | 0 | IDoc type (for example, ORDERS01) | EDIDO | |
2 | MSGTYP | MSGTYP | EDI_MESTYP | CHAR | 30 | 0 | SAP message type | EDMSG | |
3 | SEG | SEG | EDI_SEGTYP | CHAR | 10 | 0 | Segment name in IDoc types | EDSEG | |
4 | FIELD | ID_FIELD | CHAR10 | CHAR | 10 | 0 | Field name in IDoc table | ||
5 | DIRECT | DIRECTION | NUM1 | NUMC | 1 | 0 | Direction (1=outbound, 2=inbound) | ||
6 | TABNAM | R3_TABNAM | OBJNAME | CHAR | 30 | 0 | SAP Table to Which IDoc Field Is Assigned | ||
7 | FLDNAM | R3_FIELD | CHAR10 | CHAR | 10 | 0 | SAP Field to Which IDoc Field Is Assigned | ||
8 | DOCU | DOCUNAME | CHAR20 | CHAR | 20 | 0 | Standard text describing assignment | ||
9 | MUSTFL | MUSTFLD | XFELD | CHAR | 1 | 0 | Flag: This field is mandatory | ||
10 | CODEFL | CODEFL | XFELD | CHAR | 1 | 0 | Flag: Code list is used for translation |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | EDMAP | DOCTYP | EDIDO | DOCTYP | KEY | 1 | CN |
2 | EDMAP | MSGTYP | EDMSG | MSGTYP | KEY | 1 | CN |
3 | EDMAP | SEG | EDSEG | SEG | KEY | 1 | CN |
History
Last changed by/on | SAP | 19980729 |
SAP Release Created in |
