SAP ABAP Table DRFD_APPL_FILT_H (Data Replication Filter Root Node)

Hierarchy

☛ SAP_BS_FND (Software Component) SAP Business Suite Foundation
   ⤷ CA-MDG-DRF (Application Component) Data Replication Framework
     ⤷ DRF_DDIC (Package) Data Replication Framework: Data Dictionary & Customizing

Basic Data

Table Category	TRANSP	Transparent table

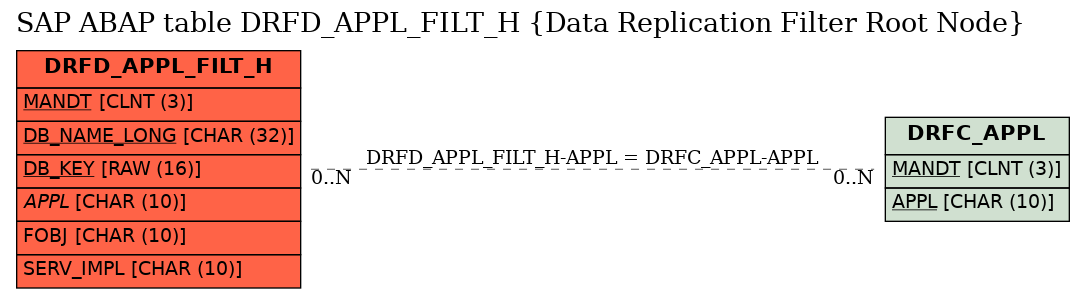

Transparent table	DRFD_APPL_FILT_H	Table Relationship Diagram
Short Description	Data Replication Filter Root Node

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	DB_NAME_LONG	☑	CHAR32	CHAR32	CHAR	32	0	Character field, length 32
3	DB_KEY	☑	/BOBF/CONF_KEY	/BOBF/CONF_KEY	RAW	16	0	NodeID
4	NODE_CAT_KEY	☐	/BOBF/CONF_KEY	/BOBF/CONF_KEY	RAW	16	0	NodeID
5	.INCLUDE	☐				0	0	Filter Structure for the root node
6	ID	☐	DRF_FILTER_CRIT_SET_ID		CHAR	25	0	ID of Filter Criteria Set
7	APPL	☐	DRF_APPL	DRF_APPL	CHAR	10	0	Replication Model	DRFC_APPL
8	FOBJ	☐	DRF_FILTER_OBJECT	DRF_FILTER_OBJECT	CHAR	10	0	Filter Object	*
9	SERV_IMPL	☐	DRF_OUTB_IMPL	DRF_SERV_IMPL	CHAR	10	0	Outbound Implementation	*
10	.INCLUDE	☐				0	0	Adminitrativ data of th data Replication Framework (Filter)
11	CREATION_DATE	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
12	CREATED_BY	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*
13	CHANGE_DATE	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
14	CHANGED_BY	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DRFD_APPL_FILT_H	APPL	DRFC_APPL	APPL

History

Last changed by/on	SAP	20130604
SAP Release Created in	702
