SAP ABAP Table CRMT_SERVICE_REQUEST_IAC1_WRK (CRM:S ervice Request Workarea Simple Transaction (Rel.1.2))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ISE (Application Component) Internet Service
     ⤷ CRM_SERVICE_REQUEST_IAC1 (Package) CRM: Service Request Transaction for WEB (1), W/O DB Update

Basic Data

Table Category	INTTAB	Structure

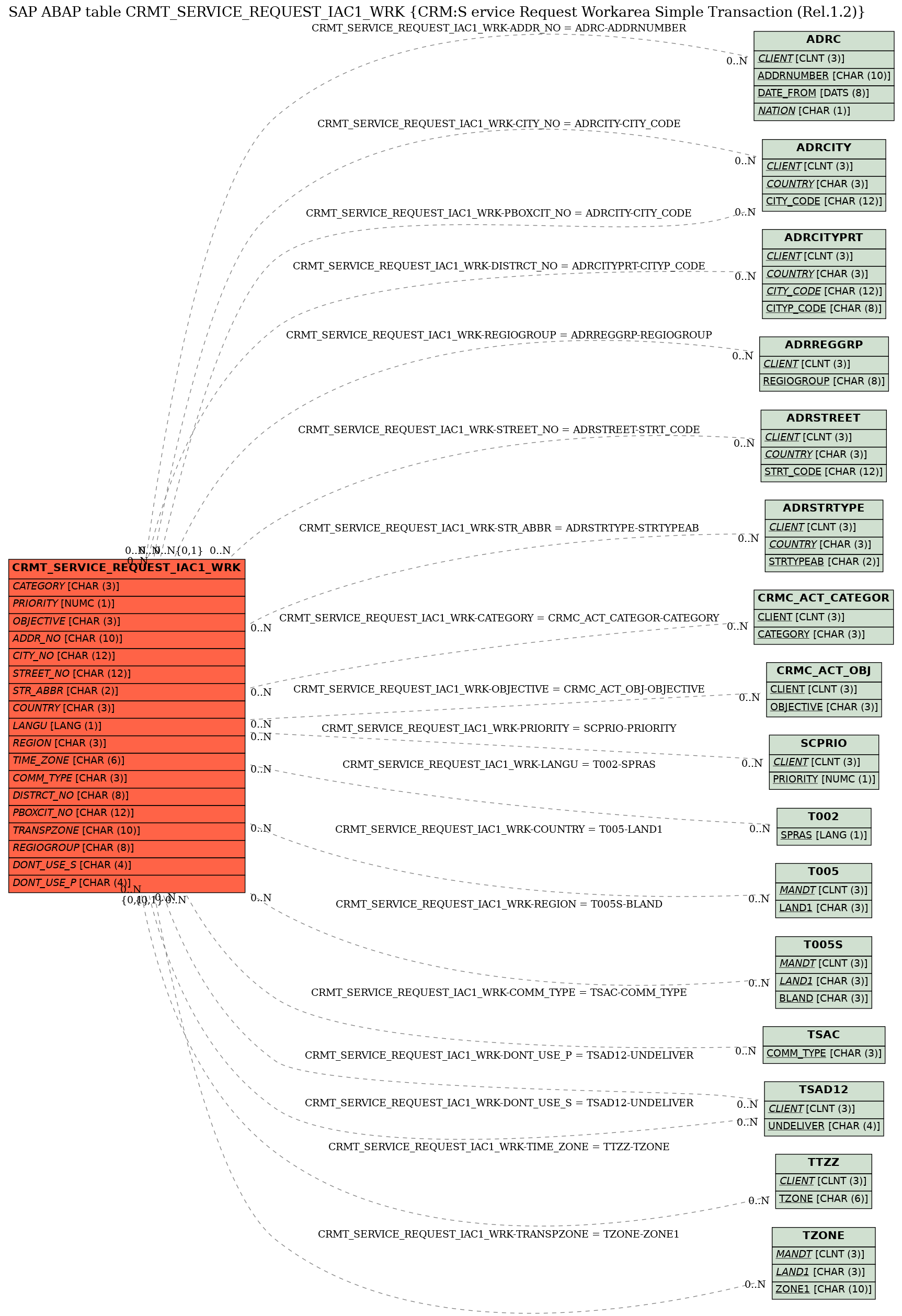

Structure	CRMT_SERVICE_REQUEST_IAC1_WRK	Table Relationship Diagram
Short Description	CRM:S ervice Request Workarea Simple Transaction (Rel.1.2)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
2	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
3	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
4	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
5	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
6	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
7	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
8	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
9	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
10	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
11	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
12	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
13	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
14	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
15	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
16	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
17	.INCLUDE	☐				0	0	EEW Extension
18	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
19	.INCLUDE	☐				0	0
20	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
21	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
22	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
23	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
24	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
25	.INCLUDE	☐				0	0	Structure of an Activity - External Fields
26	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
27	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
28	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
29	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
30	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
31	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
32	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
33	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
34	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
35	.INCLUDE	☐				0	0	EEW Include
36	ACTIVITY_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
37	.INCLUDE	☐				0	0
38	PARTNER_GUID	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
39	.INCLUDE	☐				0	0	BAPI Reference Structure for Addresses (Org./Company)
40	ADDR_NO	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	ADRC
41	FORMOFADDR	☐	AD_TITLE_T	TEXT20	CHAR	20	0	Form of address text
42	NAME	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
43	NAME_2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
44	NAME_3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
45	NAME_4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
46	C_O_NAME	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
47	CITY	☐	AD_CITY1	TEXT40	CHAR	40	0	City
48	DISTRICT	☐	AD_CITY2	TEXT40	CHAR	40	0	District
49	CITY_NO	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
50	POSTL_COD1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
51	POSTL_COD2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
52	POSTL_COD3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
53	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
54	PO_BOX_CIT	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
55	DELIV_DIS	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
56	STREET	☐	AD_STR_OLD	TEXT40	CHAR	40	0	Street
57	STREET_NO	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
58	STR_ABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
59	HOUSE_NO	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
60	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
61	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
62	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
63	BUILDING	☐	AD_BLD_OLD	TEXT10	CHAR	10	0	old: building (no. or abbreviation)
64	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
65	ROOM_NO	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
66	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
67	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
68	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
69	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
70	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
71	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
72	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
73	ADR_NOTES	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
74	COMM_TYPE	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
75	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
76	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
77	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
78	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
79	STREET_LNG	☐	AD_STREET	TEXT60	CHAR	60	0	Street
80	DISTRCT_NO	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
81	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
82	PBOXCIT_NO	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
83	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
84	HOUSE_NO2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
85	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
86	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
87	TITLE	☐	AD_TITLETX	TEXT30	CHAR	30	0	Title text
88	COUNTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
89	LANGU_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
90	BUILD_LONG	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
91	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
92	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
93	HOMECITYNO	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	*
94	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
95	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
96	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
97	PO_W_O_NO	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
98	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	*
99	POBOX_CTRY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	*
100	PO_CTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
101	HOMEPAGE	☐	AD_URISCR	AD_URISCR	CHAR	132	0	URI, e.g. Homepage or ftp Address
102	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
103	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
104	HOUSE_NO3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
105	LANGU_CR	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	*
106	LANGUCRISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
107	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
108	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	*
109	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
110	URI_TYPE	☐	AD_URITYPE	AD_URITYPE	CHAR	3	0	URI type flag
111	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	*
112	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
113	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	*
114	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
115	PROCESS_TYPE_WWW	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SERVICE_REQUEST_IAC1_WRK	ADDR_NO	ADRC	ADDRNUMBER
2	CRMT_SERVICE_REQUEST_IAC1_WRK	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
3	CRMT_SERVICE_REQUEST_IAC1_WRK	CITY_NO	ADRCITY	CITY_CODE
4	CRMT_SERVICE_REQUEST_IAC1_WRK	COMM_TYPE	TSAC	COMM_TYPE
5	CRMT_SERVICE_REQUEST_IAC1_WRK	COUNTRY	T005	LAND1
6	CRMT_SERVICE_REQUEST_IAC1_WRK	DISTRCT_NO	ADRCITYPRT	CITYP_CODE
7	CRMT_SERVICE_REQUEST_IAC1_WRK	DONT_USE_P	TSAD12	UNDELIVER	REF	C	CN
8	CRMT_SERVICE_REQUEST_IAC1_WRK	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
9	CRMT_SERVICE_REQUEST_IAC1_WRK	LANGU	T002	SPRAS
10	CRMT_SERVICE_REQUEST_IAC1_WRK	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE
11	CRMT_SERVICE_REQUEST_IAC1_WRK	PBOXCIT_NO	ADRCITY	CITY_CODE
12	CRMT_SERVICE_REQUEST_IAC1_WRK	PRIORITY	SCPRIO	PRIORITY
13	CRMT_SERVICE_REQUEST_IAC1_WRK	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
14	CRMT_SERVICE_REQUEST_IAC1_WRK	REGION	T005S	BLAND
15	CRMT_SERVICE_REQUEST_IAC1_WRK	STREET_NO	ADRSTREET	STRT_CODE
16	CRMT_SERVICE_REQUEST_IAC1_WRK	STR_ABBR	ADRSTRTYPE	STRTYPEAB
17	CRMT_SERVICE_REQUEST_IAC1_WRK	TIME_ZONE	TTZZ	TZONE
18	CRMT_SERVICE_REQUEST_IAC1_WRK	TRANSPZONE	TZONE	ZONE1

History

Last changed by/on	SAP	20141013
SAP Release Created in
