SAP ABAP Table CRMT_OUTPUT_ACTIVITY_H_COM (Output Structure CRM Activity Header Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-ACI (Application Component) Actions
     ⤷ CRM_OUTPUT (Package) CRM ORDER: Output Control

Basic Data

Table Category	INTTAB	Structure

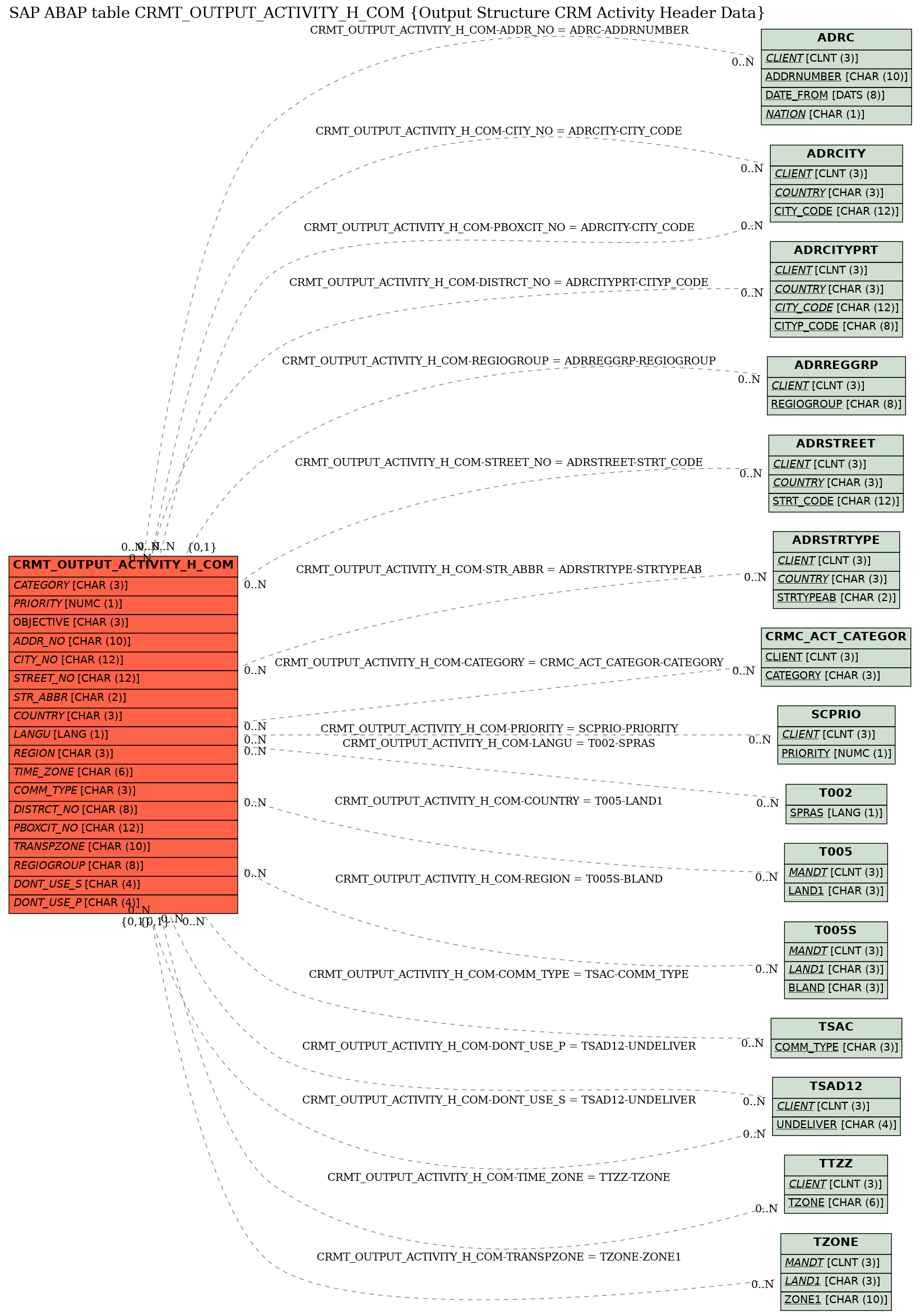

Structure	CRMT_OUTPUT_ACTIVITY_H_COM	Table Relationship Diagram
Short Description	Output Structure CRM Activity Header Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Activity: Structure of Work Area and Buffers
2	.INCLUDE	☐				0	0	Activity
3	.INCLUDE	☐				0	0	One Order: Key Fields
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	.INCLUDE	☐				0	0	Structure of an Activity - External Fields
7	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
8	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
9	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	*
10	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
11	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
12	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
13	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
14	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
15	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
16	.INCLUDE	☐				0	0	EEW Include
17	ACTIVITY_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
18	.INCLUDE	☐				0	0
19	.INCLUDE	☐				0	0	Structure of an Activity - Internal Fields
20	CALENDAR	☐	CRMT_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Include Activity in Calendar
21	TASK	☐	CRMT_TASK	CRM_BOOLEAN	CHAR	1	0	Indicator: Activity is a Task
22	CLASS	☐	CRMT_ACTIVITY_CLASS	CRM_ACTIVITY_CLASS	CHAR	1	0	Activity Class
23	.INCLUDE	☐				0	0	Internal Dynamic Fields
24	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
25	.INCLUDE	☐				0	0	External Dynamic Fields
26	.INCLUDE	☐				0	0	BAPI Reference Structure for Addresses (Org./Company)
27	ADDR_NO	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	ADRC
28	FORMOFADDR	☐	AD_TITLE_T	TEXT20	CHAR	20	0	Form of address text
29	NAME	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
30	NAME_2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
31	NAME_3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
32	NAME_4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
33	C_O_NAME	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
34	CITY	☐	AD_CITY1	TEXT40	CHAR	40	0	City
35	DISTRICT	☐	AD_CITY2	TEXT40	CHAR	40	0	District
36	CITY_NO	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
37	POSTL_COD1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
38	POSTL_COD2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
39	POSTL_COD3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
40	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
41	PO_BOX_CIT	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
42	DELIV_DIS	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
43	STREET	☐	AD_STR_OLD	TEXT40	CHAR	40	0	Street
44	STREET_NO	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
45	STR_ABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
46	HOUSE_NO	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
47	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
48	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
49	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
50	BUILDING	☐	AD_BLD_OLD	TEXT10	CHAR	10	0	old: building (no. or abbreviation)
51	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
52	ROOM_NO	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
53	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
54	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
55	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
56	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
57	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
58	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
59	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
60	ADR_NOTES	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
61	COMM_TYPE	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
62	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
63	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
64	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
65	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
66	STREET_LNG	☐	AD_STREET	TEXT60	CHAR	60	0	Street
67	DISTRCT_NO	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
68	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
69	PBOXCIT_NO	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
70	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
71	HOUSE_NO2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
72	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
73	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
74	TITLE	☐	AD_TITLETX	TEXT30	CHAR	30	0	Title text
75	COUNTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
76	LANGU_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
77	BUILD_LONG	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
78	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
79	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
80	HOMECITYNO	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	*
81	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
82	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
83	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
84	PO_W_O_NO	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
85	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	*
86	POBOX_CTRY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	*
87	PO_CTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
88	HOMEPAGE	☐	AD_URISCR	AD_URISCR	CHAR	132	0	URI, e.g. Homepage or ftp Address
89	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
90	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
91	HOUSE_NO3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
92	LANGU_CR	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	*
93	LANGUCRISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
94	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
95	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	*
96	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
97	URI_TYPE	☐	AD_URITYPE	AD_URITYPE	CHAR	3	0	URI type flag
98	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	*
99	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
100	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	*
101	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
102	PRIORITY_TXT	☐	SC_TXT	TEXT40	CHAR	40	0	Description
103	CATEGORY_TXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
104	OBJECTIVE_TXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
105	DIRECTION_TXT	☐	TEXT	FL_TEXT	CHAR	29	0	Text field

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_OUTPUT_ACTIVITY_H_COM	ADDR_NO	ADRC	ADDRNUMBER
2	CRMT_OUTPUT_ACTIVITY_H_COM	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
3	CRMT_OUTPUT_ACTIVITY_H_COM	CITY_NO	ADRCITY	CITY_CODE
4	CRMT_OUTPUT_ACTIVITY_H_COM	COMM_TYPE	TSAC	COMM_TYPE
5	CRMT_OUTPUT_ACTIVITY_H_COM	COUNTRY	T005	LAND1
6	CRMT_OUTPUT_ACTIVITY_H_COM	DISTRCT_NO	ADRCITYPRT	CITYP_CODE
7	CRMT_OUTPUT_ACTIVITY_H_COM	DONT_USE_P	TSAD12	UNDELIVER	REF	C	CN
8	CRMT_OUTPUT_ACTIVITY_H_COM	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
9	CRMT_OUTPUT_ACTIVITY_H_COM	LANGU	T002	SPRAS
10	CRMT_OUTPUT_ACTIVITY_H_COM	PBOXCIT_NO	ADRCITY	CITY_CODE
11	CRMT_OUTPUT_ACTIVITY_H_COM	PRIORITY	SCPRIO	PRIORITY
12	CRMT_OUTPUT_ACTIVITY_H_COM	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
13	CRMT_OUTPUT_ACTIVITY_H_COM	REGION	T005S	BLAND
14	CRMT_OUTPUT_ACTIVITY_H_COM	STREET_NO	ADRSTREET	STRT_CODE
15	CRMT_OUTPUT_ACTIVITY_H_COM	STR_ABBR	ADRSTRTYPE	STRTYPEAB
16	CRMT_OUTPUT_ACTIVITY_H_COM	TIME_ZONE	TTZZ	TZONE
17	CRMT_OUTPUT_ACTIVITY_H_COM	TRANSPZONE	TZONE	ZONE1

History

Last changed by/on	SAP	20141013
SAP Release Created in
