SAP ABAP Table CRMT_ORDERADM_H_DB_WRK (Structure of Database Buffer for the Admin Header)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_ORDERADM_H (Package) CRM Sales Order: General Header Processing

Basic Data

Table Category	INTTAB	Structure

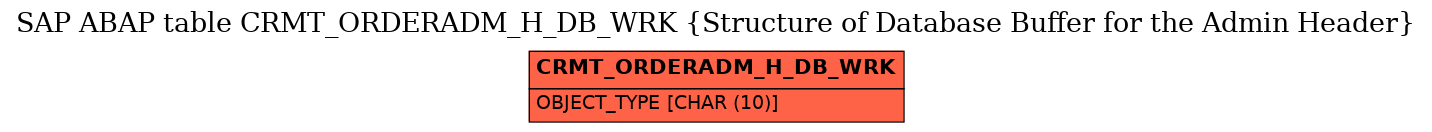

Structure	CRMT_ORDERADM_H_DB_WRK	Table Relationship Diagram
Short Description	Structure of Database Buffer for the Admin Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Business Transaction
2	.INCLUDE	☐				0	0	One Order: Key Fields
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
6	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
7	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
8	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
9	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
10	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
11	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
12	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
13	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
14	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
15	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
16	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
17	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
18	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
19	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
20	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
21	.INCLUDE	☐				0	0	EEW Extension
22	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
23	.INCLUDE	☐				0	0
24	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
25	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
26	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
27	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
28	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
29	.INCLUDE	☐				0	0	General Header Data - Structure of System Fields
30	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY_DB	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Trans. Cat.	*
31	ARCHIVING_FLAG	☐	CRMT_ARCHIVING_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator Whether the Business Transaction Can Be Archived
32	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
33	OBJECT_ID_OK	☐	CRMT_OBJECT_ID_OK	CRM_BOOLEAN	CHAR	1	0	Indicator Whether Business Transaction Number is Correct
34	VERIFY_DATE	☐	CRMT_VERIFY_DATE	BCOS_TSTMP	DEC	15	0	Time Period of Last Archiving Attempt
35	CRM_CHANGED_AT	☐	CRMT_ONLINE_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change in CRM Online
36	POSTPROCESS_AT	☐	CRMT_SUBMIT_FOR_POSTPROCESS_AT	BCOS_TSTMP	DEC	15	0	Time at Which Transaction Is Saved for Postprocessing
37	.INCLUDE	☐				0	0	Admin Header: Dynamic Fields for Database Buffer
38	NOREC_FLAG	☐	CRMT_NOREC	CRM_BOOLEAN	CHAR	1	0	Entry does not Exist in Database

History

Last changed by/on	SAP	20140802
SAP Release Created in
