SAP ABAP Table CRMT_ORDER_ALV (CRM: Structure for Application Workplace - Orders)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

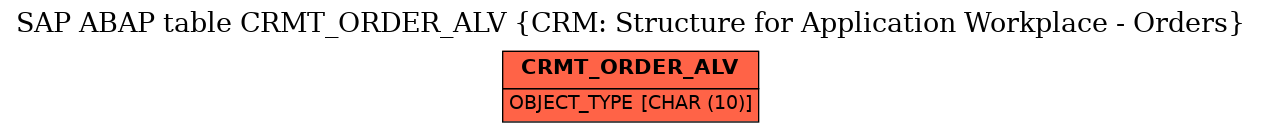

Structure	CRMT_ORDER_ALV	Table Relationship Diagram
Short Description	CRM: Structure for Application Workplace - Orders

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
2	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
3	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
4	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
5	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
6	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
7	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
8	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
9	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
10	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
11	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
12	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
13	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
14	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
15	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
16	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
17	.INCLUDE	☐				0	0	EEW Extension
18	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
19	.INCLUDE	☐				0	0
20	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
21	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
22	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
23	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
24	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
25	.INCLUDE	☐				0	0	General Header Data - Structure of System Fields
26	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY_DB	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Trans. Cat.	*
27	ARCHIVING_FLAG	☐	CRMT_ARCHIVING_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator Whether the Business Transaction Can Be Archived
28	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
29	OBJECT_ID_OK	☐	CRMT_OBJECT_ID_OK	CRM_BOOLEAN	CHAR	1	0	Indicator Whether Business Transaction Number is Correct
30	VERIFY_DATE	☐	CRMT_VERIFY_DATE	BCOS_TSTMP	DEC	15	0	Time Period of Last Archiving Attempt
31	CRM_CHANGED_AT	☐	CRMT_ONLINE_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change in CRM Online
32	.INCLUDE	☐				0	0	One Order: Key Fields
33	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
34	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
35	CREATE_DATE	☐	CRMT_RPRTNG_CREATED_AT	CRM_RPRTNG_DATE	DATS	8	0	CRM Reporting: 'Created on' Date
36	FCT_DESCRIPTION	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
37	FCT_SHORT_DESC	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
38	MAIN_BP_1	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
39	MAIN_BP_1_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
40	MAIN_BP_1_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
41	MAIN_BP_1_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
42	MAIN_BP_1_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
43	MAIN_BP_1_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
44	MAIN_BP_2	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
45	MAIN_BP_2_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
46	MAIN_BP_2_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
47	MAIN_BP_2_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
48	MAIN_BP_2_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
49	MAIN_BP_2_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
50	STAT	☐	J_STATUS	J_STATUS	CHAR	5	0	Object status
51	STATUS	☐	CRMT_REPORT_STATUS_L	CHAR100	CHAR	100	0	Longform Status
52	PO_NUMBER_SOLD	☐	CRMT_PO_NUMBER_SOLD	TEXT35	CHAR	35	0	Sold-To Party's External Reference Number
53	PO_NUMBER_UC	☐	CRMT_PO_NUMBER_UC	CHAR35	CHAR	35	0	Sold-to Party's External Reference No. (in Capital Letters)
54	NET_VALUE	☐	CRMT_NET_VALUE_CUM	WERTV8	CURR	15	2	Total Net Value of Document in Document Currency
55	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
56	HEADER	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

History

Last changed by/on	SAP	20140802
SAP Release Created in
