SAP ABAP Table CRMT_CIC_ACT_BO (Activity and business object)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CIC (Application Component) Interaction Center WinClient
     ⤷ CRM_CIC_COMPONENTS (Package) Interaction Center components

Basic Data

Table Category	INTTAB	Structure

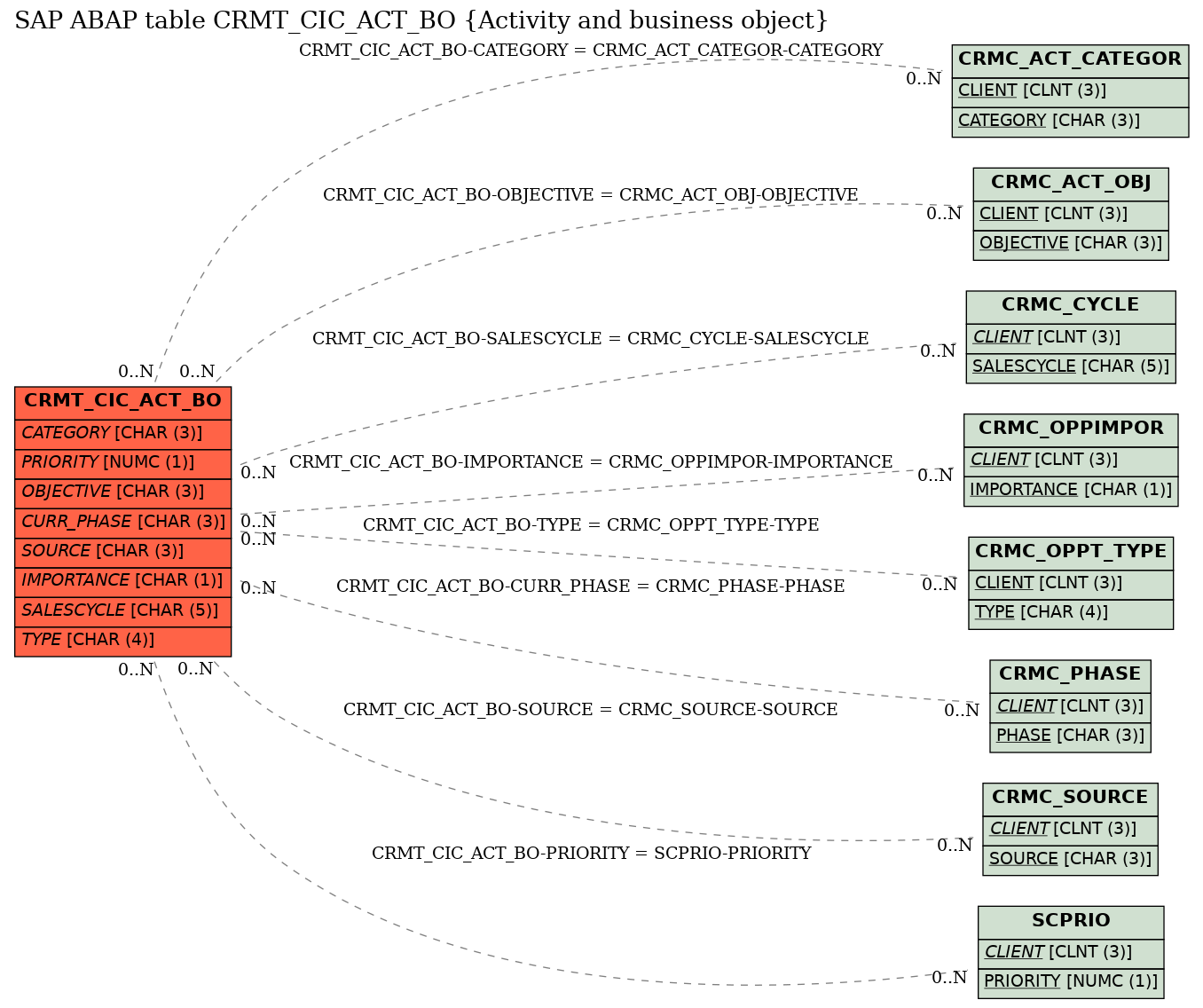

Structure	CRMT_CIC_ACT_BO	Table Relationship Diagram
Short Description	Activity and business object

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Line for crmt_rprtng_inboxlist_ta
2	.INCLUDE	☐				0	0	One Order: Key Fields
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	STAT	☐	J_STATUS	J_STATUS	CHAR	5	0	Object status
6	.INCLUDE	☐				0	0	Structure of an Activity - External Fields
7	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
8	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
9	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
10	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
11	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
12	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
13	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
14	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
15	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
16	.INCLUDE	☐				0	0	EEW Include
17	ACTIVITY_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
18	.INCLUDE	☐				0	0
19	.INCLUDE	☐				0	0	Header Data Opportunity - Structure of External Fields
20	EXP_REVENUE	☐	CRMT_REPORT_EXP_REVENUE	WERTV8	CURR	15	2	Expected Sales Revenue
21	BUDGET_BP	☐	CRMT_BUDGET_BP	WERTV8	CURR	15	2	Budget Prospect
22	STARTDATE	☐	CRMT_STARTDATE	DATUM	DATS	8	0	Opportunity Start Date
23	EXPECT_END	☐	CRMT_EXPECT_END	DATUM	DATS	8	0	Expected Closing Date
24	CURR_PHASE	☐	CRMT_CURR_PHASE	CRM_PHASE	CHAR	3	0	Sales Stage	CRMC_PHASE
25	PHASE_SINCE	☐	CRMT_PHASE_SINCE	DATUM	DATS	8	0	Sales Stage Since
26	PROBABILITY	☐	CRMT_PROBABILITY	CRM_PROBABILITY	NUMC	3	0	Chance of Success
27	FORECAST_REL	☐	CRMT_FORECAST_REL	CRM_FORECAST_REL	CHAR	1	0	Forecast Relevance
28	SOURCE	☐	CRMT_SOURCE	CRM_SOURCE	CHAR	3	0	Origin of Opportunity/Lead	CRMC_SOURCE
29	IMPORTANCE	☐	CRMT_IMPORTANCE	CRM_IMPORTANCE	CHAR	1	0	Opportunity/Lead Priority	CRMC_OPPIMPOR
30	SALESCYCLE	☐	CRMT_SALESCYCLE	CRM_SALESCYCLE	CHAR	5	0	Sales Cycle	CRMC_CYCLE
31	ADDRESS_NO	☐	CRMT_OPP_ADDRESS	AD_ADDRNUM	CHAR	10	0	Opportunity Address	*
32	TYPE	☐	CRMT_OPPORT_TYPE	CRM_OPPORT_TYPE	CHAR	4	0	Opportunity Type	CRMC_OPPT_TYPE
33	STATUS_SINCE	☐	CRMT_STATUS_SINCE	DATUM	DATS	8	0	Status Since
34	SYS_PROBABILITY	☐	CRMT_SYSTEM_PROBABILITY	CRM_SYSTEM_PROBABILITY	NUMC	3	0	Chance of Success of Opportunity - Calculated by System
35	DESCRIPTION_OPP	☐	CRMT_DESCRIPTION_OPP	TEXT40	CHAR	40	0	Opportunity Description
36	DESCR_OPP_UC	☐	CRMT_DESCRIPTION_OPP_UC	TEXT40	CHAR	40	0	Opportunity Description in UC
37	CUSTOMER_STATUS	☐	CRMT_CUSTSTAT	CRM_CUSTSTAT	CHAR	4	0	Design Registration Project Phase	*
38	.INCLUDE	☐				0	0	EEW Include
39	OPPORT_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
40	.INCLUDE	☐				0	0
41	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
42	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
43	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
44	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
45	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
46	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
47	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
48	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
49	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
50	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
51	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
52	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
53	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
54	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
55	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
56	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
57	.INCLUDE	☐				0	0	EEW Extension
58	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
59	.INCLUDE	☐				0	0
60	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
61	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
62	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
63	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
64	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
65	PROCESS_TYPE_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
66	OPPTYPE_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
67	TASK	☐	CRMT_TASK	CRM_BOOLEAN	CHAR	1	0	Indicator: Activity is a Task
68	CATEGORY_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
69	PRIORITY_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
70	OBJECTIVE_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
71	DIRECTION_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
72	RESULT_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
73	PARTNER_FCT	☐	CRMT_RPRTNG_MYFUNCTION	CHAR8	CHAR	8	0	Function That a Processor Has in a Sales Document
74	FCT_DESCRIPTION	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
75	FCT_SHORT_DESC	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
76	MAIN_BP_1_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
77	MAIN_BP_1_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
78	MAIN_BP_1	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
79	MAIN_BP_1_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
80	MAIN_BP_1_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
81	MAIN_BP_1_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
82	MAIN_BP_2_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
83	MAIN_BP_2_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
84	MAIN_BP_2	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
85	MAIN_BP_2_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
86	MAIN_BP_2_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
87	MAIN_BP_2_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
88	STATUS_USER_LONG	☐	CRMT_REPORT_STATUS_UL	CHAR100	CHAR	100	0	Longform User Status
89	STATUS_USER	☐	CRMT_REPORT_STATUS_U	CHAR40	CHAR	40	0	Shortform Status
90	STATUS_LONG	☐	CRMT_REPORT_STATUS_L	CHAR100	CHAR	100	0	Longform Status
91	STATUS	☐	CRMT_REPORT_STATUS	CHAR40	CHAR	40	0	Status
92	PLANNEDDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
93	PLANNEDDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
94	PLANNEDZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
95	PLANNEDTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
96	PLANNEDTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
97	ACTUALDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
98	ACTUALDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
99	ACTUALZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
100	ACTUALTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
101	ACTUALTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
102	PROPOSEDDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
103	PROPOSEDDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
104	PROPOSEDZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
105	PROPOSEDTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
106	PROPOSEDTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
107	PHASE_DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
108	PO_NUMBER_SOLD	☐	CRMT_PO_NUMBER_SOLD	TEXT35	CHAR	35	0	Sold-To Party's External Reference Number
109	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
110	NET_VALUE	☐	CRMT_NET_VALUE_CUM	WERTV8	CURR	15	2	Total Net Value of Document in Document Currency
111	OBJECT_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
112	OBJECT_TYPE_TXT	☐	SAEOBJTEXT	SADC40	CHAR	40	0	Object text for language-dependent table
113	BOTAB	☐	CRMT_CIC_BO_LIST		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_CIC_ACT_BO	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
2	CRMT_CIC_ACT_BO	CURR_PHASE	CRMC_PHASE	PHASE
3	CRMT_CIC_ACT_BO	IMPORTANCE	CRMC_OPPIMPOR	IMPORTANCE
4	CRMT_CIC_ACT_BO	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE
5	CRMT_CIC_ACT_BO	PRIORITY	SCPRIO	PRIORITY
6	CRMT_CIC_ACT_BO	SALESCYCLE	CRMC_CYCLE	SALESCYCLE
7	CRMT_CIC_ACT_BO	SOURCE	CRMC_SOURCE	SOURCE
8	CRMT_CIC_ACT_BO	TYPE	CRMC_OPPT_TYPE	TYPE

History

Last changed by/on	SAP	20140802
SAP Release Created in
